概览
描述

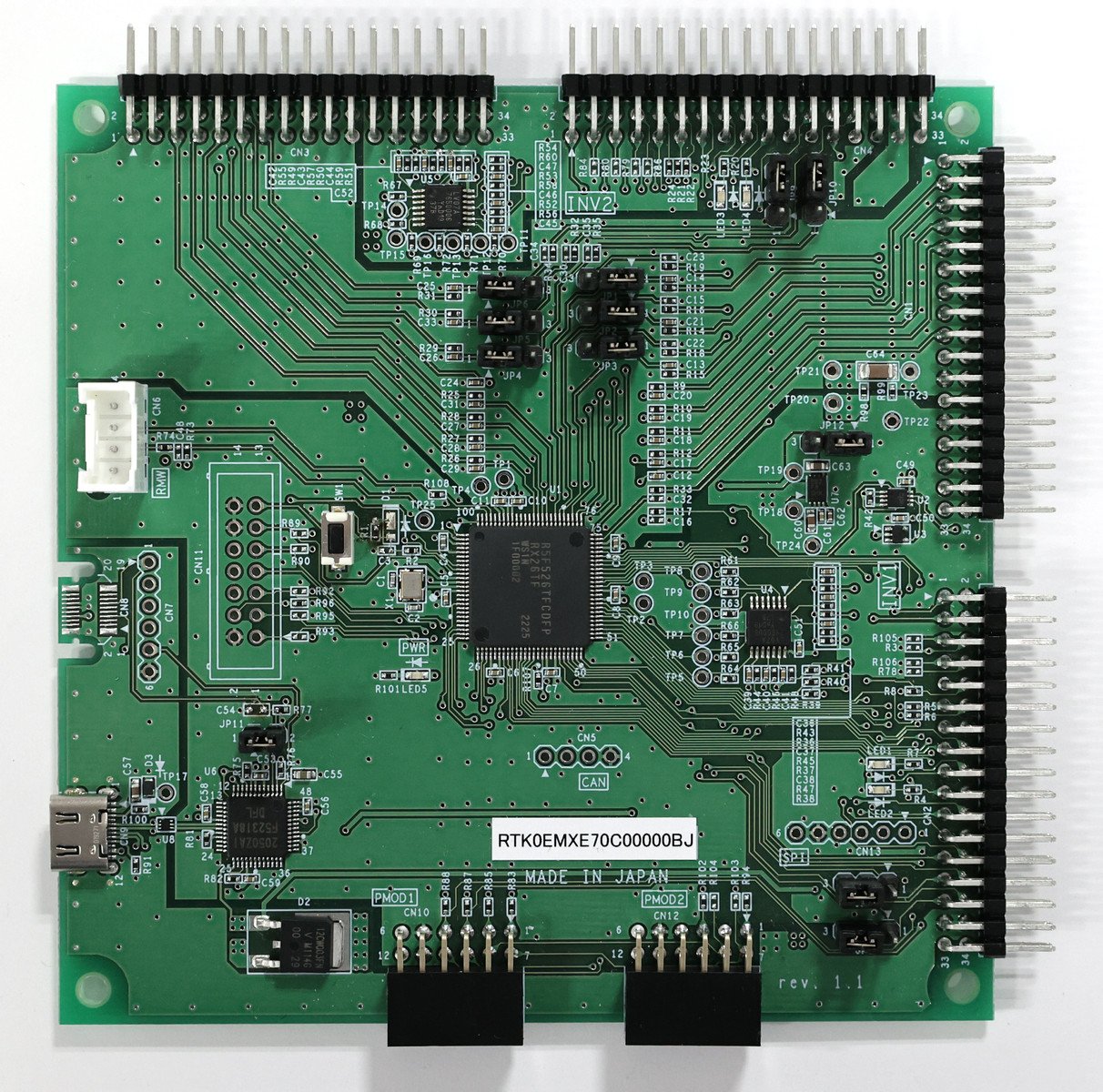

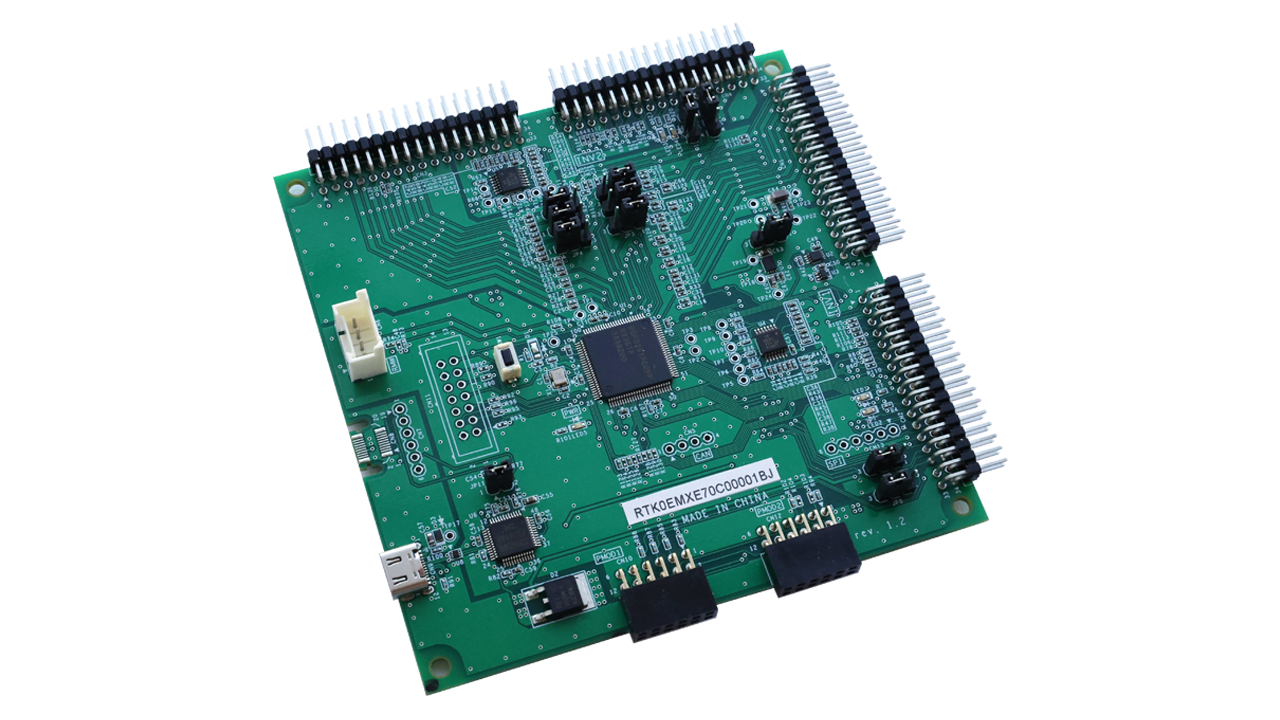

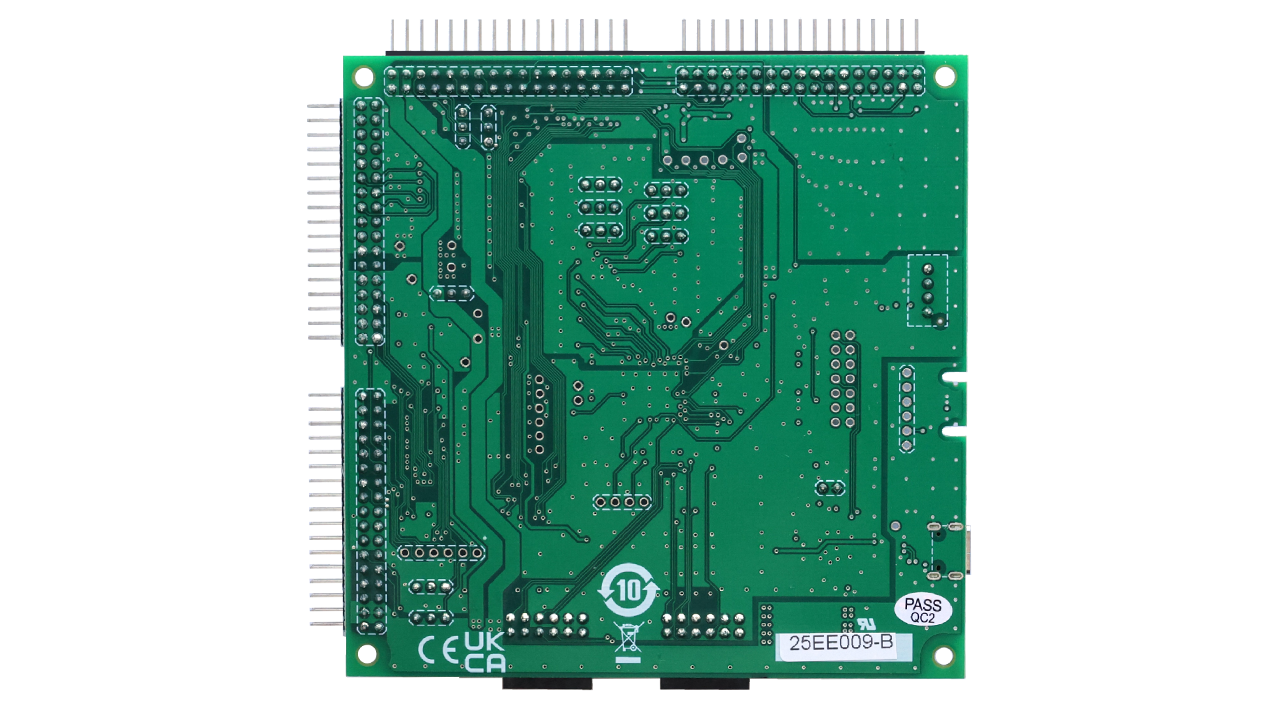

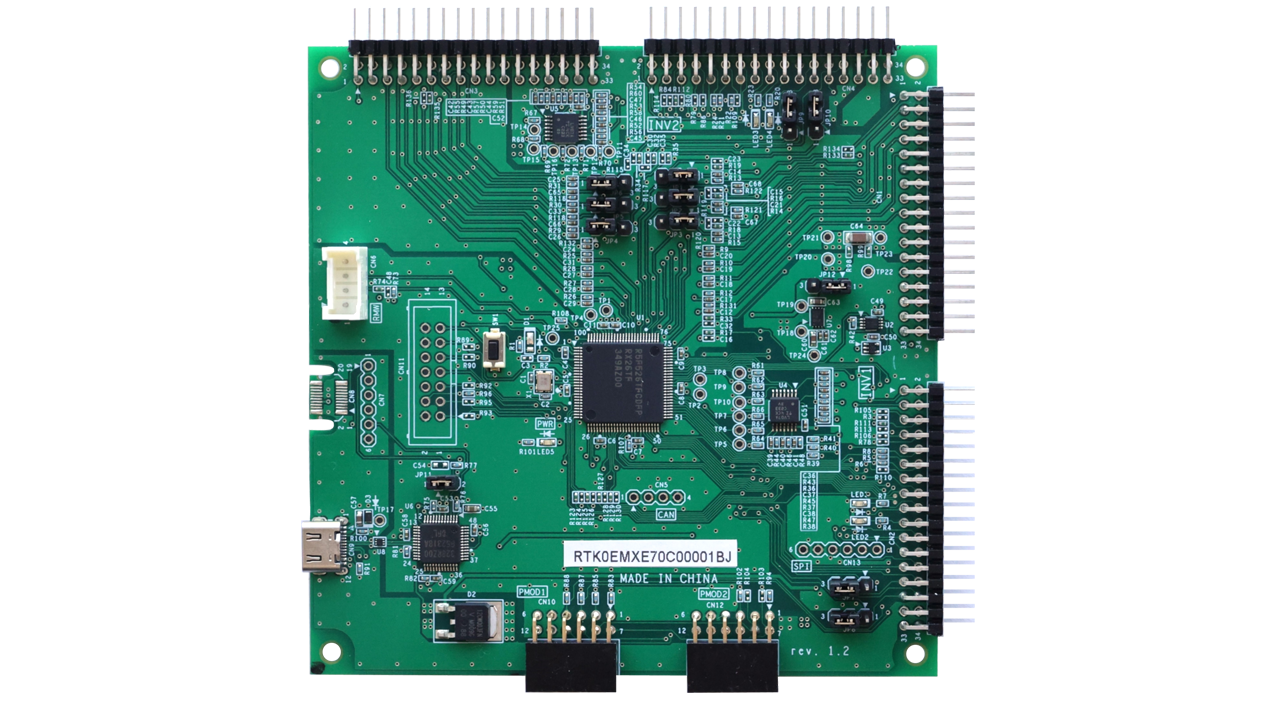

本产品是配备RX26T 的电机控制CPU板。 通过与对应的逆变板组合使用，可以简单地实现使用RX26T的电机控制。
通过将 PC 和 CPU 板进行电气隔离的通信板，实现安全的电机控制评估和调试工作。
特性
- 可适用电机控制开发支持工具Renesas Motor Workbench。
- 配备板载调试器电路
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 手册 - 开发工具 | PDF 751 KB 日本語 | |
| EOL 通告 | PDF 221 KB | |
| 应用说明 |
PDF
3.00 MB
日本語
This sample program provides a vector control (Hall Field Oriented Control, FOC) function that uses a threephase permanent magnet synchronous motor (PM motor) equipped with a Hall sensor as a position, speed and rotary direction detector over the whole speed range from standstill to low, middle, and high speed. Hall sensor can be viewed as a low-resolution encoder.
|
|
| 应用说明 |
PDF
5.07 MB
日本語
Provide various control algorithms primarily featuring PM sensorless vector control functions and flying start functions for RA family/RX family CPU boards and the Renesas Electronics inverter MCI-LV-1.
|
|
| 应用说明 |
PDF
3.21 MB
日本語
This sample project enables vector control of a permanent magnet synchronous motor (PMSM). Current detection for vector control supports both 2-shunt and 1-shunt resistor methods.
|
|
| 应用说明 |
PDF
3.47 MB
日本語
This sample program enables vector control of an encoder-equipped permanent magnet synchronous motor (PMSM).
|
|
| 应用说明 |
PDF
2.26 MB
日本語
This sample program support Renesas CPU boards (MCB-RX26 Type A and MCB-RA6T2) and industrial high voltage inverter boards (MCI-HV-2-1PH )and MCI-HV-2-3PH). It provides the functions such as V/f control, torque boost compensations, Dead-time (voltage error) compensation, sample delay compensation, Control of the relay for connecting the inrush-current prevention resistor, Protection against overvoltage and overcurrent, detection of overheating in the inverter.
|
|
| 应用说明 |
PDF
3.95 MB
日本語
Provide the various control algorithms for the RA6T2 and RX26T CPU boards and MCI-HV-1 200-VAC high-voltage inverter from Renesas. These algorithms are mainly for implementing a sensorless vector control function for permanent magnet motors (PM) and a PFC (power factor correction) function for use in home appliances.
|
|
| 应用说明 |
PDF
2.77 MB
日本語
This sample program provides a software that can drive 3-phase interior permanent magnet (IPM) motor using sensorless vector control (Sensorless FOC) over the whole speed range from standstill to low, middle, and high speed ranges.
|
|
| 应用说明 |
PDF
2.32 MB
日本語
AI 生成的摘要:
This sample program enables vector control of two permanent magnet synchronous motors (PMSM) using a Renesas RX26T microcontroller.
|
|
| PCB 设计文件 | MCB-RX26T Type A Design Package
|
|
| 应用说明 |
PDF
3.82 MB
AI 生成的摘要:
Azure RTOS sample projects demonstrate how to develop applications using ThreadX, FileX, GUIX, NetX Duo, and USBX on Renesas RX family microcontrollers with e2 studio or IAR Embedded Workbench. The projects support various RX devices and include examples for IoT connectivity, low power operation, and secure bootloader integration. Microsoft has contributed Azure RTOS to open source under Eclipse ThreadX, discontinuing official updates. Renesas discontinues the RYZ014A LTE module, recommending Sequans GM01Q as a compatible replacement. Development tools and supported sample projects vary by device, with detailed setup instructions and sample descriptions provided.
|
|
|
12 项目
|
||
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| QE: Tools for Particular Applications A group of utilities which extends integrated development environment (Tools for Particular Applications: USB, TCP/IP, Bluetooth® low energy, Camera, LCD, Capacitive Touch Sensors, and Current Consumption Tuning etc.)
|
Solution Toolkit | 瑞萨电子 |
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | 瑞萨电子 |
2 项目
|
||
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 | Hall sensor vector control of PM motors Rev.1.10
[Software=RX Smart Configurator|v2.25.0],[Toolchains=CC-RX|V3.07.00]
ZIP
11.41 MB
日本語
应用:
工业
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+ for CC, e2 studio
This sample program provides a vector control (Hall Field Oriented Control, FOC) function that uses a threephase permanent magnet synchronous motor (PM motor) equipped with a Hall sensor as a position, speed and rotary direction detector over the whole speed range from standstill to low, middle, and high speed. Hall sensor can be viewed as a low-resolution encoder.
|
|
| 示例代码 | Sensorless Vector Control of PM Motor - Equipped with Flying Start (For MCK/MCB, RA Family/RX Family)
[Software=RA Flexible Software Package|v6.2.0],[Toolchains=CC-RX|V3.07.00;GNU Arm Embedded|13.2.1.arm-13-7]
ZIP
28.37 MB
日本語
Compiler:
CC-RX, GNU ARM Embedded
Function:
Application Example
IDE:
CS+ for CC, e2 studio
Provide various control algorithms primarily featuring PM sensorless vector control functions and flying start functions for RA family/RX family CPU boards and the Renesas Electronics inverter MCI-LV-1.
|
|
| 示例代码 | Sensorless Vector Control of a Permanent Magnet Synchronous Motor - For MCK Rev.1.20
[Software=RX Smart Configurator|v2.25.0],[Toolchains=CC-RX|V3.07.00]
ZIP
33.01 MB
日本語
应用:
工业
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+ for CC, e2 studio
This sample project enables vector control of a permanent magnet synchronous motor (PMSM) using a Renesas RX26T microcontroller. Current detection for vector control supports both 2-shunt and 1-shunt resistor methods.
|
|
| 示例代码 | Vector Control for Permanent Magnet Synchronous Motor with Encoder - For MCK Rev.1.20
[Software=RX Smart Configurator|v2.25.0],[Toolchains=CC-RX|V3.07.00]
ZIP
23.96 MB
日本語
应用:
工业
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+ for CC, e2 studio
This sample program enables vector control of an encoder-equipped permanent magnet synchronous motor (PMSM).
|
|
| 示例代码 | IM V/f Control by High-Voltage Inverter
[Software=RA Flexible Software Package|v6.1.0],[Toolchains=CC-RX|V3.07.00;GNU Arm Embedded|13.2.1.arm-13-7]
ZIP
12.33 MB
日本語
应用:
工业, 电机控制
Compiler:
CC-RX, GNU ARM Embedded
Function:
Application Example
IDE:
e2 studio
This sample program support Renesas CPU boards (MCB-RX26 Type A and MCB-RA6T2) and industrial high voltage inverter boards (MCI-HV-2-1PH )and MCI-HV-2-3PH). It provides the functions such as V/f control, torque boost compensations, Dead-time (voltage error) compensation, sample delay compensation, Control of the relay for connecting the inrush-current prevention resistor, Protection against overvoltage and overcurrent, detection of overheating in the inverter.
|
|
| 示例代码 | Sensorless Vector Control of PM Motor by High-Voltage Inverter (For MCI-HV-1, RA/RX Family) - Sample Code
[Software=RA Flexible Software Package|v5.4.0],[Toolchains=CC-RX|V3.06.00;GNU Arm Embedded|13.2.1.arm-13-7]
ZIP
56.61 MB
日本語
应用:
电机驱动
Compiler:
CC-RX, GNU ARM Embedded
Function:
Application Example
IDE:
e2 studio
Provide the various control algorithms for the RA6T2 and RX26T CPU boards and MCI-HV-1 200-VAC high-voltage inverter from Renesas. These algorithms are mainly for implementing a sensorless vector control function for permanent magnet motors (PM) and a PFC (power factor correction) function for use in home appliances.
|
|
| 示例代码 | Sensorless Vector Control for IPMSM over the Whole Speed Range for MCK Rev.1.11
[Software=RX Smart Configurator|v2.25.0],[Toolchains=CC-RX|V3.07.00]
ZIP
8.25 MB
日本語
应用:
工业
Compiler:
CC-RX
Function:
Application Example
IDE:
e2 studio
This sample program provides a software that can drive 3-phase interior permanent magnet (IPM) motor using sensorless vector control (Sensorless FOC) over the whole speed range from standstill to low, middle, and high speed ranges.
|
|
| 示例代码 | Sensorless Vector Control of a Permanent Magnet Synchronous Motor - 2motor, For MCK Rev.1.01
[Software=RX Smart Configurator|v2.25.0],[Toolchains=CC-RX|V3.07.00]
ZIP
10.34 MB
日本語
应用:
工业
Compiler:
CC-RX
Function:
Application Example
IDE:
e2 studio
This sample program enables vector control of two permanent magnet synchronous motors (PMSM) using a Renesas RX26T microcontroller.
|
|
8 项目
|
||
相关评估板和套件
开发板与套件
开发
MCK-RX26T
有效
Renesas Flexible Motor Control Kit for RX26T MCU Group
MCK-RX26T 是一款便于评估使用永磁同步电机（无刷直流电机）的电机控制的开发套件。
通过使用本产品以及可从网站下载的样例程序和QE for Motor，即刻开始使用RX26T进行电机控制评估。
开发
MCI-LV-1
有效
Renesas Flexible Motor Control Inverter Board – Low Voltage 48V/10A for Three-Phase BLDC/PMSM Motor
MCI-LV-1 是一款便于评估使用永磁同步电机（无刷直流电机）的电机控制的开发套件。 将其与兼容的 CPU 板结合使用，即刻开始电机控制评估。
开发
MCI-HV-2-1PH
有效
Flexible Motor Control Inverter Board for Three-Phase BLDC/Induction Motor for Industrial Application, 200-240VAC 1PH Input
An inverter board that allows users to evaluate motor control with ease using a high-voltage brushless DC (BLDC)/induction motor. By combining with a compatible CPU board, users can immediately start evaluating motor control.
This product supports only 1-phase AC200 - 240V 50Hz/60Hz input... 阅读详情
开发
MCI-HV-1
有效
Renesas Flexible Motor Control Inverter Board for 100V/200V Three-Phase BLDC/Induction Motor
这是一款逆变器板，使用高压（100V/200V）BLDC/感应电机便可轻松评估电机控制。 与兼容的 CPU 板结合使用，便可立即开始评估电机控制。
支持的CPU板：MCB-RA6T2 和 MCB-RX26T-TYPE-A
支持的通信板：MC-COM
开发
MCI-HV-2-3PH
有效
Flexible Motor Control Inverter Board for Three-Phase BLDC/Induction Motor for Industrial Application, 200-240VAC 3PH Input
An inverter board that allows users to evaluate motor control using a high-voltage brushless DC (BLDC)/Induction motor at ease. By combining with a compatible CPU board, users can immediately start the evaluation of motor control.
This product supports only 3-phase AC200 - 240V 50Hz/60Hz of input... 阅读详情
产品选项
| 器件号 | 状态 | 库存 | 预算价格（美元） | Description |
|---|---|---|---|---|
| RTK0EMXE70C00001BJ | Active | 缺货 | 1u | $211.76 | |
| RTK0EMXE70C00000BJ | Last Time Buy | 有库存 | 1u | $211.76 | MCB-RX26T Type A / CPU Board for RX26T MCU Group |
