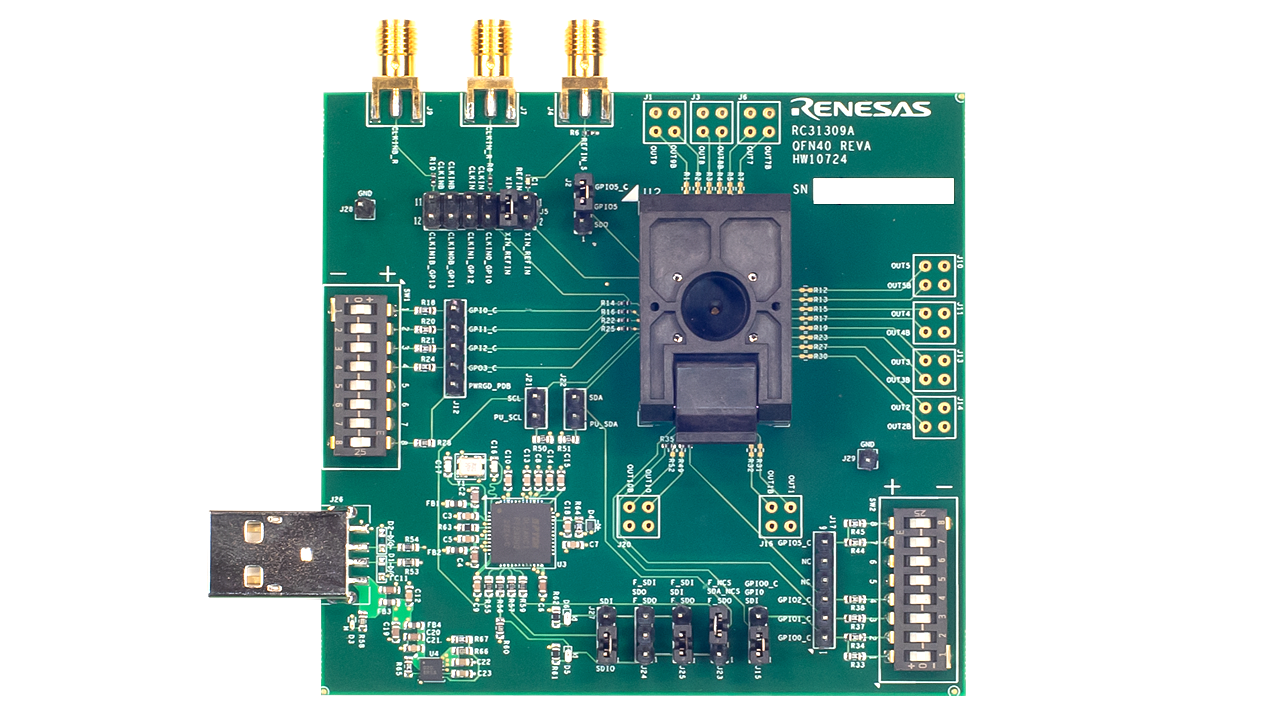

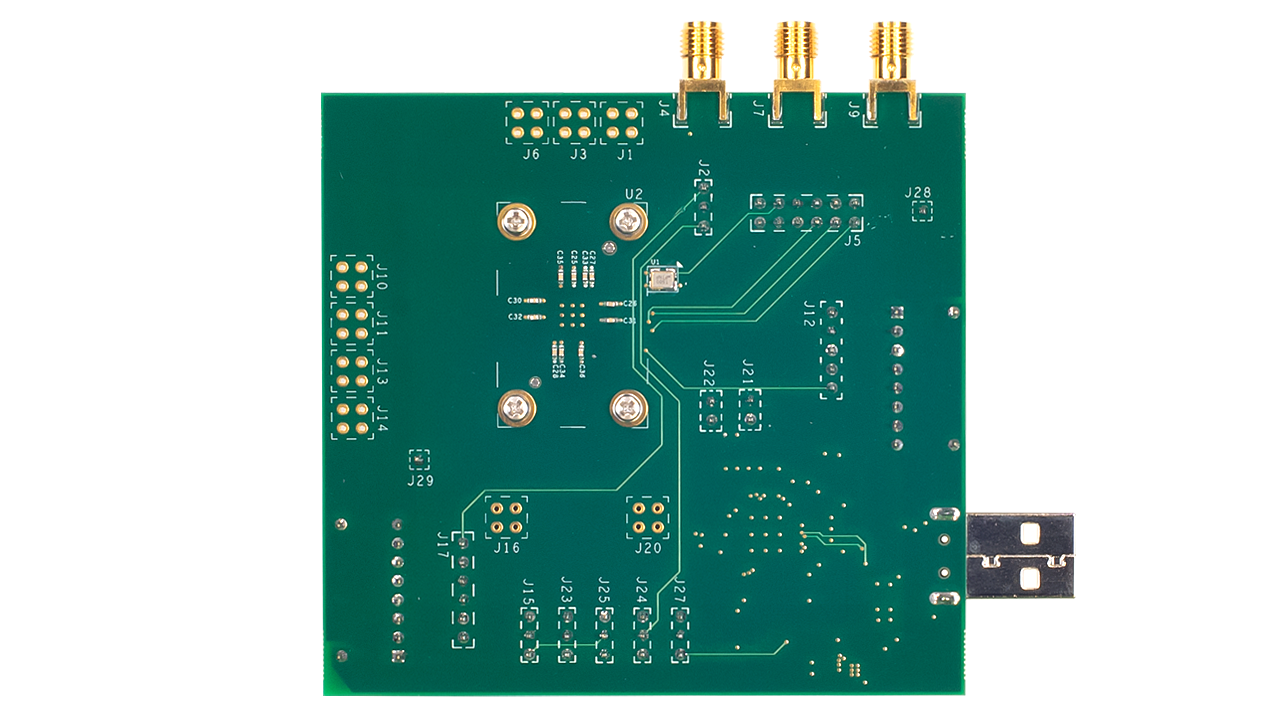

RC31309 VersaClock 8 可编程时钟编程板

Provides setup and operation guidance for the RC31309A VersaClock® 8 Programmer Board Kit, including hardware configuration, device placement, jumper and DIP switch settings, serial interface selection, and RICBox software integration. Also covers OTP memory programming procedures, board features, schematics, bill of materials, and ordering information to support device configuration and production programming workflows.

Design files for the RC31309A programmable clock synthesizer and jitter attenuator include PCB implementation files and schematic symbols, providing the data required to incorporate the IC into board design and layout.
