The USB target device class drivers consist of USB basic firmware and firmware for the appropriate USB class. You can use these drivers and firmware with our MCU USB IP to jump start your development.
Renesas offers a wide network of partners to help support your development process. Please contact a Renesas sales office if necessary. Please check the USB overview for more details.
特性
- USB sample firmware is available for various USB applications. [Learn More]
- USB Device Class Firmware (Host/Peripheral)
- USB Basic Firmware (Host/Peripheral)
- For non-OS/For Real-time OS
目标设备
Additional Details
System Configuration and Functions

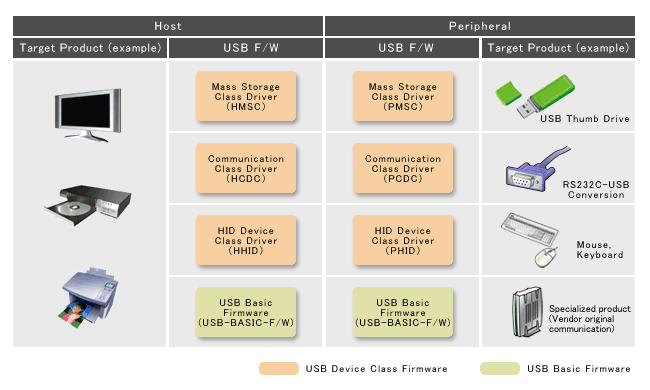

Layer configuration of USB Driver
Firmware and Application Notes
Download: Refer to the Target Devices (MCU/MPU) and Product Lineup. Please contact a Renesas sales office if you need any other USB sample drivers.
Target Devices (MCU/MPU) and Product Lineup
Target integrated development environments (IDE) are as follows.
| Renesas Electronics | |
图像
| |
图像
: CS+ | |
图像
| |
图像
: PM+ | |
| Partners | |
图像
: IAR Embedded Workbench | |
图像
: Green Hills Software MULTI | |
图像
: Arm DS-5 Development Studio | |
USB MCU
For non-OS
Host
| Target USB MCU/IDE * | Host | |||||
|---|---|---|---|---|---|---|
| USB Basic Firmware (USB-BASIC-F/W) | USB Device Class Firmware | USB F/W Updater | ||||
| Mass Storage (HMSC) | Comm. (HCDC) | HID (HHID) | ||||
| RL78 | RL78/G1C 图像
图像
图像
| lens | — | lens | lens | — |
| RX | RX111, RX113, RX231, RX23W 图像
| (Note8) | lens (Note4) (Note8) | lens (Note8) | lens (Note8) | lens |
RX62x, RX63T, RX63N/RX631 图像
| (Note2) | lens (Note4) | lens | lens | lens | |
RX64M, RX65N/RX651, RX66N, RX66T, RX71M, RX72M, RX72N, RX72T 图像
| (Note8) | lens (Note4) (Note8) | lens (Note8) | lens (Note8) | lens | |
| RZ | RZ/T1 图像
图像
图像
| (Note2) | lens | lens | lens | — |
RZ/A1H 图像
图像
图像
| (Note2) | lens | lens | lens | — | |
RZ/A2M 图像
| (Note2) | lens (Note9) | — | lens (Note9) | — | |
| R8C | R8C/3xU 图像
| lens | lens | lens | lens | — |
| V850 | V850E2/ML4 图像
| lens (Note7) | lens (Note4) | lens | — | — |
| SuperH | SH7700 图像
| lens | — | — | — | — |
lensSample (free of charge) | — Not Available
* We offer a USB Driver with an application program on our website. Refer to Firmware Integration Technology (FIT) for details of FIT module.
Peripheral
| Target USB MCU/IDE * | Peripheral | |||||||
|---|---|---|---|---|---|---|---|---|
| USB Basic Firmware (USB-BASIC-F/W) | USB Device Class Firmware | LibUSB | USB F/W Updater | |||||
| Mass Storage (PMSC) | Comm. (PCDC) | HID (PHID) | Printer | |||||
| RL78 | RL78/G1C, RL78/L1C 图像
图像
图像
| lens | lens | lens | lens | — | — | lens (Note3) |
| RX | RX111, RX113, RX231, RX23W 图像
| (Note8) | lens (Note8) | lens (Note8) | lens (Note8) | — | — | lens |
RX62x, RX630/63T, RX63N/RX631 图像
| (Note2) | lens | lens | lens | — | lens | lens | |
RX64M, RX65N/RX651, RX66N, RX66T, RX71M, RX72M, RX72N, RX72T 图像
| (Note8) | lens (Note8) | lens (Note8) | lens (Note8) | — | — | lens | |
| RZ | RZ/T1 图像
图像
图像
| (Note2) | lens | lens | — | — | — | — |
RZ/A1H 图像
图像
图像
| (Note2) | lens | lens | lens | — | — | — | |
RZ/A2M 图像
| (Note2) | — | lens (Note9) | — | — | — | — | |
| R8C | R8C/3xU,R8C/3xK 图像
| lens | lens | lens | lens | |||
| V850 | V850ES/Jx3-H/U 图像
| lens (Note2) | lens | lens | lens | lens | lens | |
V850ES/Jx3-E/L 图像
| lens (Note2) | lens | lens | lens | — | — | lens | |
V850E2/MN4 图像
图像
图像
| lens (Note2) | lens | lens | lens | — | — | — | |
V850E/Ix4-H 图像
| lens (Note2) | — | lens | — | — | — | — | |
V850E2/ML4 图像
| lens (Note2) | lens (Note5) lens (Note6) | lens (Note5) | — | — | lens | — | |
| SuperH | SH7280 图像
| lens (Note2) | lens | lens | — | — | — | — |
SH7216 图像
| lens (Note2) | lens | lens | lens | lens | lens | lens | |
SH7700 图像
| lens (Note2) | lens | lens | — | lens | — | — | |
| H8SX | H8SX/1600 图像
| lens (Note2) | lens | lens | — | lens | — | — |
| H8S | H8S/2200,H8S/2400 图像
| lens (Note2) | lens | lens | lens | lens | — | — |
lensSample (free of charge) | — Not Available
* We offer a USB Driver with an application program on our website. Refer to Firmware Integration Technology (FIT) for details of FIT module.
For Real-time OS
| Target USB MCU/IDE * | Host | Peripheral | |||||||
|---|---|---|---|---|---|---|---|---|---|
| USB Basic Firmware (USB-BASIC-F/W) | USB Device Class Firmware | USB Basic Firmware (USB-BASIC-F/W) | USB Device Class Firmware | ||||||
| Mass Storage (HMSC) | Comm. (HCDC) | HID (HHID) | Mass Storage (PMSC) | Comm. (PCDC) | HID (PHID) | ||||
| RX (Note1) | RX64M, RX65N/RX651, RX66N, RX66T, RX71M, RX72M, RX72N, RX72T 图像
| — | lens (Note4) (Note8) | lens (Note8) | lens (Note8) | — | lens (Note8) | lens (Note8) | lens (Note8) |
RX111, RX113, RX231, RX23W 图像
| (Note8) | lens (Note4) (Note8) | lens (Note8) | lens (Note8) | (Note8) | lens (Note8) | lens (Note8) | lens (Note8) | |
lensSample (free of charge) | — Not Available
* We offer a USB Driver with application program on our website. Refer to Firmware Integration Technology (FIT) for details of FIT module.
NOTES
- The supported Real-time OS are FreeRTOS and µITRON (RI600V4).
- USB Basic Firmware is included in each USB Device Class Firmware.
- Refer to RL78 microcontroller USB Peripheral Firmware Updater GNU/IAR Ver. Rev.1.10 (PDF) when using IAR / GCC compiler.
- Bundled simplified FAT file system.
- V850E2/ML4 Example of USB Multifunction Operation
- V850E2/ML4 MultiMediaCard Control Over USB Sample Program
- V850E2/ML4 USB Host Software (Support USB Hub)
- The FIT module compatible versions are available. Refer to Firmware Integration Technology (FIT) for details of FIT module.
- Bundled in the RZ/A2M Simple Applications Package
Partners
Renesas offers a wide network of partners to help support your development process. Please contact a Renesas sales office if necessary.
