入门级产品 200MHz Arm® Cortex®-M33，具有高性能和简化连接
跳转至页面部分：
Back to top
扩展 ECAD 模块
概览
描述
瑞萨电子 RA6E1 32 位微控制器 (MCU) 产品群使用支持 TrustZone 的高性能 Arm® Cortex®-M33 内核。 RA6E1 采用高效的 40nm 工艺，是 RA 产品家族微控制器的入门级产品，通过开放且灵活的生态系统（灵活配置软件包 (FSP)）提供支持。 RA6E1 适用于要求简化功能和集成连接性（包括以太网）的入门级物联网应用的需求，并提供790.75 CoreMark（3.95CoreMark/Mhz）的空前性能。

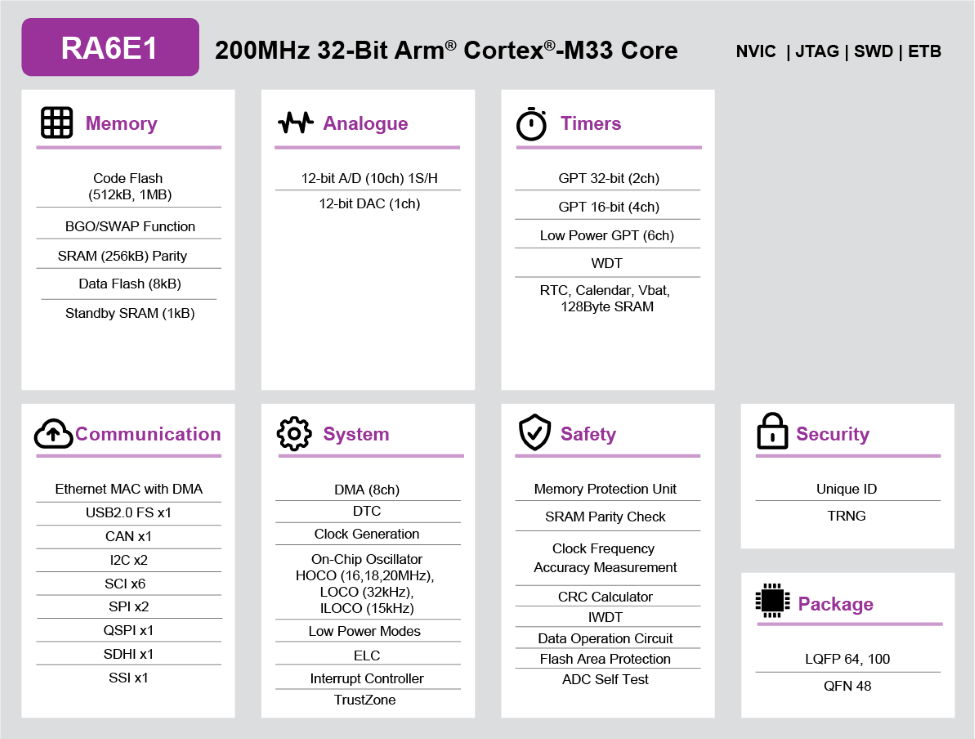

特性
- 支持 TrustZone 的 200MHz Arm Cortex-M33
- 512kB – 1MB 闪存和 256kB SRAM
- 8KB 数据闪存，提供与 EEPROM 类似的数据存储功能
- 1kB 休眠用 SRAM
- 从 48 引脚封装扩展至 100 引脚封装
- 支持 以太网MAC
- 全速 USB 2.0，支持主机模式和设备模式
- CAN 2.0B
- 四线 SPI
- 串行通信接口（UART、简单 SPI、简单 I2C）
- 独立SPI/I2C 多主接口
- SDHI 和 MMC
