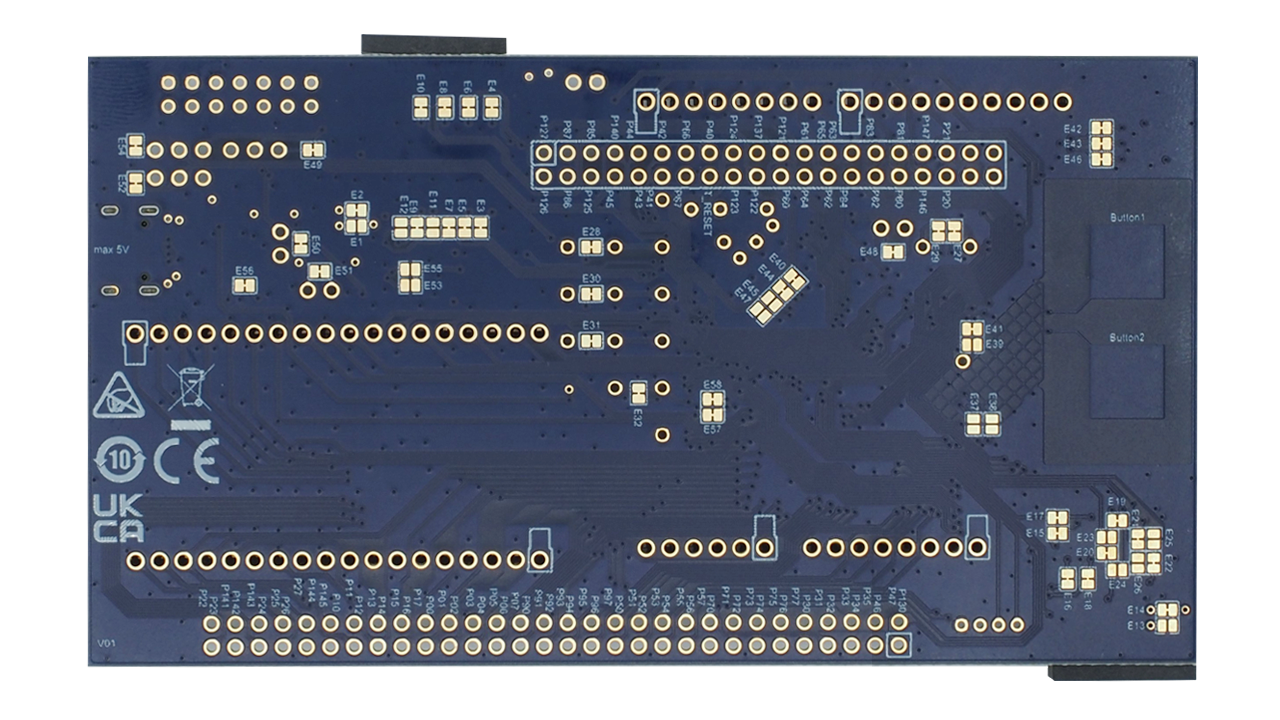

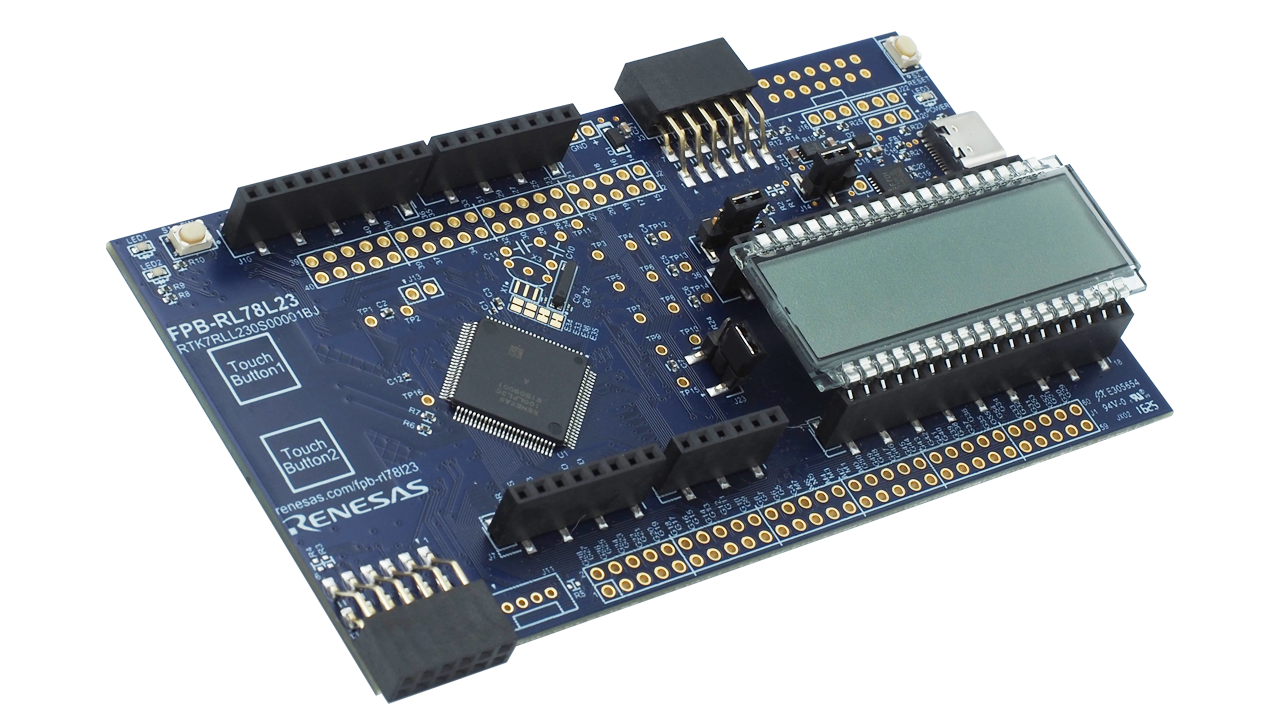

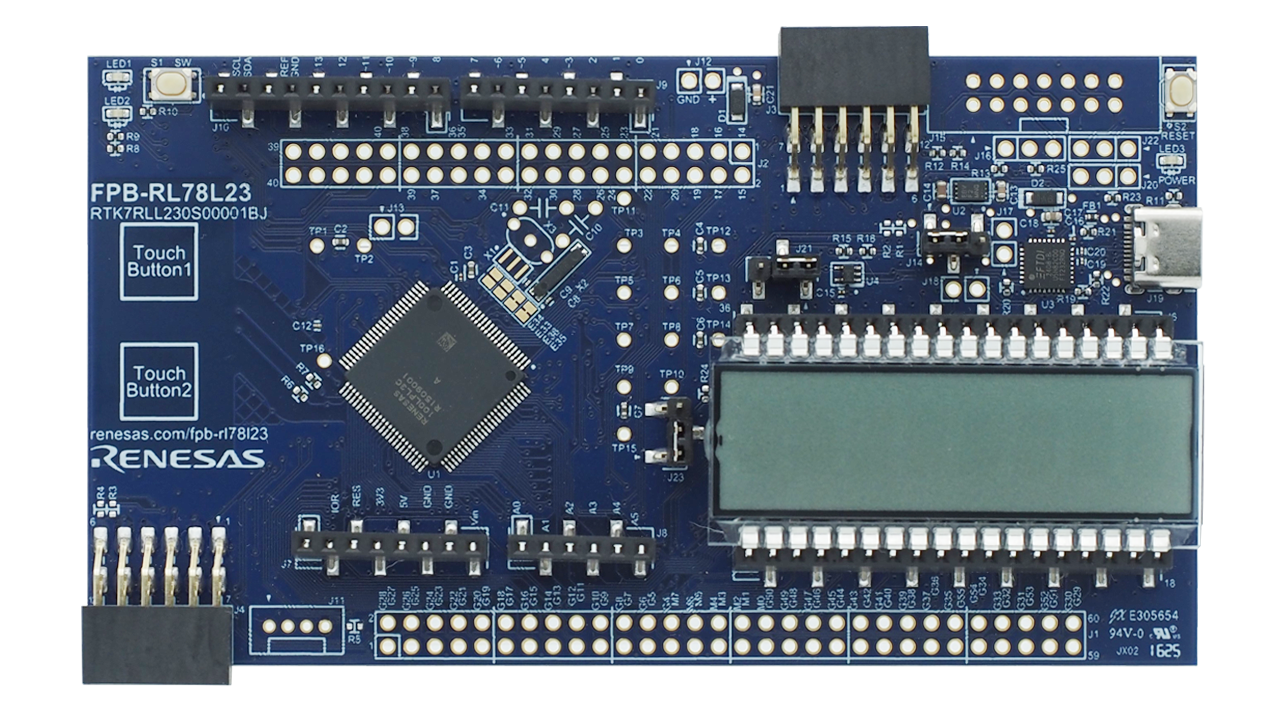

RL78/L23 快速原型开发板

学习使用 IAR Embedded Workbench 创建利用电容式触摸感应的应用程序所需的步骤。视频中使用配备触摸电极的RL78/G22快速原型开发板进行讲解。本视频由3部分构成, Part1介绍的是如何使用智能配置器创建项目的步骤。

This video demonstrates how to import sketches using the RL78 Arduino library into e² studio, as well as how to build and debug them. By debugging in e² studio, you can obtain detailed information and verify the internal workings of the library, which is not possible with the Arduino IDE.

Related Resources

• RL78/G23-64p FPB Arduino library
• e² studio
• RL78/G23-64p Fast Prototyping Board

学习使用 IAR Embedded Workbench 创建利用电容式触摸感应的应用程序所需的步骤。视频中使用配备触摸电极的RL78/G22快速原型开发板进行讲解。本视频由3部分构成, Part2介绍的是创建触摸界面和调谐的步骤。

这个视频介绍了如何使用ChatGPT和RL78 Arduino兼容板进行AI编程，包括点亮7段LED、旋转电机和使用温湿度传感器进行感应等实际例子。即使是初学者也能轻松体验AI编程！

详细的步骤介绍:

使用Chat-GPT为RL78微控制器（Arduino）编写AI代码 | Renesas

相关产品: RL78/G23-64p FPB

相关资源: Quick Start Guide page (GitHub)

Disclaimer:

１. Informational Purposes Only: This video serves as a general guide to using ChatGPT/GPT-4 to write code for an Arduino RL78 evaluation board. Renesas does not guarantee the accuracy or completeness of the content provided.

２. Third-Party Rights Infringement: Note that code generated using ChatGPT/GPT-4 might potentially infringe third-party intellectual property rights. Renesas makes no representations or warranties that the use of ChatGPT/GPT-4 will not violate any third-party rights. Users are urged to exercise due diligence to ensure compliance with applicable laws and third-party rights.

３. No Liability: In no event shall Renesas be liable for any damages, data loss, or other adverse consequences that may occur as a result of using the information, code, techniques, or tools demonstrated in this video. You may want to apply industry standard static and dynamic code assessments as AI code has been recognized to possibly contain malware fragments as well as deriving other unwanted outcomes.

本视频介绍在 RL78/G23-64p 快速原型板上, 如何使用 Arduino IDE 2 运行草图。

相关资源：快速入门指南页面 (GitHub)

学习使用 IAR Embedded Workbench 创建利用电容式触摸感应的应用程序所需的步骤。视频中使用配备触摸电极的RL78/G22快速原型开发板进行讲解。本视频由3部分构成, Part3介绍的是监控触摸界面的步骤。

This video introduces RL78 LoRa®-based Solution.
It realizes a true low-power wireless IoT system by combination of the world's top-class low power RL78 microcontroller and LoRaWAN®

• RL78 LoRaWAN® Sensor Demo Tutorial | Renesas
• LoRa®-based Solutions | Renesas

This video will show you how to set up the RL78 LoRaWAN® Sensor Demo.
Using the RL78 / G23 and LoRaWAN® ecosystem, you can realize both the "LoRaWAN sensor network evaluation" and "IoT system construction using LoRaWAN" with minimal man-hours.

• RL78 LoRa®-based Solution | Renesas
• LoRa®-based Solutions | Renesas

This video will show the steps to connect and operate the RL78 Modbus evaluation environment for master and slave with sample software in the application note.
The evaluation environment uses Renesas' RL78/G22 Fast Prototyping Board and RS-485 Transceivers Evaluation Board.

RL78/G22 Modbus ASCII/RTU Application Note Rev.1.10 (ZIP | English, 日本語)

本视频介绍针对 RL78 系列的智能配置器。

• 智能配置器
