An inverter board that allows users to evaluate motor control using a high-voltage brushless DC (BLDC)/Induction motor at ease. By combining with a compatible CPU board, users can immediately start the evaluation of motor control.
This product supports only 3-phase AC200 - 240V 50Hz/60Hz of input voltage.

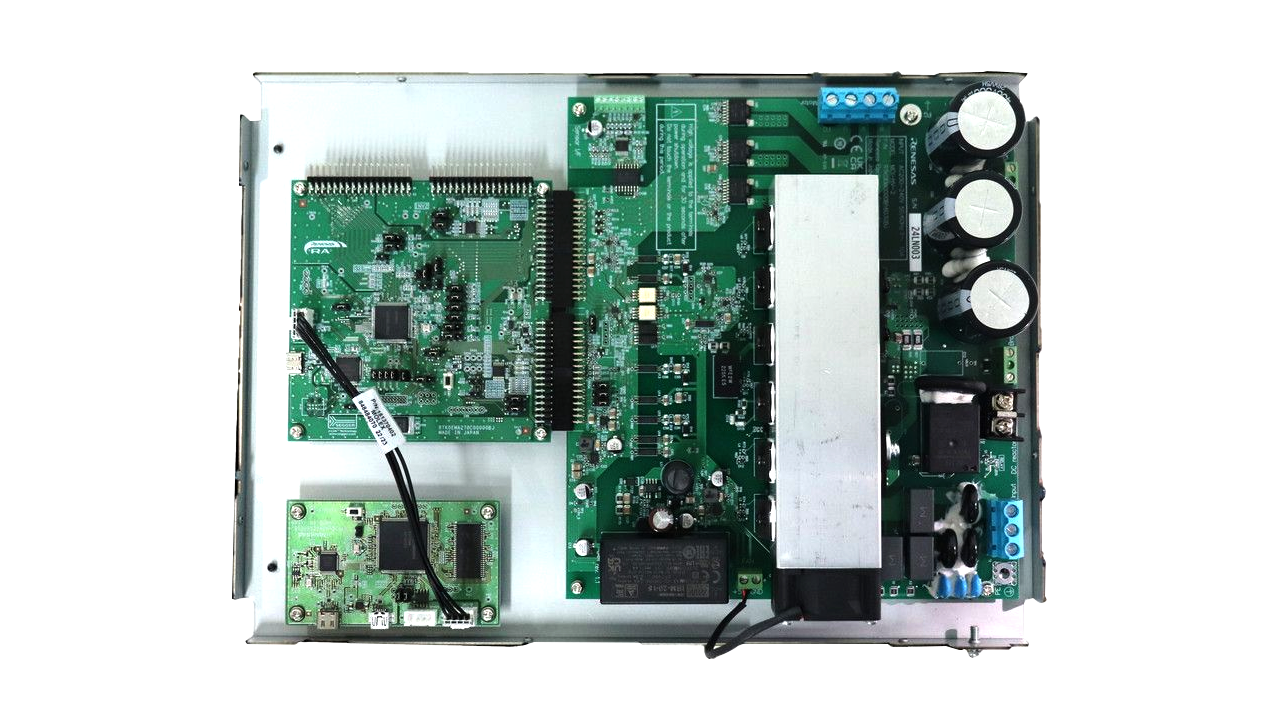

Supported CPU board : MCB-RA6T2 included in MCK-RA6T2
Supported communication board: MC-COM
特性
- Supports overcurrent detection, overvoltage protection, and over-temperature detection
- Reinforced isolation between high-voltage domain and user interface domain
- Supports 3-phase current in-line sensing
- Supports HALL sensor and encoder signal input with reinforced isolation
应用
设计和开发
软件与工具
样例程序
相关评估板和套件
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

支持
视频和培训

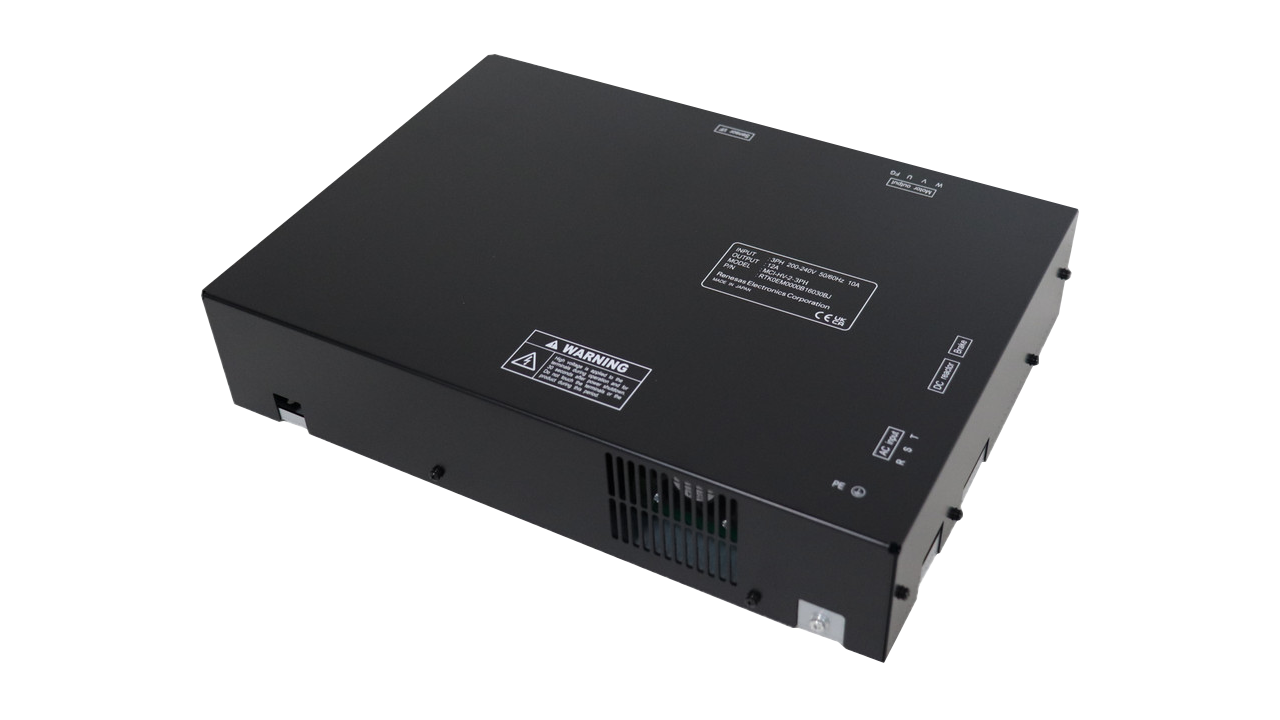

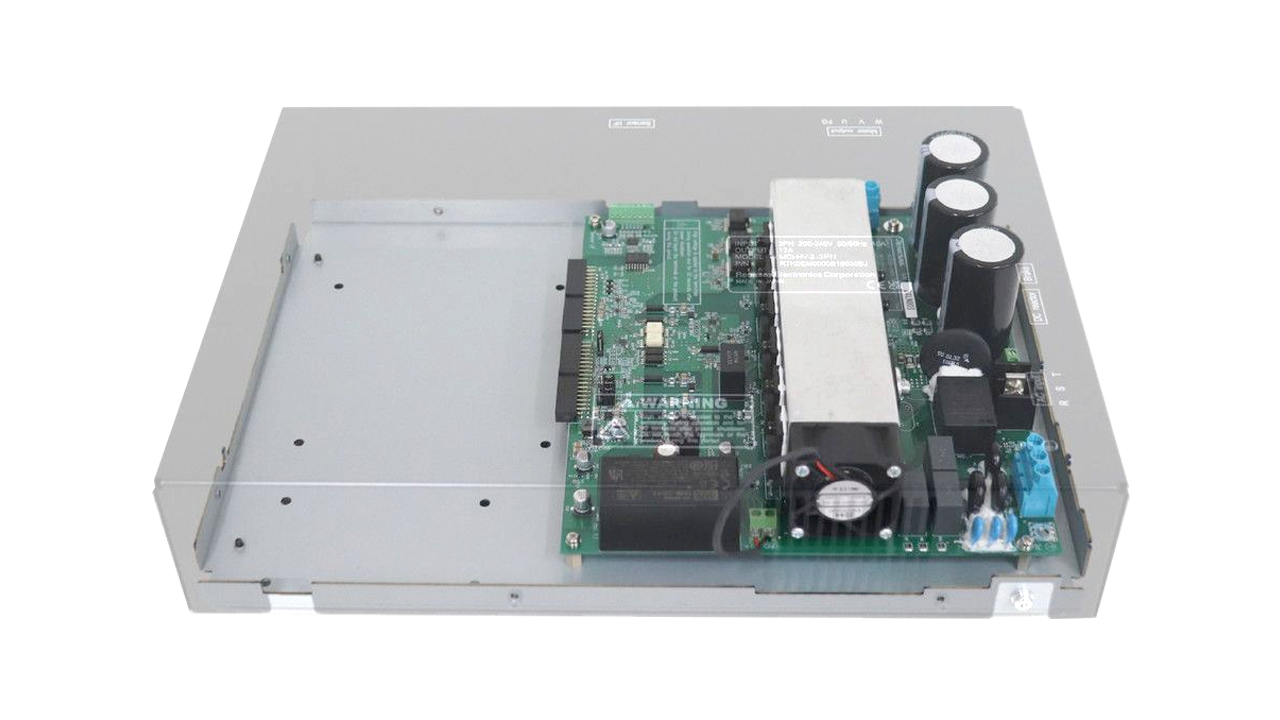

MCI-HV-2-3PH是一块逆变器板,与相应的CPU板结合使用,可用于控制工业应用中的三相BLDC/感应电机。它配备了保护罩和风扇,可以在安全环境下进行电机控制评估。
