MCK-RA2T1 是一款便于评估使用永磁同步电机(无刷直流电机)的电机控制的开发套件。 通过使用本产品以及可从网站下载的样例程序和 QE for Motor,即刻开始使用 RA2T1 进行电机控制评估。

特性

  • CPU 板搭载 RA2T1 作为电机控制 MCU。
  • 用于 3 相 BLDC 电机(额定功率 48V/10A)的变频器电路板
  • 用于 RA2T1 闪存编程的板载调试器
  • 支持单分流/三分流方式电流检测
  • 过载电流检测
  • 支持电机控制开发支持工具 “Renesas Motor Workbench”
  • 支持霍尔传感器、编码器和感应式位置传感器
  • 包含的组件

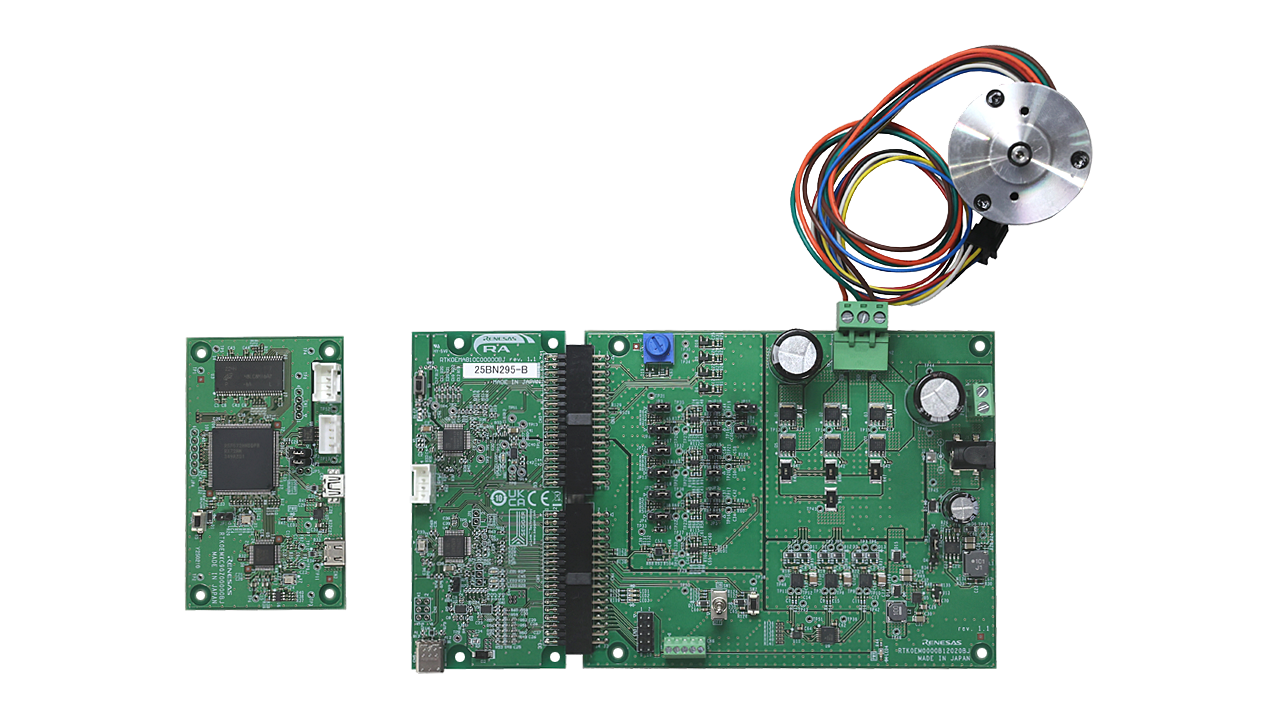

    • RA2T1 CPU 板 (MCB-RA2T1)
    • 变频器电路板 (MCI-LV-1)
    • 通信板 (MC-COM)
    • 永磁同步电机
    • 配件(电缆、支座等)

应用

文档

类型 文档标题 日期
手册 - 开发工具 PDF 1.62 MB 日本語
快速入门指南 PDF 1.49 MB 日本語
应用说明 登录后下载 PDF 2.91 MB 日本語
3 items

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
Renesas Motor Workbench
Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
Solution Toolkit 瑞萨电子
QE for Motor: Development Assistance Tool for Motor Applications
The development assistance tool that supports the development of motor software for MCUs. It allows to configure motor middleware and drivers easily, and tune and analyze motors with Renesas Motor Workbench. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
Solution Toolkit 瑞萨电子
2 items

软件下载

类型 文档标题 日期
软件和工具 - 其他 ZIP 1.83 MB
1 item

样例程序

样例程序

筛选
类型 文档标题 日期 日期
示例代码
[Software=RA Flexible Software Package|v6.0.0],[Toolchains=GNU Arm Embedded|13.2.1.arm-13-7]
登录后下载 ZIP 7.14 MB 日本語
应用: 工业
Compiler: GNU ARM Embedded Function: Application Example IDE: e2 studio
1 item
