概览
描述
RA2T1 系列微控制器基于 64MHz Arm® Cortex®-M23 内核设计,专为单电机控制应用而优化。 RA2T1 集成 PWM 定时器,以及配备 3 个采样保持电路的 A/D 转换器等先进的模拟功能,适用于电动工具,风扇和家用电器等高效的低端电机控制方案。 RA2T1 支持 1.6V 至 5.5V 的宽工作范围,并采用小型的 24 引脚 QFN 封装,可满足成本效益和空间受限的设计需求。
RA2T1 系列支持灵活配置软件包(FSP) 和合作伙伴生态系统,实现可扩展的软件开发。 此外,为加速设计和评估,我们提供完善的开发环境,包括用于原型开发的评估板(快速原型开发板 (Fast Prototyping Board))和支持快速电机控制评估的评估套件 (MCK-RA2T1)。

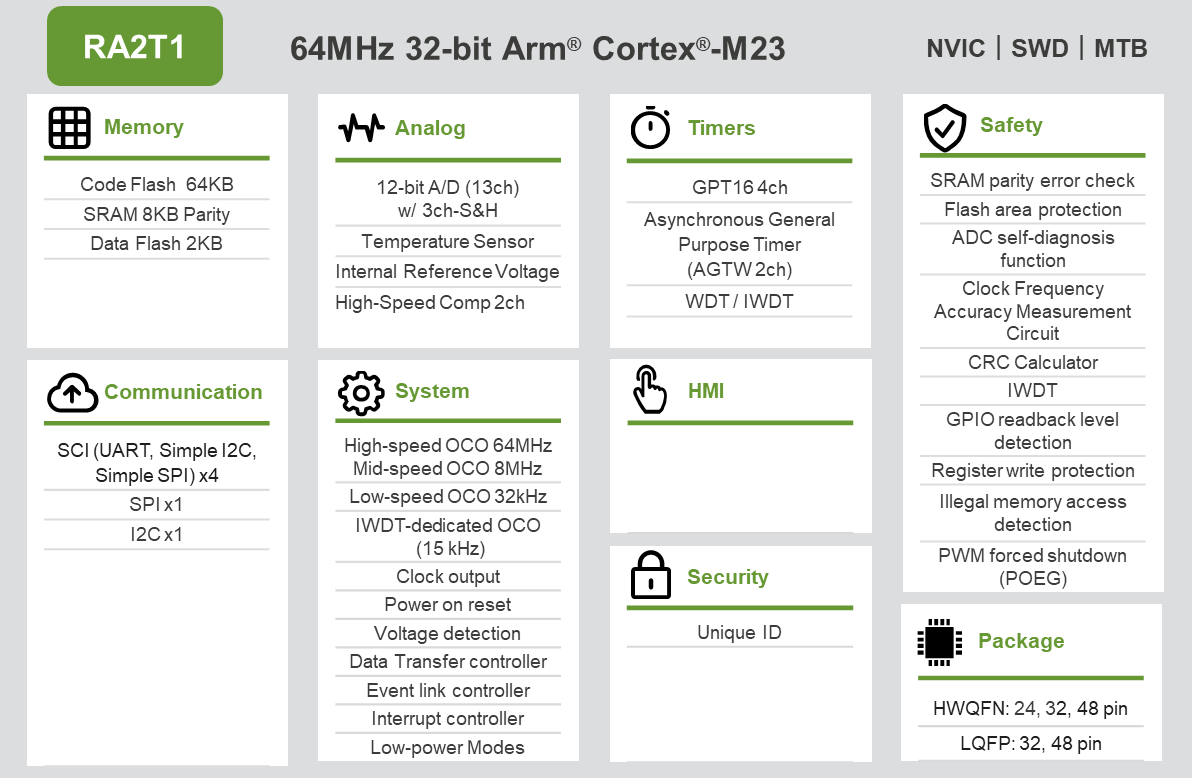

特性
- 64MHz Arm Cortex-M23 内核
- 64KB 闪存和 8KB SRAM
- 2KB 数据闪存(支持类似 EEPROM 数据存储)
- 采用 LQFP 和 HWQFN 封装,可从 24 引脚扩展至 48 引脚
- PWM 定时器
- 12 位 A/D 转换器(配备 3 个采样保持电路)
- 高速比较器
- SCI(UART、简易 SPI、简易 I2C)、SPI、I2C
- 1.6V 至 5.5V 的宽电压范围
- -40 至 125°C的宽工作温度范围
- 安全功能
产品对比
应用
设计和开发
软件与工具
软件与工具
Software title
|
Software type
|
公司
|
---|---|---|
Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | 瑞萨电子 |
e² studio - RA 产品家族信息 基于 Eclipse 的瑞萨集成开发环境(IDE)。
|
IDE and Coding Tool | 瑞萨电子 |
QE for Motor: Development Assistance Tool for Motor Applications The development assistance tool that supports the development of motor software for MCUs. It allows to configure motor middleware and drivers easily, and tune and analyze motors with Renesas Motor Workbench. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
RA Smart Configurator The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
|
Solution Toolkit | 瑞萨电子 |
PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
Renesas Flash Programmer (Programming GUI) 闪存编程软件【支持 MCU/MPU 和设备:RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
Reality AI Utilities 用于 AI 开发和性能验证的往返工作流程,允许收集数据、优化模型并直接部署到 Renesas 硬件
|
Solution Toolkit | 瑞萨电子 |
SEGGER emWin GUI Library for Renesas RA Products SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
|
Imaging | SEGGER |
SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
IAR Embedded Workbench for Arm IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm, generating fast, compact code and enabling you to take full control of your code.
|
IDE and Coding Tool | IAR Systems |
Arm® Keil® MDK Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
|
IDE and Coding Tool | Arm® Keil® MDK Arm® |
13 items
|
样例程序
开发板与套件
Renesas Flexible Motor Control Kit for RA2T1 MCU Group
MCK-RA2T1 是一款便于评估使用永磁同步电机(无刷直流电机)的电机控制的开发套件。 通过使用本产品以及可从网站下载的样例程序和 QE for Motor,即刻开始使用 RA2T1 进行电机控制评估。
Renesas Flexible Motor Control CPU Board for RA2T1 MCU Group
本产品是一款配备 RA2T1 的电机控制 CPU 板。 将 RA2T1 与支持的逆变器板结合使用,可轻松使用 RA2T1 控制电机。 使用支持的通信板,将 CPU 板与 PC 电气隔离,以安全地进行电机控制评估和调试。
- 支持的逆变器板(套件)
MCI-LV-1 (P/N: RTK0EM0000S04020BJ) - 支持的通信板
MC-COM (P/N: RTK0EMXC90S00000BJ)
RA2T1 MCU 群组快速原型板
RA2T1 快速原型开发板配备 RA2T1 MCU,是专门用于 RA2T1 MCU 各种应用原型开发的评估板。 它具有内置的 SEGGER J-Link™ 仿真器电路,允许您编写和调试程序,而无需额外的工具。 此外,标配 Arduino Uno™ 和 Pmod™ 接口,并可通过通孔连接微控制器的所有引脚,具有很高的可扩展性。
提供示例软件,用于演示 RA2T1 MCU 的功能,以及将 RA2T1 快速原型开发板与各种无线或传感器模块连接。
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

产品选项
当前筛选条件
视频和培训
Get to know the RA2T1 64MHz Arm® Cortex®-M23 MCU optimized for single motor control. It simplifies vector control and reduces BOM. Ideal for efficient, cost-effective motor control.
