概述
RZ/T2N 评估板套件可对 RZ/T2N MPU 进行评估，并开发需要实时控制和工业网络的工业系统。 该套件包含了板载 SEGGER J-Link™ 仿真器、千兆以太网 PHY、非易失性存储器和 LPDDR4 存储器，用于快速开展评估和原型设计。 对于多轴电机控制设备，我们还提供了可选配的 RZ/T 系列逆变器板套件（RTK0EM0000S05010BJ）。
特性
- 板载 RZ/T2N MPU（R9A07G076M48GBG，537 引脚封装）。
- 用于全面评估 MPU 的千兆以太网 PHY、QSPI 闪存、OctaFlash、eMMC、NAND 闪存 和 DDR 存储器。
- 便于扩展的 MicroSD 卡槽、PCIe 连接器和 Pmod™ 接口。
- 四个专用逆变器板（RTK0EM0000S05010BJ）连接器，支持多达四个电机，以实现多轴电机控制。
- 用于连接用户系统的排针接口。
- 集成式板载调试器/仿真器，用于通过 USB 下载程序和调试。
- 支持瑞萨电子 e2 studio IDE 和 RZ FSP。

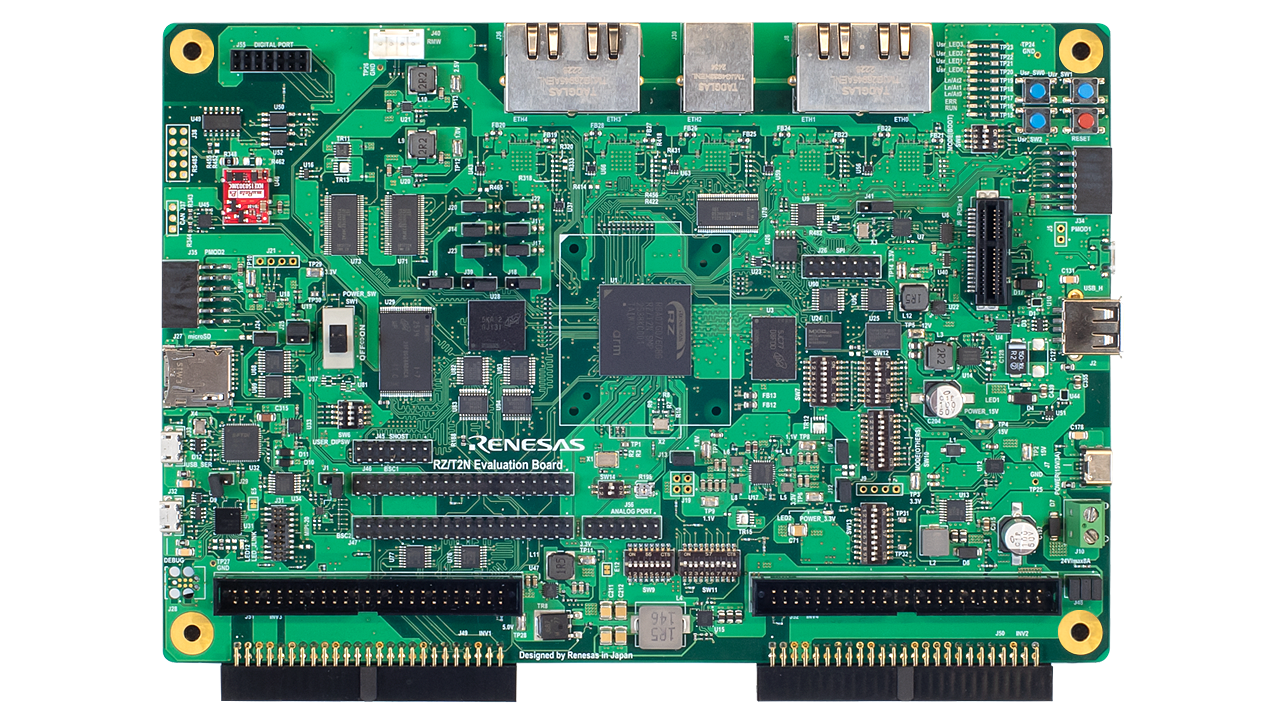

RTK9RZT2N1C00010BJ 板 - 顶视图
设计采用的产品
| RJK03M5DNS | N 沟道单功率 MOSFET 30V 25A 6.3Mohm HWSON-8 |
| 2SJ687-ZK | Pch Power MOSFET -20V -20A 7mohm TO-252 / DPAK |
| 9FGV0241 | 2-Output 1.8V PCIe Gen 1-4 Clock Generator with Zo=100 ohms |
| QS3VH257 | 3.3V Quad 2:1 Mux/Demux for Hot Swap Applications |
| SLG59H1313C | 20V, 23mΩ, 4.5A Load Switch with Surge Protection and Adjustable Overvoltage Protection (OVP) |
| R9A02G011 | USB 供电控制器 |
| ISL85415 | 宽范围 VIN 500mA 同步降压稳压器 |
| RAA211250 | 集成 FET 30V、5A 同步降压稳压器，带内部补偿和可编程频率 |
| RAA211650 | 60V 5A 集成开关稳压器 |
| ISL85009 | 9A, 3.8V to 18V Input, Synchronous Buck Regulator |
| DA9080 | 高度集成的 PMIC，具有 4 个降压稳压器、1个 LDO 和 8 位 ADC，采用 QFN 封装 |
| ISL80020 | Compact Synchronous Buck Converter |
| ISL8026 | Compact Synchronous Buck Regulators |
| AT25SF128A | 128Mbit, 2.7V Minimum SPI Serial Flash Memory with Dual I/O Support |
| ISL80505 | 高性能 500mA LDO |
| 74CBTLV3125 | Low-Voltage Quadruple Bus Switch |
| 74FCT3244 | 3.3V Octal Buffer/Line Driver |
| SLG59M1655V | 5.5V, 7.8mΩ, 9A Load Switch with Reverse Current Blocking |
| RV1S9160A | High CMR, 15Mbps CMOS Output, Low Forward Current(IF) 3.3V/5V Operation, 5-PIN SOP Photocoupler |
| ISL3176E | ±15kV ESD Protected, 3.3V, Full Fail-Safe, Low Power, High Speed or Slew Rate Limited, RS-485/RS-422 Transceivers |
| QS3VH16233 | 2.5V/3.3V 32:16 Mux/Demux High Bandwidth Bus Switch |
| QS3VH245 | QuickSwitch Products 3.3V 8-Bit Bus Switch for Hot Swap Applications |
包装内容
- RZ/T2N 评估板（RTK9RZT2N1C00010BJ）
- USB Type-C 转 Type-C 电缆 x1
- USB Type-A 转 micro USB 电缆 x2
不包含
- USB 供电 45W USB 充电器（Type-C），输出为 15V/3A 或更高规格
设计文件与文档
加载中
