概览
描述

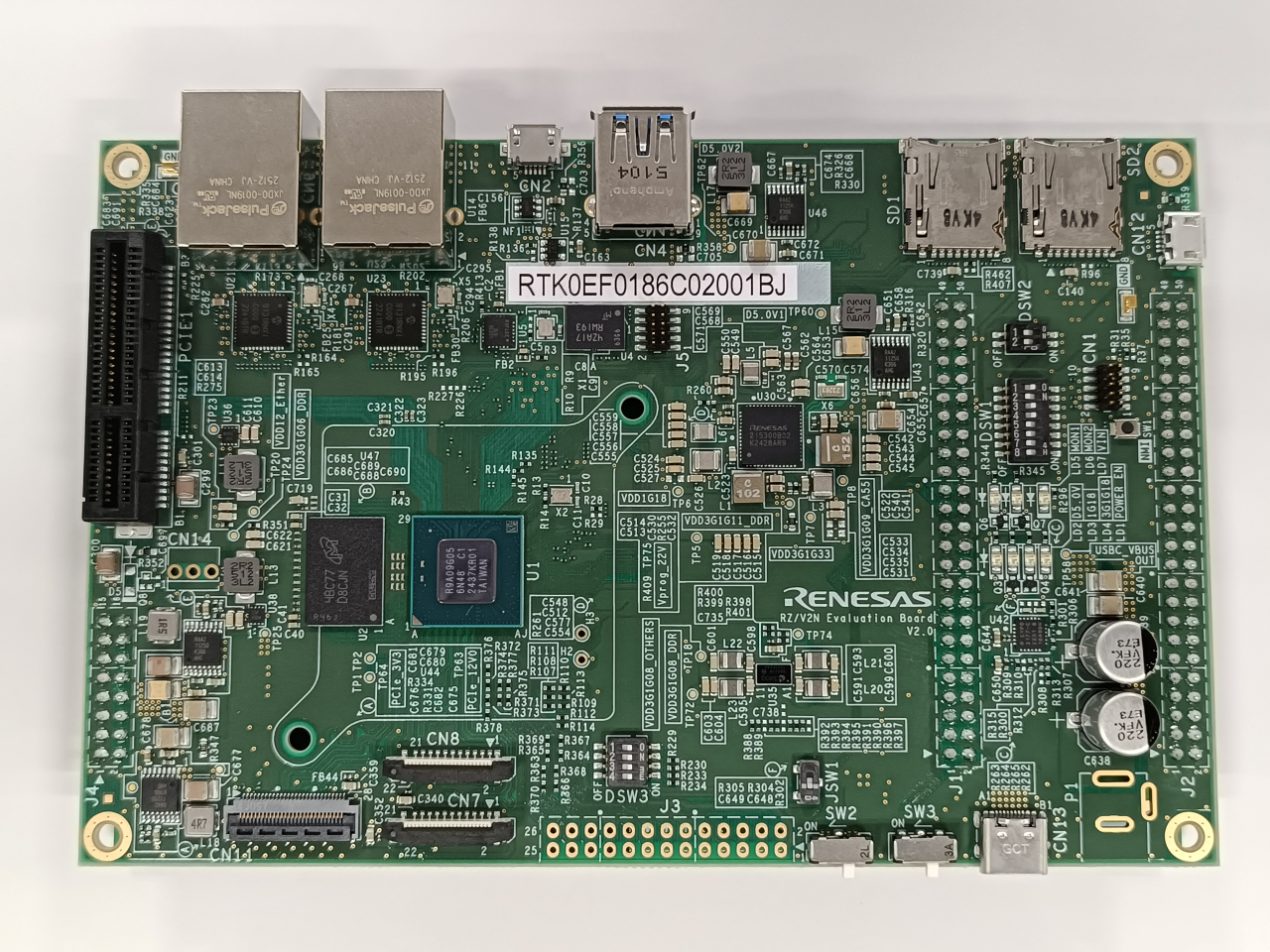

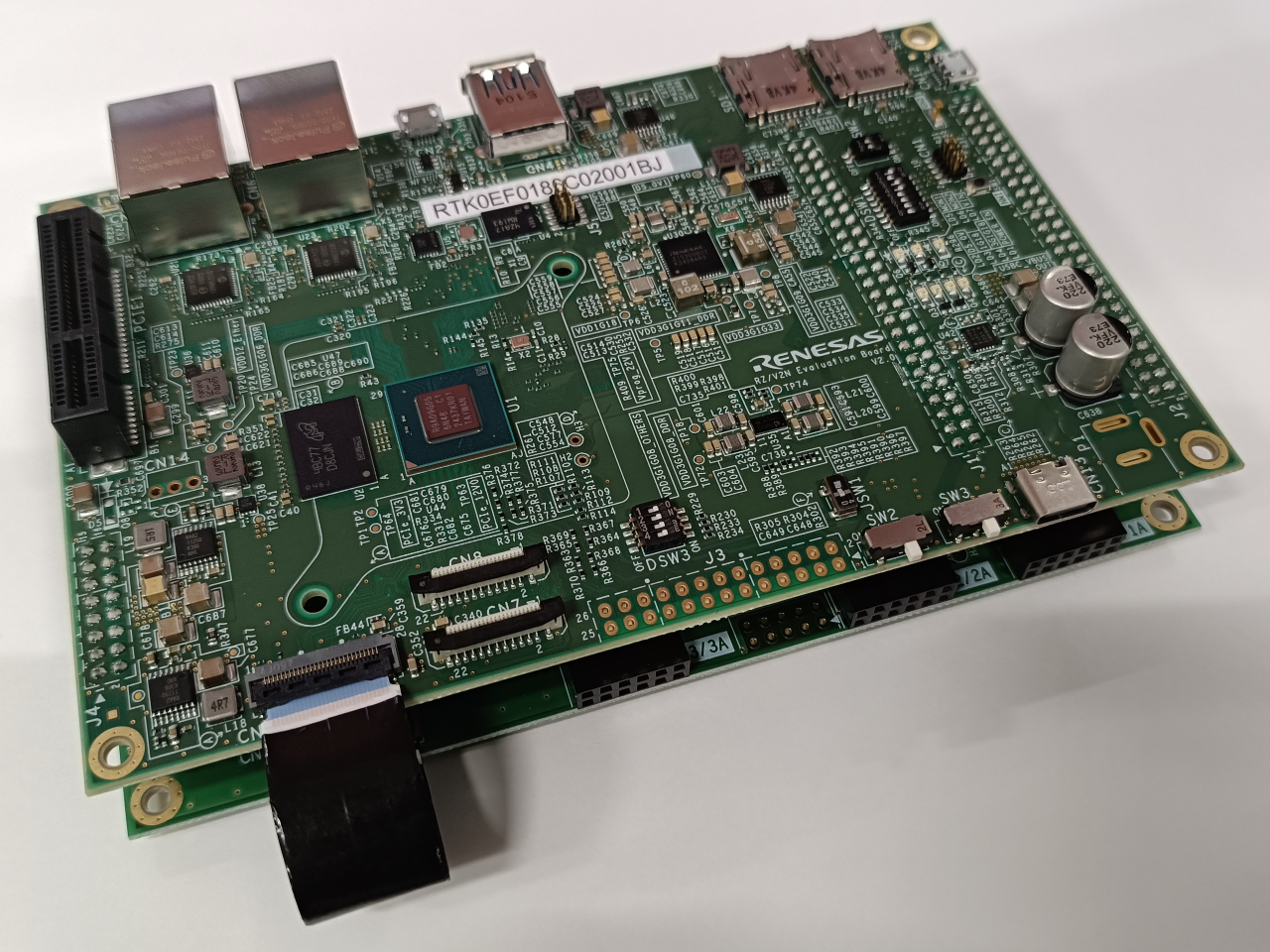

RZ/V2N AI MPU 评测套件 (RTK0EF0186C03000BJ) 用于评测我们的 RZ/V2N 四核 视觉 AI MPU。 该套件包括一块 CPU 评测板、扩展 (EXP) 板和两块子板。 我们提供了 AI 软件开发包 (AI SDK) 作为该评测套件的软件开发环境。 它支持对低功耗 AI 推理、视频流和其他内置功能进行评测。 该套件还支持图像信号处理器 (ISP)、3D 图形引擎 (GE3D) 和可信安全 IP 等可选功能。
特性
- RZ/V2N 评测板（CPU 板）：
- CPU: RZ/V2N
- PMIC: RAA215300
- 时钟发生器：5L35023B
- 主存储器：LPDDR4X 8GB × 1
- xSPI 闪存：64MB
- 外部存储器：Micro SD x1
- 用于子板的板对板接口
- 高速接口：
- 千兆以太网接口 × 2 端口
- USB 3.2 Gen2 × 1（仅主机）
- USB 2.0 x1 (OTG)
- PCIe® Gen3 x1（最多 2 线）
- MIPI® CSI-2® x2
- MIPI DSI® x 1
- GPIO: 86 引脚
- RZ/V2H-EVK 扩展评测板（EXP 评测板）：*与 RZ/V2H 共享
- HDMI® Tx x1
- 音频辅助输入接口 x1
- 音频麦克风输入接口 x1
- 音频耳机输出接口 x1
- Pmod™ x4
- RZ/V2N microSD 子板：
- 外部存储器：Micro SD x1
- RZ/V2N eMMC 子板：
- 外部存储器：eMMC x1
- 包装内容：
- RZ/V2N 评测板
- RZ/V2H EVK 扩展评测板
- RZ/V2N microSD 子板
- RZ/V2N eMMC 子板
- 用于 MIPI DSI 的柔性电缆
- 散热器
- USB 连线（Micro B - A 型）
- 橡胶脚垫（一套 4 个）
- 用于固定子板的螺钉
- 备注
- 不包含 AC 适配器。 平台应使用支持 60W 电源的标准 USB 供电适配器。
应用
文档
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 手册 - 开发工具 | PDF 1.85 MB 日本語 | |
| 应用说明 |
PDF
356 KB
Introduces practical example projects for the RZV2N-EVK kit. The example projects contained within the bundle show how to write code for the various Renesas Flexible Software Package (FSP) modules supported by the RZV2N-EVK kit.
|
|
| PCB 设计文件 | RZ/V2N Evaluation Board Kit V2.0 CPU Board Design Data
This dataset includes the schematic, BOM list, PCB data, CAD data, and Gerber data for the CPU board of the RZ/V2N Evaluation Board Kit. For the EXP board dataset, please refer to “RZ/V2H EXP Board Design Data.”
|
|
| PCB 设计文件 | RZ/V2N Evaluation Board Kit V1.0 CPU Board & Sub Board Design Data
The RZ/V2N Evaluation Kit V2.0 (RTK0EF0186C03001BJ) is an evaluation board kit optimized for evaluating the RZ/V2N. In V2.0, support has been added for the DDR Suspend-to-RAM function, along with corresponding changes to the power supply circuit configuration. This evaluation kit is also compatible with the AI Software Development Kit (AI SDK). Customers using the previous version of the EVK should refer to the Version 1.0 documentation.
|
|
| 应用说明 |
PDF
666 KB
The RZ/V2H Group and the RZ/V2N Group support two boot modes. Since the power supply circuit configuration differs for each boot mode, this document presents example power supply configurations for each mode.
|
|
| 应用说明 |
PDF
275 KB
Available camera modules with MIPI CSI-2 interfaces support RZ/V2L, RZ/V2M, and RZ/V2H platforms. Modules come from partners such as TechNexion, e-con Systems, Shikino High-Tech, and ArduCam, featuring various sensors with pixel resolutions ranging from 1MP to 13MP and shutter types including global and rolling shutters. Necessary software and documentation are provided by the respective camera module makers, who guarantee module operation. Modules support YUV and RGB raw formats, and some serve as reference designs for ISP evaluation. Users must contact camera makers for operational support.
|
|
| PCB 设计文件 | RZ/V2H EXP Board Design Data
|
|
7 项目
|
||
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RZ/V series AI Apps & AI SDK (GitHub) The AI SDK enables easy and rapid development of AI applications using Renesas' RZ/V series evaluation kits. Additionally, it offers a range of AI applications free of charge.
|
Software Package | 瑞萨电子 |
| RUHMI 框架 借助在综合平台中集成异构编译器和软件框架，以加速 AI 应用开发。
|
Solution Toolkit | 瑞萨电子 |
| RZ Flexible Software Package (FSP) RZ FSP 是一款增强型软件包，旨在为基于瑞萨电子 RZ 系列 Arm 微处理器的嵌入式系统设计提供用户友好、可扩展的高质量软件。
|
Software Package | 瑞萨电子 |
| RZ 多操作系统软件包 一款用于开发多操作系统解决方案的软件包，由 FSP 和 OpenAMP 组成，前者是用于 Cortex-M 或 Cortex-R 内核 MPU 的软件包，后者是用于处理器间通信框架的标准化 API。
|
Software Package | 瑞萨电子 |
| AI Navigator: IDE for AI Applications The functions required for the development of embedded systems that use artificial intelligence (AI) have been integrated in AI Navigator, shortening the development periods.
|
Solution Toolkit | 瑞萨电子 |
5 项目
|
||
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 | RZ/V2N-EVK Example Project Bundle
Demonstrates how to write code using various unified Renesas RZ Flexible Software Package (FSP) v4.x.x modules supported by the RZV2N-EVK. The unified RZ FSP consolidates all previous family‑specific FSPs into a single package and provides an optimized, easy‑to‑use, scalable, high‑quality software solution for embedded system design.
|
|
1 项目
|
||
产品选项
| 器件号 | 状态 | 库存 | 预算价格（美元） | Remarks |
|---|---|---|---|---|
| RTK0EF0186C03000BJ | Active | 有库存 | 1u | $510 | |
| RTK0EF0186C03001BJ | Active | 有库存 | 1u | $510 | DDR Suspend to RAM |
视频和培训
Explore the evaluation environment for the RZ/V2N microprocessor, featuring advanced vision AI processing with dual cameras. Practical demonstrations introduce key use cases such as driver monitoring, dash cams, robotics, and home security. The content highlights how the RZ/V2N enables efficient AI inference and real‑time video processing, making it a strong fit for developers considering AI‑enabled camera applications.
合作伙伴
Zephyr Project
The Zephyr Project is an open-source, scalable real-time operating system (RTOS) designed for resource-constrained embedded systems and supports a wide range of hardware architectures and development boards. For the Renesas RZ/V2N Evaluation Kit, Zephyr provides focused documentation covering board features, supported peripherals, and basic build, flashing, and debugging workflows to help developers quickly get started.
