特性
- Qualified for Renesas Rad Tolerant Screening and QCI Flow (R34TB0004EU)
- Ultra-low RMS noise: 4μVRMS from 10Hz - 100kHz
- Ultra-low spot noise: 12.5nV/√Hz at 10kHz
- Ultra-high PSRR
- 101.5dB at 120Hz, 85dB at 10kHz, 40.9dB at 100kHz, 32.5dB at 1MHz, and 16.5dB at 10MHz
- Maximum output current: 1A
- Input voltage range
- 2.7V to 30V
- Output voltage range (VOUT): 0.5V to VIN - VDO
- Low dropout voltage (VDO): 379mV with IOUT = 1A
- Output voltage adjustability using a single resistor
- Programmable and internal ILIM with foldback
- TID Radiation Lot Acceptance Testing (RLAT) (LDR: ≤ 10mrad(Si)/s)
- ISL75054M30VZ: 30krad(Si)
- ISL75054M50VZ: 50krad(Si)
- SEE characterization
o No DSEE for VIN = 32V at 46MeV•cm2/mg
o No SEFI at 46MeV•cm2/mg
o No SET on VOUT at 46MeV•cm2/mg

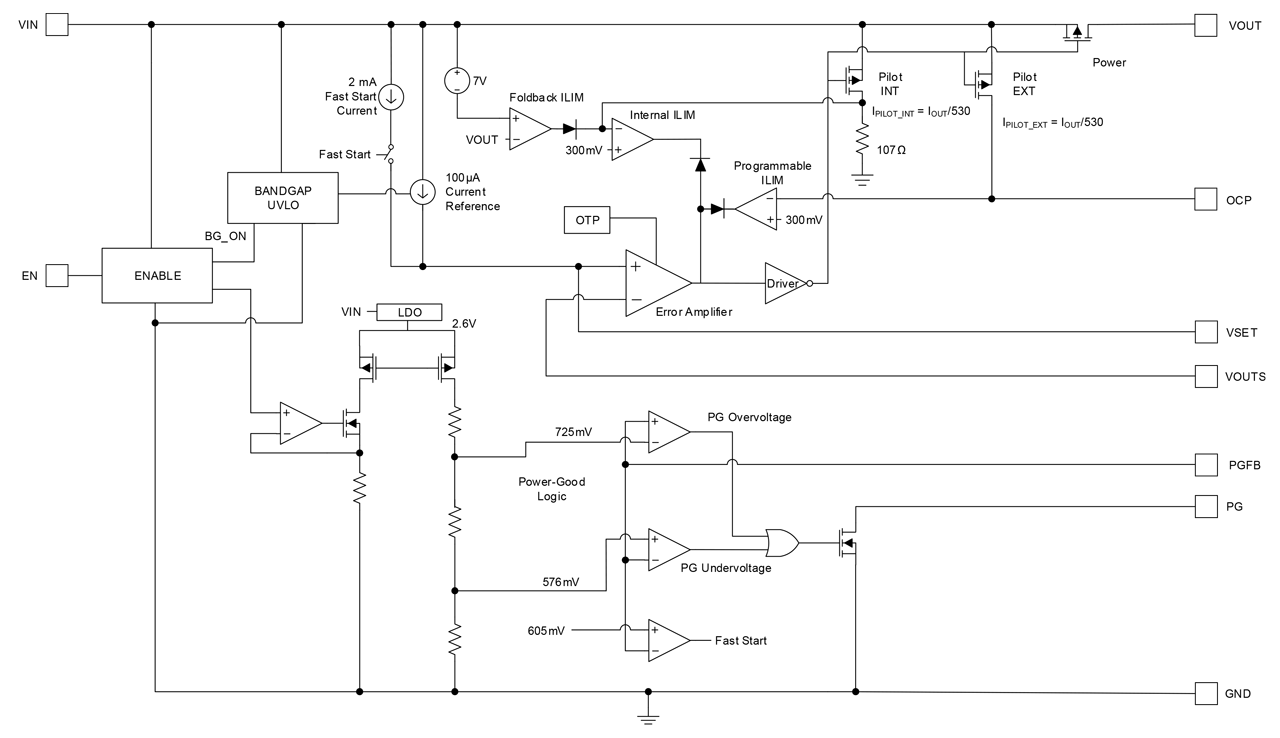

描述
The ISL75054M is a radiation tolerant low-dropout linear regulator with ultra-low noise and high PSRR used as a power supply for ADC and RF applications. It has an operating supply voltage range of 2.7V to 30V and an output voltage range of 0.5V to VIN - VDO. The device supplies up to 1.0A of current at a typical 379mV dropout voltage. Built-in protection includes foldback, internal and externally programmable current limit, and over-temperature protection. The ISL75054M features excellent noise performance and PSRR for radiation tolerant LDOs, with an ultra-low RMS noise of 4μVRMS from 10Hz to 100kHz and an ultra-high PSRR of 101.5dB at 120Hz.
The ISL75054M is offered in a 16-lead heatsink thin shrink small outline package (HTSSOP) and operates across the full military temperature range of -55°C to +125°C.
产品参数
| 属性 | 值 |
|---|---|
| Rating | Space |
| IOUT (A) | 1 |
| Supply Voltage (min) (V) | 2.7 - 2.7 |
| Supply Voltage (max) (V) | 30 - 30 |
| VDO @ IOUTMAX (Typ) (mV) | 387 |
| VOUT (min) (V) | 0.5 |
| VOUT (max) (V) | 29.5 |
| Temp. Range (°C) | -55 to +125°C |
| TID LDR (krad(Si)) | 30, 50 |
| DSEE (MeV·cm2/mg) | 43 |
| Flow | RT Plastic |
| Qualification Level | Radiation Tolerant Plastic |
| Die Sale Availability? | No |
| PROTO Availability? | No |
封装选项
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| TSSOP-EP | 5.0 x 4.4 x 0.90 | 16 | 0.6 |
产品对比
| ISL75054M | ISL75051ASEH | ISL75052SEH | |
| Supply Voltage (min) | 2.7 - 2.7 | 2.2 - 2.2 | 4 - 4 |
| Supply Voltage (max) | 30 - 30 | 6 - 6 | 13.2 - 13.2 |
| VOUT (min) (V) | 0.5 | 0.8 | 0.6 |
| VOUT (max) (V) | 29.5 | 5 | 12.7 |
| IOUT (A) | 1 | 3 | 1.5 |
| VDO @ IOUTMAX (Typ) (mV) | 387 | 225 | 225 |
应用
- RF power supplies for PLLs, VCOs, mixers, LNAs, and PAs
- Power supplies for low-noise instrumentation amplifiers
- Power supplies for high-speed/precision data converters
