RL78/G24 快速原型开发板（RL78/G24 FPB）
RL78/G24 快速原型开发板采用 RL78/G24 微控制器，是各种原型开发的理想选择。 内置的仿真器电路相当于 E2 仿真器 Lite，无需额外工具即可进行编程和调试。 此外，它还具有 Arduino Uno、Pmod™ 和 Grove 接口，可连接所有微控制器引脚，并且具有高可扩展性。 瑞萨电子还提供了一个 Arduino...
概览
简介

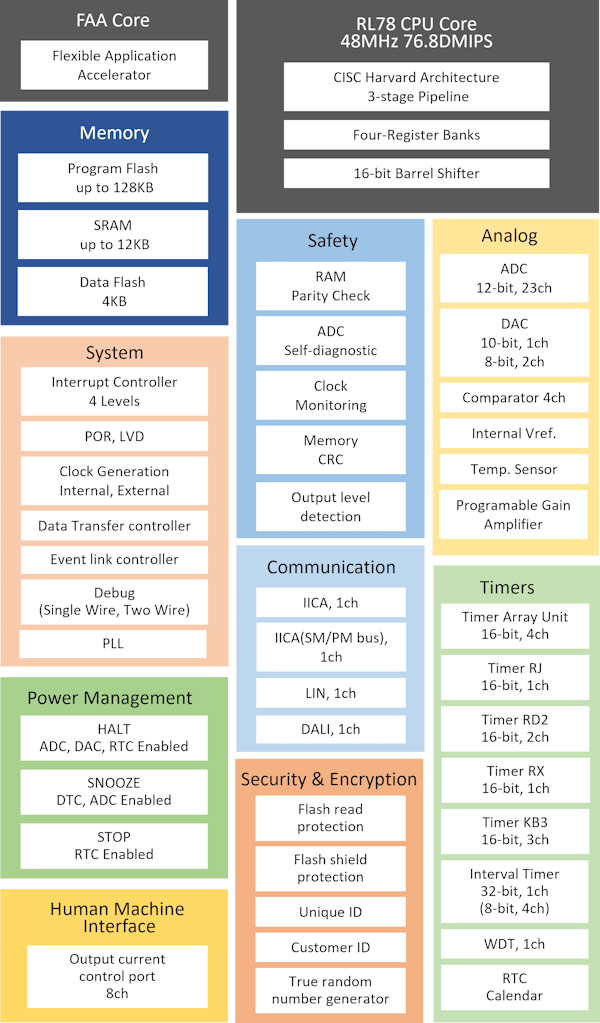

RL78/G24微控制器是RL78系列MCU之中处理性能最强大的微控制器，CPU运行频率高达48MHz，搭配柔性应用加速器（FAA）。此外，它还搭载增强的模拟功能和丰富的定时器，适用于电机控制、电源和照明应用。FAA是一种运算专用的协处理器，可以独立于CPU运行，从而实现更强大的处理能力。
此外，我们还为RL78/G24提供完善的开发环境，包括只连接USB线即可编写/调试程序的评估板（Fast Prototyping Board）、专门用于电机与电源和照明解决方案初始评估的套件、以及可以通过GUI简化设计的Smart Configurator。它与现有的RL78系列兼容，可无缝切换，适用于从家电、消费类电子产品到工业设备的广泛用途。
特性
- CPU：RL78 核心、最高 48MHz、FAA 核心
- 电压：1.6V至5.5V
- 封装：20 至 64 引脚
- 内存：程序闪存：64KB/128KB，SRAM：12KB，数据闪存：4KB
- 工作温度：不超过 125°C
- 定时器：12 路 16 位定时器、1 路看门狗定时器、1 路 32 位间隔定时器
- PWM：14 路 PWM 输出
- 模拟功能：23 路 8/10/12 位 A/D 转换器、2~3 路 8/10 位 D/A 转换器、4 路比较器、1 路可编程增益放大器 (PGA)
- 片上振荡器 频率 (MHz)：
- 高速：最高 64MHz
- 中速：最高4MHz
- 低速：32.768kHz
- 事件链路控制器
- 其他：RTC、上电复位、低电压检测
- 封装：SSOP、LQFP、LFQFP、HWQFN、WFLGA
产品对比
应用
- 电机控制
- 电源
- 照明
- 通用
- 民用
- 家电
- 工业自动化
- 楼宇自动化
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | 瑞萨电子 |
| RI78V4 V2 Real-time OS for RL78 Family μITRON Specification real-time OS for RL78 Family [Required IDE : CS+]
|
ITRON OS | 瑞萨电子 |
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| e² studio - information for RL78 Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| QE for Motor: Development Assistance Tool for Motor Applications The development assistance tool that supports the development of motor software for MCUs. It allows to configure motor middleware and drivers easily, and tune and analyze motors with Renesas Motor Workbench. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
| RL78 Smart Configurator RL78 Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | 瑞萨电子 |
| CS+ Partner OS Aware Debugging Plug-in Features for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78]
|
Plug-in, OS Aware Debugging, Etc. | 瑞萨电子 |
| C Compiler Package for RL78 Family [CC-RL] C Compiler Package for RL78 Family [IDE: CS+, e² studio]
|
Compiler/Assembler | 瑞萨电子 |
| RL78 Web Simulator Right online tools to support initial evaluation of the low power consumption RL78 Family. Lineup: MCU Simulator Online and Current Consumption Calculator. Free of charge.
|
Simulator | 瑞萨电子 |
| Simulator for e² studio of RL78 Family Simulator for RL78 Family [Support IDE: e² studio] (Note: This product is included in the Renesas IDE "e² studio" and is not available separately.)
|
Simulator | 瑞萨电子 |
| Simulator for CS+ of RL78 Family, 78K0R and 78K0 Simulator for RL78 Family, 78K0R and 78K0 [Support IDE: CS+] (Note: This product is included in the Compiler Package and is not available separately.)
|
Simulator | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| 瑞萨闪存编程器（编程图形用户界面） 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| Code Flash Libraries (Flash Self Programming Libraries) Libraries for the reprogramming of code area flash memory, including EEPROM emulation libraries for the code areas of 78K-family products
|
Self Programming Library (Flash Library) | 瑞萨电子 |
| Data Flash Libraries Libraries for the reprogramming of data flash memory, including EEPROM emulation libraries for the data areas of RL78-family products
|
Self Programming Library (Flash Library) | 瑞萨电子 |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | 瑞萨电子 |
| Sound Playback/Compression System [M3S-S2-Tiny] for RL78 Family Sound playback system for RL78 Family
|
Sound / Voice | 瑞萨电子 |
| FAT File System [M3S-TFAT-Tiny] for the RL78 Family FAT file system for RL78 Family
|
File System | 瑞萨电子 |
| DALI Master Controller GUI The DALI Master Controller GUI controls an RL78/I1A lighting communication master evaluation board
|
Code Generator | 瑞萨电子 |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | 瑞萨电子 |
| QE for Current Consumption: A Dedicated Tool for Current Measurement Development assistance tool helps to shorten the times taken in operations for the tuning of currents drawn. [Standard item in the "e² studio" and CS+ (CS+ for CC only) IDEs] [Support MCU/MPU: RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
| IAR Embedded Workbench for Renesas RL78 IAR Embedded Workbench provides extensive support for RL78 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
|
IDE and Coding Tool | IAR Systems |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | 瑞萨电子 |
| QE for Lighting & Power: Development Assistance Tool for Lighting System This development assistance tool for smart lighting system solution development, which seamlessly integrates with Renesas lighting system libraries, solution programs, various compilers, and Renesas evaluation boards. [Standalone Version] [Support MCU/MPU:RL78]
|
Solution Toolkit | 瑞萨电子 |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
|
27 items
|
||
样例程序
开发板与套件
RL78/G24 DC/DC LED 控制评估板
RL78/G24 DC/DC LED 控制评估板可以使用 RL78/G24 来评估 DC/DC 转换器控制和各种通信标准，而该 RL78/G24 在 RL78 系列微控制器中具有最高的处理性能，还有已增强的电源控制模拟功能。
该板支持 PMBus/SMBus、DALI-2、DMX512 和红外通信协议。 使用 RL78/G23...
RL78/G24 电机控制评估套件
RL78/G24 电机控制评估套件是一款永磁同步电机（无刷直流电机）控制评估套件，配备 RL78/G24 微控制器，可轻松评估电机控制。 您可以从瑞萨电子网站下载示例软件，使用该软件就可以立即开始评估电机控制。
包含硬件套件
- 逆变器板（RTK0EMGPLVB00000BJ）
- RL78/G24 CPU...
智能照明系统评估套件
这款全面的照明控制系统专为建筑自动化而设计。 通过利用数字可寻址照明接口（DALI）通信标准连接控制器和多个照明模块，您可以毫不费力地建立功能强大的照明系统。 我们提供 DALI 图形用户界面（GUI）应用程序给用户来控制 LED 灯。 功率控制、淡入淡出设置、电平设置、场景设置、光强度和设备类型设置等功能都可以使用 GUI 进行配置。
可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Program Memory (KB) |
RAM (KB) |
Lead Count (#) |
Temp. Range |
PLP |
Data Flash (KB) |
RTC |
I/O Ports |
Timer |
ADC |
DAC |
Human Machine Interface |
Pkg. Type |
Pkg. Dimensions (mm) |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
购买 / 样片 |
105°C Max. Case Temp. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | ||||||||||||||||||
| 64 | 12 | 20 | -40 to +85°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 1.215 | Get Samples, | ||
| 64 | 12 | 20 | -40 to +105°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 1.301 | Get Samples, | ||
| 64 | 12 | 20 | -40 to +125°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 1.403 | Get Samples, | ||
| 128 | 12 | 20 | -40 to +85°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 1.478 | Get Samples, | ||
| 128 | 12 | 20 | -40 to +105°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 1.591 | Get Samples, | ||
| 128 | 12 | 20 | -40 to +125°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 1.707 | Get Samples, | ||
| 64 | 12 | 20 | -40 to +85°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | ||||
| 64 | 12 | 20 | -40 to +105°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 2.42 | |||
| 64 | 12 | 20 | -40 to +125°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 2.58 | |||
| 128 | 12 | 20 | -40 to +85°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 2.73 | |||
| 128 | 12 | 20 | -40 to +105°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 2.89 | |||
| 128 | 12 | 20 | -40 to +125°C | 2037 Dec | 4 | 是 | 16 | 16-bit x 11-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 12-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 6 x 4 x 1.45 | 3 | 3.07 | |||
| 64 | 12 | 24 | -40 to +85°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 64 | 12 | 24 | -40 to +85°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 64 | 12 | 24 | -40 to +105°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 64 | 12 | 24 | -40 to +105°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 64 | 12 | 24 | -40 to +125°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 64 | 12 | 24 | -40 to +125°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 128 | 12 | 24 | -40 to +85°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 128 | 12 | 24 | -40 to +85°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 128 | 12 | 24 | -40 to +105°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 128 | 12 | 24 | -40 to +105°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 128 | 12 | 24 | -40 to +125°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 128 | 12 | 24 | -40 to +125°C | 2037 Dec | 4 | 是 | 20 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 13-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 4 x 4 x 0.8 | 3 | ||||
| 64 | 12 | 25 | -40 to +85°C | N/A | 4 | 是 | 21 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | WFLGA | 3 x 3 x 0.76 | 3 | ||||
| 64 | 12 | 25 | -40 to +85°C | N/A | 4 | 是 | 21 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | WFLGA | 3 x 3 x 0.76 | 3 | ||||
| 64 | 12 | 25 | -40 to +105°C | N/A | 4 | 是 | 21 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | WFLGA | 3 x 3 x 0.76 | 3 | ||||
| 64 | 12 | 25 | -40 to +105°C | N/A | 4 | 是 | 21 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | WFLGA | 3 x 3 x 0.76 | 3 | ||||
| 128 | 12 | 25 | -40 to +85°C | N/A | 4 | 是 | 21 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | WFLGA | 3 x 3 x 0.76 | 3 | ||||
| 128 | 12 | 25 | -40 to +85°C | N/A | 4 | 是 | 21 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | WFLGA | 3 x 3 x 0.76 | 3 | ||||
| 128 | 12 | 25 | -40 to +105°C | N/A | 4 | 是 | 21 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | WFLGA | 3 x 3 x 0.76 | 3 | ||||
| 128 | 12 | 25 | -40 to +105°C | N/A | 4 | 是 | 21 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | WFLGA | 3 x 3 x 0.76 | 3 | ||||
| 64 | 12 | 30 | -40 to +85°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | ||||
| 64 | 12 | 30 | -40 to +85°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | 2.37 | |||
| 64 | 12 | 30 | -40 to +105°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | ||||
| 64 | 12 | 30 | -40 to +105°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | 2.51 | |||
| 64 | 12 | 30 | -40 to +125°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | ||||
| 64 | 12 | 30 | -40 to +125°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | ||||
| 128 | 12 | 30 | -40 to +85°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | ||||
| 128 | 12 | 30 | -40 to +85°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | 2.82 | |||
| 128 | 12 | 30 | -40 to +105°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | ||||
| 128 | 12 | 30 | -40 to +105°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | 3 | |||
| 128 | 12 | 30 | -40 to +125°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | ||||
| 128 | 12 | 30 | -40 to +125°C | 2037 Dec | 4 | 是 | 26 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LSSOP | 9.85 x 6.1 x 1.4 | 3 | 3.19 | |||
| 64 | 12 | 32 | -40 to +85°C | 2037 Dec | 4 | 是 | 28 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LQFP | 7 x 7 x 1.7 | 3 | ||||
| 64 | 12 | 32 | -40 to +85°C | 2037 Dec | 4 | 是 | 28 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LQFP | 7 x 7 x 1.7 | 3 | 2.37 | |||
| 64 | 12 | 32 | -40 to +85°C | 2037 Dec | 4 | 是 | 28 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 5 x 5 x 0.8 | 3 | ||||
| 64 | 12 | 32 | -40 to +85°C | 2037 Dec | 4 | 是 | 28 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | HWQFN | 5 x 5 x 0.8 | 3 | 2.37 | |||
| 64 | 12 | 32 | -40 to +105°C | 2037 Dec | 4 | 是 | 28 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LQFP | 7 x 7 x 1.7 | 3 | ||||
| 64 | 12 | 32 | -40 to +105°C | 2037 Dec | 4 | 是 | 28 | 16-bit x 12-ch, 32-bit x 1-ch | 12-bit/10-bit/8-bit x 16-ch | 8-bit/10-bit x 2~3-ch | No | LQFP | 7 x 7 x 1.7 | 3 | 2.51 |
