The CS+ Partner OS Aware Debugging Plug-in presented herein supports task-level debugging of real-time OS applications in the Integrated Development Environment CS+. There is no need to rebuild the real-time OS, nor will overhead be incurred. Debug patches, etc. are not necessary.
特性
- Allows you to inspect the execution status of resources such as tasks and semaphores
- Real-time RAM monitor supported
- Capable of a mixed display of multiple resources such as task priority and event flag value
- Learn More
发布信息
Latest Ver: V3.01.00
Released: Jun 16, 2015
Details of upgrade (See Tool News)
Operating Environment
Corresponding Real-time OS
目标设备
Additional Details
Functions

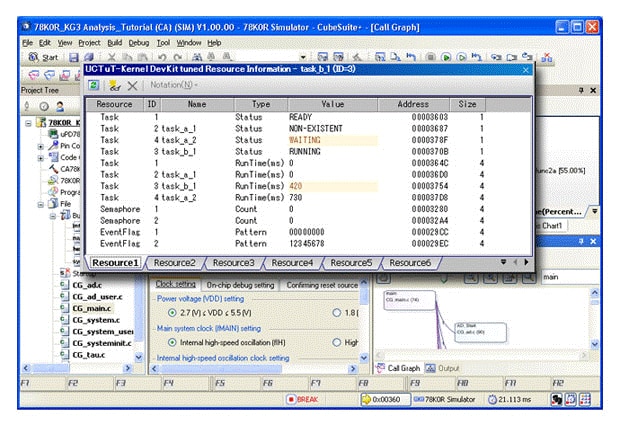

[Confirm the Resource Information from the Partner OS Aware Debugging Plug-in.]
- Allows you to inspect the execution status of resources such as tasks and semaphores
- Real-time RAM monitor supported
- Capable of a mixed display of multiple resources such as task priority and event flag value
Operating Environment
| Item | Description | |
|---|---|---|
| Product name | CubeSuite+ Partner OS Aware Debugging Plug-in V2.01.00 | CS+ Partner OS Aware Debugging Plug-in V3.01.00 |
| Integrated Development Environment | CubeSuite+ V2.00.00 through V2.02.00 | CS+ V.3.00.00 or later |
| Host machine | Refer to Operating Environments of Products. | |
| Corresponding debuggers | Renesas Simulator Debugger and On-chip debugging emulators (E1, E20) corresponding to CubeSuite+ V2.00.00 through V2.02.00, or CS+ V3.00.00 or later. | |
| Corresponding compilers | Renesas Compilers corresponding to CubeSuite+ V2.00.00 through V2.02.00, or CS+ V3.00.00 or later. (incl. CC-RX compiler V2.00.00 or later) | |
Corresponding Real-time OS
| Real-time OS | MCU | |
|---|---|---|
| Smalight OS from Maxell System Tech Co., Ltd. | V3.10 or later | RL78 Family |
| RX Family | ||
| NORTi from MiSPO Co., Ltd. | Version4 Release 4.4 | RX Family |
| µC3 from eForce Co., Ltd. | Release 2.0.7 | RX Family |
| UCT uT-Kernel DevKit tuned for RX62N-CubeSuite+ | Version 1.01.01 | RX Family |
| from Ubiquitous Computing Technology Corporation | ||
| uC/OS-III from Micrium, Inc. | V3.02 | RX Family |
| embOS from SEGGER Microcontroller GmbH & Co. KG. | Version 3.84 | RX Family |
* Smalight is a registered trademark of Maxell System Tech Co., Ltd.
* NORTi is a registered trademark of MiSPO Co., Ltd.
* µC3 is a registered trademark of eForce Co., Ltd.
* UCT uT-Kernel DevKit tuned is a trademark of Ubiquitous Computing Technology Corporation.
* uC/OS-III is a trademark of Micrium, Inc.
* embOS is a trademark of SEGGER Microcontroller GmbH & Co. KG.
* TRON Forum holds the copyright on the uT-Kernel specifications.
