Stream It! RZ MPU 开发套件
Stream It! RZ 是一款开发套件，用于开发和评估 RZ/A1LU MPU 的摄像头输入、LCD 显示屏和以太网连接等应用。 此外，我们还提供了流媒体和网络服务器演示的可执行文件，以便您快速评估 RZ/A1LU。
目录
- Stream It! RZ V2 主板
- 触摸/TFT...
概览
描述

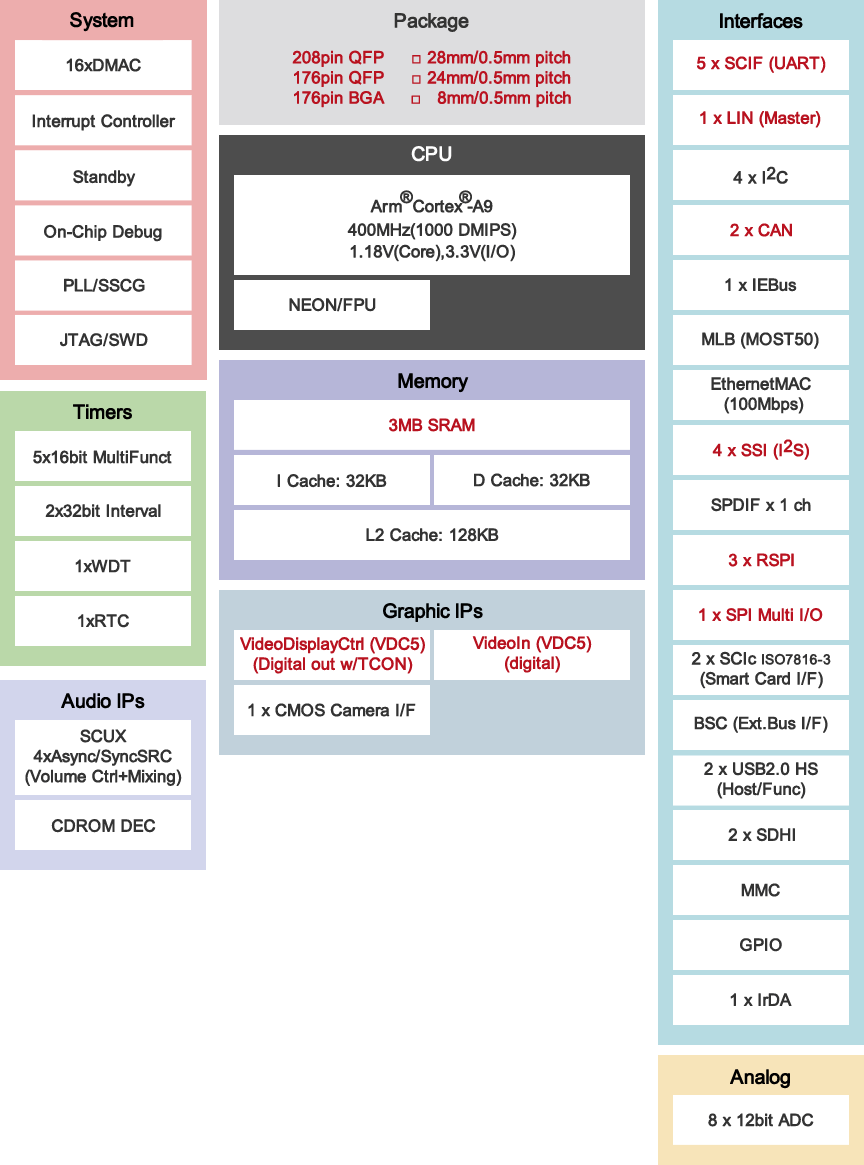

The RZ/A1L Group MPUs feature an Arm® Cortex®-A9 core running at 400MHz and 3MB of on-chip SRAM. With 3MB on-chip SRAM, the RZ/A1L supports up to 2 Displays with WVGA (800x480) resolution or a single display with WSVGA (1024x600) resolution without the need for external memory. RZ/A1L enables very compact embedded designs without the need to worry about memory procurement and memory EOL. With RZ/A1L, you can design your embedded system like an MCU and get the performance of a 400MHz Arm® Cortex®-A9 MPU. Enabled for support with Linux, RTOS or Bare-metal, this is the ideal device for designing Intelligent IoT End Point devices with compactness and high performance. Supported in QFP and BGA packages with different sizes to support board layout flexibility and with SDRAM interface to expand up to 128MB of external memory. Get Started Using RZ/A1 MPUs.
特性
- CPU: Cortex-A9 core, Max. 400MHz
- Power supply voltage: 3.3V/1.8V
- Package: 176-pin LFBGA, 176/208 pin LFQFP
- On-chip RAM: Large-capacity memory
- Graphics functions: Video display controller, Capture engine unit
- Connectivity: Ethernet, USB host/function x 2 channels, SD host interface x 2 channels, etc.
- Others: A/D converter (12-bit resolution) x 8 channels, 32-bit OS timer x 2 channels, Serial communication interface with 16-stage FIFO (SCIF) x 5 channels, etc.
产品对比
应用
- Home Appliance
- Healthcare
- Security
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RZ/A1LU FreeRTOS™ Software Package Software package for HMI software development kit using RZ/A1LU. Support for camera input, LCD output, and image adjustment.
|
Software Package | 瑞萨电子 |
| RZA1 Microsoft Azure Software Development Kit This is the RZ/A1 Software Development Kit with Microsoft Azure Support. The SDK contains the RZ/A1 Board Support Package and drivers for the RZ/A1 target Processors, the Azure RTOS ( Threadx ), Azure middleware ( USB Host, USB Device, Network, IoT, Filesystem and GUI Development ).
|
Software Package | 瑞萨电子 |
| QE for Camera: Development Assistance Tool for Camera Applications This development assistance tool supports the development of embedded systems which use the camera functions of display controllers from Renesas. [Plugin for Renesas IDE "e2 studio"]
|
Solution Toolkit | 瑞萨电子 |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | 瑞萨电子 |
| TES Guiliani Guiliani is a GUI development tool provided by TES.
|
Solution Toolkit | TES Electronic Solutions GmbH |
| e² studio - information for RZ Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
|
7 items
|
||
样例程序
样例程序
筛选
|
||
|---|---|---|
| 类型 | 文档标题 | 日期 日期 |
| 示例代码 |
[Software=RZ Software Development Kit],[Toolchains=GNU Arm Embedded]
应用:
工业
Compiler:
GNU ARM Embedded
Function:
Application Example, BSP, HMI, I/O or Pin, Memory, OS, Other peripherals, Software Package, Timer
IDE:
e2 studio
|
|
| 示例代码 | ZIP 1.00 MB IDE: e2 studio | |
| 示例代码 | ZIP 7.66 MB Compiler: GNUARM-NONE IDE: e2 studio | |
| 示例代码 | ZIP 2.80 MB 日本語 Compiler: ARMCC, GNUARM-NONE, ICCARM IDE: DS-5, e2 studio, IAR EWARM | |
| 示例代码 | ZIP 1.04 MB Compiler: GNUARM-NONE IDE: e2 studio | |
5 items
|
||
开发板与套件
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
