概览

RZ/G2L 微处理器配备 Cortex-A55^®（1.2GHz）CPU、16 位 DDR3L/DDR4 接口、使用 Arm^® Mali-G31 的 3D 图形引擎以及视频编解码器（H.264）。另外，这款微处理器还配备大量接口，如：摄像头输入、显示输出、USB 2.0 和千兆以太网，因此，特别适用于入门级工业人机界面（HMI）和拥有视频功能的嵌入式设备等应用。

RZ/G2L 还与封装兼容，并与嵌入 AI 加速器的 RZ/V2L 引脚兼容。
因此， RZ/G2L 用户无需修改 PCB 便可轻松升级到 RZ/V2L 以获得额外的 AI 功能，从而保持较低的迁移成本。

作为该产品的软件平台，瑞萨电子提供经验证的 Linux 软件包，其中包含该产品的 Linux 内核、中间件驱动程序和基础软件。经验证的 Linux 软件包由瑞萨电子验证并提供。（如需 Android™ 和其他操作系统的技术支持，请联系您当地的销售代表或分销商）。

Android 是 Google LLC 的商标。

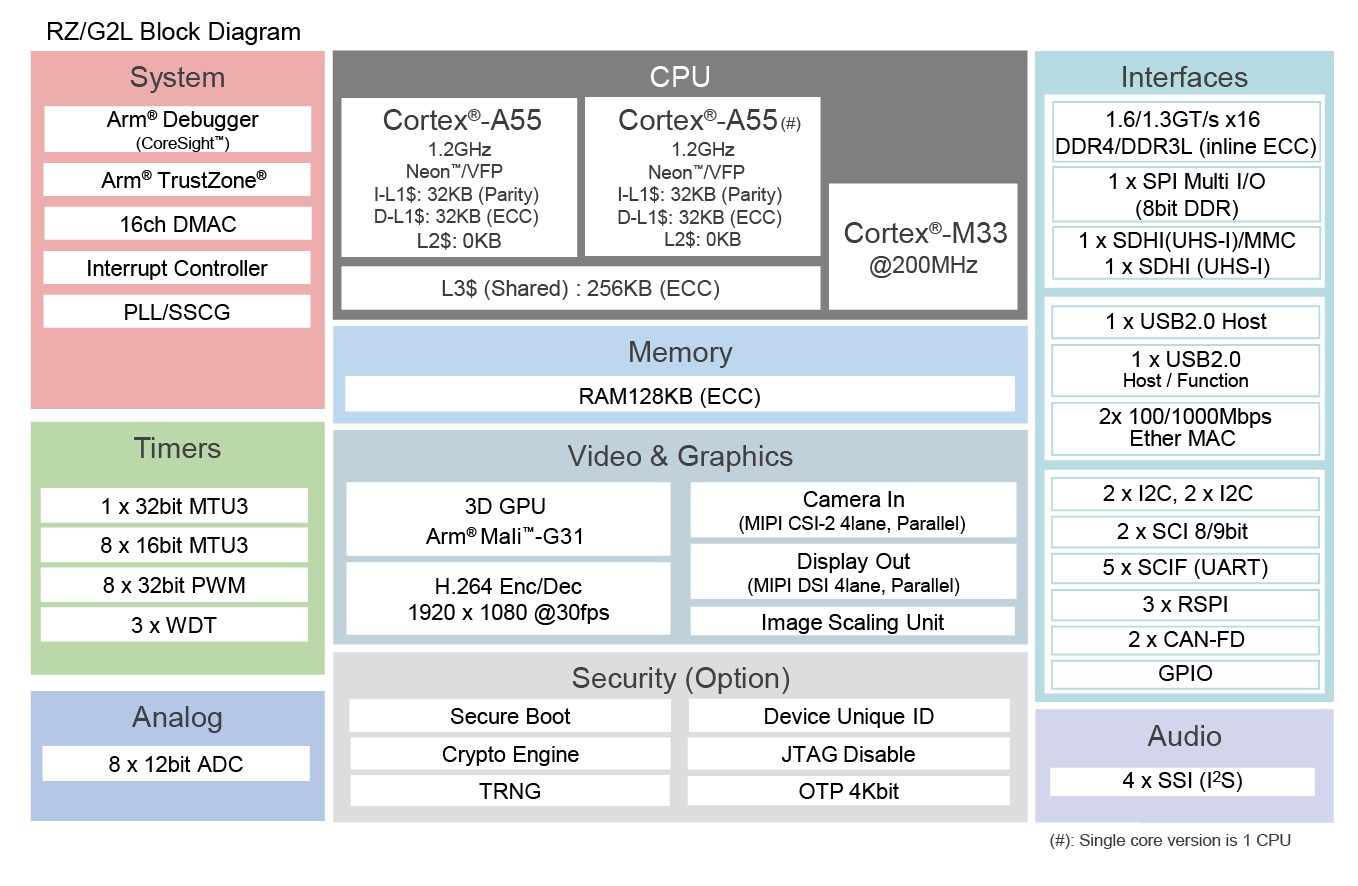

Cortex-A55（双核或单核）
Cortex-M33
3D 图形引擎（Arm^® Mali-G31）
视频编解码器 (H.264)
摄像头接口（MIPI-CSI 或 Parallel-IF）
显示器接口（MIPI-DSI 或 Parallel-IF）
USB 2.0 接口双通道、SD 接口双通道
控制局域网络接口（可变速率的控制局域网络）
千兆以太网接口 × 2
内存错误检测/纠正（ECC）
DDR4 或 DDR3L 内存接口
BGA 封装（15mm x 15mm，21mm x 21mm）

工业 HMI + 视频
对讲机/门铃
POS 终端
家电
家用安防摄像头

文档

设计和开发

软件与工具

Software title	Software type	公司

RZ MPU Graphics Library Evaluation Version for RZ/G2L and RZ/G2LC RZ MPU Graphics Library for RZ/G2L and RZ/G2LC. You can use the graphics function on them by building according to the integration guide which is enclosed in the download file.	Software Package	瑞萨电子
RZ/G Multi-OS Package RZ/G Multi-OS Package is the software package consisting of Flexible Software Package (FSP) as software package for Renesas MCU with Arm® Cortex-M Core and OpenAMP as standardization API of framework for interprocessor communication for developing multi OS solution. 下载 Getting Started with Flexible Software Package Setting GPIO with Flexible Software Package	Software Package	瑞萨电子
RZ MPU Video Codec Library Evaluation Version for RZ/G2L This product provides the RZ MPU Video Codec Library for the RZ/G2L. You can use the decoder/encoder on them by building according to the integration guide which is enclosed in the download file.	Software Package	瑞萨电子
RZ/G Verified Linux Package [5.10-CIP] Linux Packages for MPUs of the RZ/G2 Group. Functions of this products have been verified and regular maintenance is also provided.	Software Package	瑞萨电子
RZ MPU Security Package (Linux OS) Security Package for RZ MPUs. This package is used in combination with the Linux package provided for each device.	Software Package	瑞萨电子
RZ Smart Configurator RZ Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.	Solution Toolkit	瑞萨电子
RZ MPU HTML5 (Gecko) Package for Verified Linux Packages [5.10-CIP] HTML5 (Gecko) package for RZ/G. This package is used in combination with the Linux package provided for the device.	Software Package	瑞萨电子
Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products. 下载 RA Family, RX Family, RL78 Family, RZ Family HS300x Sample Software RA Family, RX Family, RL78 Family, RZ Family HS300x Sample Software Manual RA Family, RX Family, RL78 Family, RZ Family HS400x Sample Software Manual RA Family, RX Family, RL78 Family, RZ Family HS400x Sample Software Sensor Software Combination Manual	Sensor	瑞萨电子
e² studio - information for RZ Family Eclipse-based Renesas integrated development environment (IDE).	IDE and Coding Tool	瑞萨电子
RZ MPU WebUI Package for Verified Linux Package [5.10-CIP] This product provides a WebUI package for RZ MPUs: WebUI is a web-based management tool that provides a user interface (UI) to users over a network.	Software Package	瑞萨电子
RZ MPU HTML5 (Chromium) Package for Verified Linux Packages [5.10-CIP] This product provides the HTML5 (Chromium) Package as a GUI framework for RZ/G2L, RZ/G2LC, and RZ/V2L. 下载 HTML5(Chromium109) packages V1.0.0 for RZ/G Verified Linux Package V3.0.6 (RTK0EF0193Z00000ZJ_v1.0.0.zip)Open source packages (Chromium109) for RZ/G Verified Linux Package V3.0.6 (oss_pkg_chromium109_v1.0.0.7z)	Software Package	瑞萨电子
RZ/G series HMI SDK (GitHub) The HMI SDK enables easy and rapid development of HMI applications using Renesas' RZ/G series evaluation kits. Additionally, it offers a range of sample applications free of charge.	Software Package	瑞萨电子
SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.	Emulator	SEGGER
13 items

软件下载

RZ/G2L-EVKIT

Evaluation

了解更多

RZ/G2L MPU 评估板套件

该评估板套件适用于评估 RZ/G2L。 RZ/G2L 评估板套件由模块板（SOM）和扩展板组成。模块板符合 SMARC v2.1 标准。

目录
- RZ/G2L 模块板（SMARC2.1）
- 公共载板（用于 RZ/G2L、RZ/G2LC、RZ/G2UL 和 RZ/V2L）
- USB 电缆（USB Type-A- Micro USB...

特色文件:

RZ/G2L Evaluation Board Kit Quick Start Guide

RZ/G2L, RZ/V2L SMARC Module Board User's Manual: Hardware

RZ/G2L-SBC

Evaluation

了解更多

RZ/G2L 单板计算机

RZ/G2L-SBC 电路板是一款高能效、支持图像功能的开发板，采用流行的单板计算机（SBC）形式，具有支持良好的扩展接口。这款基于瑞萨电子 RZ/G2L 处理器的开发平台非常适用于开发经济高效的 HMI、工业、机器人和许多节能设计应用程序。 RZ/G2L 处理器具有两个 1.2GHz Arm^® Cortex-A55^® 内核、一个...

特色文件:

RZ/G2L-SBC Quick Start Guide

RZ/G2L-SBC, Single Board Computer User's Manual for Hardware and Software

AS019PMODEXP-POCZ

Development

了解更多

基于 RZ MPU 的自动化系统开发套件

AS019PMODEXP-POCZ Pmod™ 扩展板带有一个 RZ/G2L MPU 平台，该平台作为家庭安全系统的核心，通过 Pmod 传感器收集空气质量、气体、温度和湿度数据。在检测危险时，它可控制继电器以确保安全，触发摄像机流媒体传输到本地 HDMI 显示器，并可通过基于 QT 的图形用户界面（GUI）系统进行系统重置和整体控制。

特色文件:

AS019PMODEXP-POCZ Hardware User Manual

e-CAM20_CURZ

Development

了解更多

e-con e-CAM20 – RZ/V2L Full HD Global Shutter Camera

e-CAM20_CURZ is a Full HD color global shutter camera based on Renesas RZ/V2L, RZ/G2L, RZ/G2LC, and RZ/G2UL processors. This camera is based on the 1/2.6" AR0234CS CMOS...

e-CAM21_CURZ

Development

了解更多

e-con e-CAM21 – RZ/V2L Full HD Ultra-Low Light Camera

e-CAM21_CURZ is a Full HD color ultra-low light camera for Renesas RZ/V2L, RZ/G2L, RZ/G2LC, and RZ/G2UL processors. This camera is based on the Sony STARVIS™ IMX462...

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块

产品选项

Processing table

	Longevity	Carrier Type	Family Name	Series Name	Group Name	CPU Architecture	Main CPU	Sub CPU	Floating Point Unit	Bit Length	Program Memory (KB)	Data Flash (KB)	RAM (KB)	ECC SRAM	Pkg. Code	Lead Count (#)	Pkg. Type	Pitch (mm)	Pkg. Dimensions (mm)	Number of Supply Voltage(s) (#)	Supply Voltage (V)	I/O Ports	DMAC or DTC	DMA (ch)	Temperature Sensor (ch) (#)	Power-On Reset	Watchdog Timer (ch)	External Memory Bus (bit)	DRAM I/F	3D GPU	Accelerator	Temp. Range	External Interrupt Pins (#)	LVD or PVD	Operating Freq (Max) (MHz)	Operating Freq of Sub CPU (Max)	Sub-clock (32.768 kHz)	On-chip Oscillator	Ethernet speed	Ethernet (ch)	EtherCat (ch) (#)	USB Ports (#)	USB FS (host ch/device ch)	USB HS (host ch/device ch)	USB SS (host ch/device ch)	PCI Express (generation and ch)	SCI or UART (ch)	SPI (ch)	QSPI (ch)	OSPI (ch)	I2C (#)	I3C (ch)	CAN (ch)	CAN-FD (ch)	Wireless	IrDA	LIN (#)	SDHI (ch)	High Resolution Output Timer	PWM Output (pin#)	32-Bit Timer (ch)	16-Bit Timer (ch) (#)	8-Bit Timer (ch)	Standby operable timer	Asynchronous General Purpose Timer / Interval Timer (ch)	RTC	16-Bit A/D Converter (ch)	14-Bit A/D Converter (ch)	12-Bit A/D Converter (ch)	10-Bit A/D Converter (ch)	24-Bit Sigma-Delta A/D Converter (ch)	16-Bit D/A Converter (ch)	12-Bit D/A Converter (ch)	10-Bit D/A Converter (ch) (#)	8-Bit D/A Converter (ch)	Analog Comparator (ch)	OPAMP (ch) (#)	PGA (ch)	Capacitive Touch Sensing Unit (ch)	Graphics LCD Controller	MIPI Interfaces (DSI) (ch)	MIPI Interfaces (CSI) (ch)	Camera I/F (Parallel)	Image Codec	2D Drawing Engine	Segment LCD Controller	SSI (ch)	Security & Encryption	Debug Interface	Moisture Sensitivity Level (MSL)	Price (USD) \| 1ku	购买 / 样片
(16) 有效 (0) 无效/NRND/LTB	最大值 The duration date of a product in the Product Longevity Program (PLP). 最小值 The duration date of a product in the Product Longevity Program (PLP).	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 1 + Cortex-M33 x 1 Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-M33	Double	最大值最小值	最大值最小值	最大值 Data Flash memory size. 最小值 Data Flash memory size.	最大值 Random access memory size. 最小值 Random access memory size.	是	pkg_20050 pkg_20051	最大值最小值	LFBGA	最大值 Spacing between package leads, from center to center. 最小值 Spacing between package leads, from center to center.	15 x 15 x 1.4 21 x 21 x 1.4	最大值最小值	最大值 Power supply voltage or voltage range of the device. 最小值 Power supply voltage or voltage range of the device.	最大值 Number of input/output ports. 最小值 Number of input/output ports.	DMAC	最大值最小值	最大值最小值	否	最大值最小值	16	DDR3L-1333 DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	最大值最小值	否	最大值 Operating frequency range. 最小值 Operating frequency range.	最大值最小值	否	否	10M/100M/1G	最大值最小值	最大值最小值	最大值最小值	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值 Number of I2C channels. 最小值 Number of I2C channels.	最大值最小值	最大值 Number of controller area netowork (CAN) interface channels. 最小值 Number of controller area netowork (CAN) interface channels.	最大值最小值	No	否	最大值 Number of local interconnect network (LIN) channels. 最小值 Number of local interconnect network (LIN) channels.	最大值最小值	No	最大值最小值	最大值最小值	最大值最小值	最大值最小值	否	最大值最小值	否	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	最大值最小值	No	最大值最小值	最大值最小值	16-bit	H.264 enc/dec	否	No	最大值最小值	AES Arm TrustZone ECC Hash No RSA Secure boot TRNG	JTAG/SWD	3	最大值 1000件估价，价格可能会有变动最小值 1000件估价，价格可能会有变动	获取样片购买 / 报价
器件号	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator					Logical Operator	Logical Operator		Logical Operator		Logical Operator				Logical Operator			Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator			Logical Operator	Logical Operator	Logical Operator				Logical Operator	Logical Operator	Logical Operator	Logical Operator									Logical Operator	Logical Operator			Logical Operator					Logical Operator		Logical Operator														Logical Operator			Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator		Logical Operator
R9A07G044L24GBG#BC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片	2037 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20051	551	LFBGA	0.8	21 x 21 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	No	JTAG/SWD	3		获取样片, 购买 / 报价
R9A07G044L14GBG#BC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片	2037 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 1 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20051	551	LFBGA	0.8	21 x 21 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	No	JTAG/SWD	3	16.82406	获取样片, 购买 / 报价
R9A07G044L23GBG#BC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2037 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20050	456	LFBGA	0.5	15 x 15 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	No	JTAG/SWD	3	13.37174	获取样片, 购买 / 报价
R9A07G044L13GBG#BC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2037 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 1 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20050	456	LFBGA	0.5	15 x 15 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	No	JTAG/SWD	3		获取样片, 购买 / 报价
R9A07G044L24GBG#AC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2032 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20051	551	LFBGA	0.8	21 x 21 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	2	1	16-bit	H.264 enc/dec	否	No	4	No	JTAG/SWD	3	15.5375	获取样片, 购买 / 报价
R9A07G044L14GBG#AC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2032 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 1 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20051	551	LFBGA	0.8	21 x 21 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	No	JTAG/SWD	3	18.08567	获取样片, 购买 / 报价
R9A07G044L23GBG#AC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2032 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20050	456	LFBGA	0.5	15 x 15 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	No	JTAG/SWD	3	11.81252	获取样片, 购买 / 报价
R9A07G044L13GBG#AC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2032 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 1 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20050	456	LFBGA	0.5	15 x 15 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	No	JTAG/SWD	3	12.89718	获取样片, 购买 / 报价
R9A07G044L28GBG#AC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2032 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20051	551	LFBGA	0.8	21 x 21 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	JTAG/SWD	3	17.93727	获取样片, 购买 / 报价
R9A07G044L28GBG#BC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片	2037 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20051	551	LFBGA	0.8	21 x 21 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	JTAG/SWD	3	17.93727	获取样片, 购买 / 报价
R9A07G044L27GBG#AC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2032 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20050	456	LFBGA	0.5	15 x 15 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	JTAG/SWD	3	14.03061	获取样片, 购买 / 报价
R9A07G044L27GBG#BC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2037 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 2 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20050	456	LFBGA	0.5	15 x 15 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	JTAG/SWD	3		获取样片, 购买 / 报价
R9A07G044L18GBG#AC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片立即购买	2032 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 1 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20051	551	LFBGA	0.8	21 x 21 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	JTAG/SWD	3	17.38788	获取样片, 购买 / 报价
R9A07G044L18GBG#BC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片	2037 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 1 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20051	551	LFBGA	0.8	21 x 21 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	JTAG/SWD	3	17.38788	获取样片, 购买 / 报价
R9A07G044L17GBG#AC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片	2032 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 1 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20050	456	LFBGA	0.5	15 x 15 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	JTAG/SWD	3	11.81252	获取样片, 购买 / 报价
R9A07G044L17GBG#BC0 circle有效 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model 可提供样片	2037 7月	Tray	RZ	RZ/G	G2L	Arm	Cortex-A55 x 1 + Cortex-M33 x 1	Cortex-M33	Double	64	0	0	128	是	pkg_20050	456	LFBGA	0.5	15 x 15 x 1.4	5	2.97 - 3.63	123	DMAC	16	1	否	3	16	DDR3L-1333, DDR4-1600 (16-bit)	Arm Mali-G31	Video Codec	Ta = -40 to +85°C	8	否	1200	200	否	否	10M/100M/1G	2	0	2	( 2 / 2 )	( 2 / 2 )	( 0 / 0 )	No	7	3	0	1	4	0	2	2	No	否	0	2	No	0	1	8	0	否	0	否	0	0	8	0	0	0	0	0	0	0	0	0	0	No	1	1	16-bit	H.264 enc/dec	否	No	4	AES, Arm TrustZone, ECC, Hash, RSA, Secure boot, TRNG	JTAG/SWD	3	12.97914	获取样片, 购买 / 报价

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product
