5.5V 5A Compact Synchronous Buck Regulator Evaluation Board
The RTKA808015DE0000BU evaluation board is a 5A synchronous buck regulator with an input range of 2.7V to 5.5V. The board evaluates the performance of the RAA808015A...
概览
简介
RAA808015 是一款小型单通道 DC/DC 同步降压稳压器。 为满足 2.7~5.5V 输入轨和 5A 负载应用的要求，稳压器需要较高的开关频率，以尽量减小电感器尺寸、增强瞬态响应性能并提高轻负载效率。 该稳压器采用 COT IP 设计，可提高瞬态响应性能，还采用 PFM 技术，可提高轻负载效率。 它有两种衍生产品，RAA808015A（DEM）和 RAA808015B（Force PWM），可减少 BOM 数量，无需额外的组件。 RAA808015A/B 采用 10 引脚 2*2.5 QFN 封装。

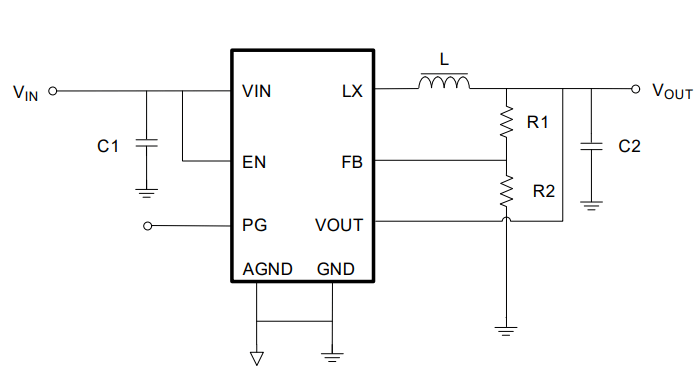

特性
- 2.7V 至 5.5V 工作输入电压范围
- 5A 输出电流
- 输出电压可调至 0.6V
- 100% 压差占空比
- 20mΩ 和 16mΩ 内部功率 MOSFET 开关管
- 高开关频率（1.8MHz）
- EN 用于电源排序
- 操作模式选项：RAA808015A（DEM）和 RAA808015B（强制 PWM）
- 固定软启动时间
- 逐周期过流保护（3次）
- 具有打嗝模式的 OCP 和 SCP
- 输入欠压保护 (UVLO)
- 过温保护
- 小型 QFN 2x2.5 封装
产品对比
应用
- 高功率密度分布式电源系统
- 用于 DSP/ASIC/MCU 核心的 POL
- 云和网络
- 电信
- 工业
- 医疗设备
