时钟和时序

射频同步器和 JESD204B/C 时钟抖动衰减器提供业界领先的相位噪声，以实现最佳 4G/5G 射频 EVM 性能。对于增强型通用公共射频接口 (eCPRI) 和 CPRI 应用来说，其具有出色的近端相位噪声，而对于高密度射频来说，其具有高扇出。

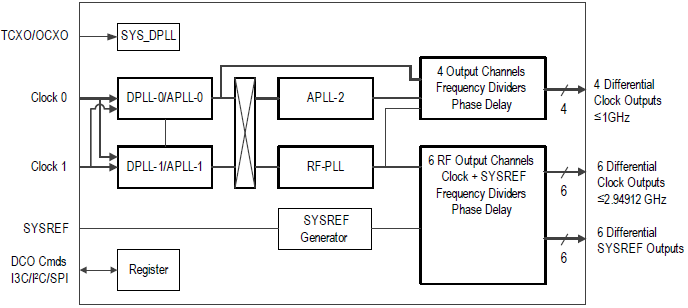

单芯片射频同步器件集成数字锁相环 (DPLL) 和高性能射频锁相环，并支持 PTP (精确计时协议、IEEE 1588)、同步以太网、1PPS 输入和输出信号以及紧密相位对齐。

此类器件几乎消除了输入参考时钟内的所有噪声，使其可用于数据转换器参考时钟的生成和同步。

产品选型表

    Processing table
    Outputs (#)
    Inputs (#)
    Input Freq (MHz)
    DPLL Channels (#)
    JESD204B/C Compliant
    Output Freq Range (MHz)
    Frequency Plan
    Output Skew (ps)
    Adjustable Phase
    Noise Floor (dBc/Hz)
    Phase Noise Supports GSM
    Output Type
    Synthesis Mode
    Input Ref. Divider Resolution (bits)
    Feedback Divider Resolution (bits)
    Output Divider Resolution (bits)
    Supply Voltage (V)
    Input Redundancy
    Advanced Features
    器件号
    8V19N850
    Radio Synchronizer    		 16 2 0.000001 - 1000 2 Yes 0.000001 - 1000 2500 / Output_Divider, 2949.12 / Output_Divider, 3670-3868 / Output_Divider 74 Yes -165 Yes LVCMOS, LVDS, LVPECL Fractional, Integer 3 32 7 3.3, 2.5, 1.8 Digital holdover, Hitless switch, Input Monitor, Phase-slope limiting 1PPS, DCO, IEEE 1588, JESD204B, JESD204C, T-BC, T-TSC Class C, eEEC
    8V19N882
    JESD204B/C Clock Jitter Attenuator    		 16 2 0.00375 - 2000 0 Yes 0.192 - 6000 3932.16 / Output_Divider 100 Yes -160 Yes LVDS, LVPECL Integer 15 15 7 3.3, 2.5, 1.8 Auto-switch, Holdover, Input Monitor, Manual input switch Holdover, Input Switching, JESD204B
    8V19N470
    Clock Jitter Attenuator    		 10 2 0.008 - 307.2 0 No 15.36 - 2949.12 2457.6 / Output_Divider, 2500 / Output_Divider, 2949.12 / Output_Divider 41 Yes -161 Yes LVDS, LVPECL Integer 15 15 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N472
    Clock Jitter Attenuator    		 11 2 0.008 - 307.2 0 No 15.36 - 2949.12 2457.6 / Output_Divider, 2500 / Output_Divider, 2949.12 / Output_Divider 28 Yes -158.7 Yes LVDS, LVPECL Integer 15 15 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, Phase Delay, Programmable Clock
    8V19N474
    JESD204B/C Clock Jitter Attenuator    		 12 2 0.008 - 250 0 No 15.625 - 2500 2400 / Output_Divider, 2500 / Output_Divider 70 Yes -161 Yes LVDS, LVPECL Fractional, Integer 15 15 8 3.3 Auto-switch, Input Monitor, Manual switch Holdover, Input Switching, Phase Delay
    8V19N480
    JESD204B/C Clock Jitter Attenuator    		 18 4 30.72 - 500 0 Yes 20.48 - 1474.56 2949.12 / Output_Divider 37 Yes -161 Yes LVDS, LVPECL Integer 12 12 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N490
    JESD204B/C Clock Jitter Attenuator    		 18 4 1.92 - 2000 0 Yes 18.432 - 2949.12 2949.12 / Output_Divider 100 Yes -160 Yes LVDS, LVPECL Integer 12 12 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N490-19
    JESD204B/C Clock Jitter Attenuator    		 18 4 1.92 - 2000 0 Yes 12.288 - 1966.08 1966.08 / Output_Divider 100 Yes -160 Yes LVDS, LVPECL Integer 12 12 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N490-24
    JESD204B/C Clock Jitter Attenuator    		 18 4 1.92 - 2000 0 Yes 15.36 - 2457.6 2457.6 / Output_Divider 100 Yes -160 Yes LVDS, LVPECL Integer 12 12 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N490A
    JESD204B/C Clock Jitter Attenuator    		 18 4 1.92 - 2000 0 Yes 18.432 - 2949.12 2949.12 / Output_Divider 100 Yes -160 Yes LVDS, LVPECL Integer 12 12 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N490B
    JESD204B/C Clock Jitter Attenuator    		 18 4 1.92 - 2000 0 Yes 18.432 - 2949.12 2949.12 / Output_Divider 100 Yes -160 Yes LVDS, LVPECL Integer 12 12 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N491-24
    JESD204B/C Clock Jitter Attenuator    		 15 2 1.92 - 2000 0 Yes 12.288 - 2457.6 2457.6 / Output_Divider 100 Yes -160 Yes LVDS, LVPECL Integer 12 12 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N491-36
    JESD204B/C Clock Jitter Attenuator    		 18 4 30.72 - 2000 0 Yes 18.432 - 3686.4 3686.4 / Output_Divider 100 Yes -160 Yes LVDS, LVPECL Integer 12 12 8 3.3 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N492
    JESD204B/C Clock Jitter Attenuator    		 15 2 1.92 - 2000 0 Yes 18.432 - 2949.12 2949.12 / Output_Divider 0 Yes -160 Yes LVDS, LVPECL Integer 12 12 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    8V19N492-39
    JESD204B/C Clock Jitter Attenuator    		 15 2 30.72 - 2000 0 Yes 19.6608 - 3932.16 3932.16 / Output_Divider 100 Yes -160.2 Yes LVDS, LVPECL Integer 12 12 8 3.3
    Auto-switch, Holdover, Input Monitor, Manual switch and more...
    		 Holdover, Input Switching, JESD204B, Phase Delay, Programmable Clock
    RC38612
    Radio Access Network Equipment Synchronizer - Six Channels    		 24 10 0.001 - 1000 6 Yes 0.0000005 - 1000 50 Yes -158 No HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL Fractional, Integer 4 48 32 3.3, 2.5, 1.8 Digital holdover, Hitless switch, Input Monitor, Phase-slope limiting
    1PPS, DCO, IEEE 1588, JESD204B, JESD204C, PWM Encoder/Decoder and more...
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    文档标题
    		类型 日期
    RF Timing Family Product Overview
    PDF 331 KB     		概览
    1 item
    8V19N880, 8V19N882 Low-Power 4G & 5G RF Clock Jitter Attenuators

    The 8V19N880 and 8V19N882 JESD204B/C clock jitter attenuators deliver low phase noise and exceptional jitter performance as low as 74fs RMS and -90dB spurious attenuation for mission-critical industrial data converter applications in wireless radio, test and measurement, instrumentation, and high-performance imaging. They support frequencies up to 3932.16MHz (up to 6GHz with an external VCO) and feature 16 and 18 integrated differential outputs to deliver a first-in-class balance of high performance, low voltage and low power consumption with 1.8V support.

    Video List
    8V19N880, 8V19N882 Low-Power 4G & 5G RF Clock Jitter Attenuators
    8V19N850 5G Radio Synchronizer
