5L35023 VersaClock 3S Programmable Clock Development Kit
The DEV5L35023 programmable clock development kit is designed to support the 5L35023 VersaClock 3S device. It provides a convenient way of configuring and programming...
概览
简介
The 5L35023 is a VersaClock® programmable clock generator designed for low-power, consumer, and high-performance PCI Express applications. The 5L35023 device is a three-PLL architecture design, and each PLL is individually programmable and allows for up to five unique frequency outputs.
The 5L35023 has built-in unique features such as Proactive Power Saving (PPS), Performance-Power Balancing (PPB), Overshot Reduction Technology (ORT), and Extreme Low Power DCO. An internal OTP memory allows the user to store the configuration in the device without programming after power up, and then program the 5L35023 again through the I²C interface.
The device has programmable VCO and PLL source selection to allow the user to do power-performance optimization based on the application requirements. It also supports three single-ended outputs and two pairs of differential outputs that support LVCMOS and LPHCSL. A low-power 32.768kHz clock is supported with less than 2μA current consumption for the system RTC reference clock.
特性
- Configurable OE pin function as OE, PD#, PPS, or DFC control function
- Configurable PLL bandwidth/minimizes jitter peaking
- PPS: Proactive Power Saving features save power during the end device power down mode
- PPB: Performance- Power Balancing feature allows minimum power consumption based on required performance
- DFC: Dynamic Frequency Control feature allows up to 4 different frequencies to switch dynamically
- Features < 65µA ultra-power-down
- Outputs: 1MHz to 125MHz
- Spread Spectrum clock support to lower system EMI
- I²C interface
- Supported by Renesas' Timing Commander™ software tool
产品对比
应用
- Embedded computing devices
- Consumer application crystal oscillator replacements
- SmartDevice, handheld, and consumer applications
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| Timing Commander Timing Commander™ 是一个基于 Windows™ 的创新软件平台，通过这个平台，系统设计工程师可以通过直观且灵活的图形用户界面 (GUI) 对精密的计时设备进行配置、编程和监控。
|
Code Generator | 瑞萨电子 |
1 item
|
||
开发板与套件
Evaluation Board for 5L35023 VersaClock 3S
This is the evaluation board for the Renesas 5L35023 VersaClock 3S programmable clock generator. With RMS phase jitter less than 3 picoseconds over the full 12 kHz to...
RZ/V2H 四核 视觉 AI MPU 评测套件
RZ/V2H AI MPU 评测套件 (RTK0EF0168C04000BJ) 用于评测瑞萨电子 RZ/V2H 四核 视觉 AI MPU。 该套件包括 CPU 板和扩展（EXP)板。 支持 RZ/V2H 标准软件包，能轻松实现低功耗 AI 推理和视频流等软件开发任务。 此外，这款评测套件还支持图像信号处理器 (ISP)、3D 图形引擎...
RZ/G3S 评估板套件
该评估板套件适用于评估 RZ/G3S。 RZ/G3S 评估板套件由模块板 (SOM) 和扩展板组成。 模块板符合 SMARC v2.1 标准。
- 目录
- RZ/G3S SMARC 模块板 (SMARC2.1)
- RZ SMARC 系列扩展板 II
- RZ SMARC 系列 JTAG 适配器电缆
- USB Type-A 转 USB Micro B...
RZ/V2N 四核视觉 AI MPU 评测套件
RZ/V2N AI MPU 评测套件 (RTK0EF0186C03000BJ) 用于评测我们的 RZ/V2N 四核 视觉 AI MPU。 该套件包括一块 CPU 评测板、扩展 (EXP) 板和两块子板。 我们提供了 AI 软件开发包 (AI SDK) 作为该评测套件的软件开发环境。 它支持对低功耗 AI 推理...
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table

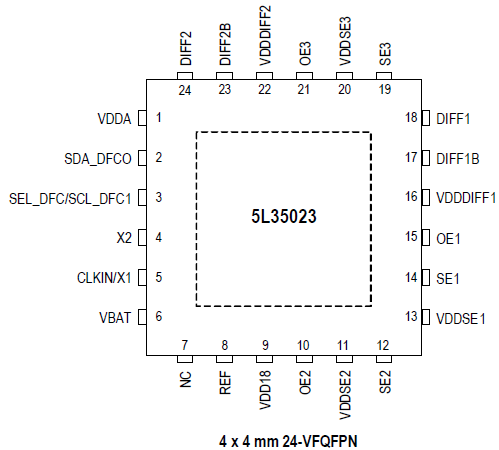

| VFQFPN | 24 | Tray | 1 | 0 | 490 | Yes | e3 Sn | -40 to +85°C | 1.548 | 获取样片, | |
| VFQFPN | 24 | Reel | 1 | 2500 | 0 | Yes | e3 Sn | -40 to +85°C |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
视频和培训
VersaClock 3S Low-Power Programmable Clock Generator ICs
A brief introduction to IDT's (acquired by Renesas) VersaClock 3S programmable clock generator IC features, benefits, and applications. These clock timing devices provide an optimal combination of performance, power, and flexibility.
IDT's VersaClock 3S devices meet the performance requirements of widely used standards including PCI Express® Gen 1/2/3. These new devices are ideal for computing systems, digital cameras, IP set-top boxes, home entertainment, audio systems, multi-function printers, IoT gateways, small-business storage, smart devices, medical equipment, and automotive infotainment.
