概览

瑞萨 RA4W1 是RA4产品系列中首款完全兼容蓝牙5的单芯片MCU，支持 2Mbps 高数据带宽及远距离通信，为需要高性能 Arm® Cortex®-M4 内核的物联网应用提供支持。RA4W1 采用高效低功耗工艺，并由一个开放且灵活的生态系统概念提供支持，即基于 FreeRTOS 的灵活配置软件包 (FSP)。RA4W1 MCU 可提供蓝牙 5.0 低功耗远距和网状网络等全功能支持，提供出色的接收性能。RA4W1 适用于需要安全性、大容量 RAM 和低功耗的物联网应用。

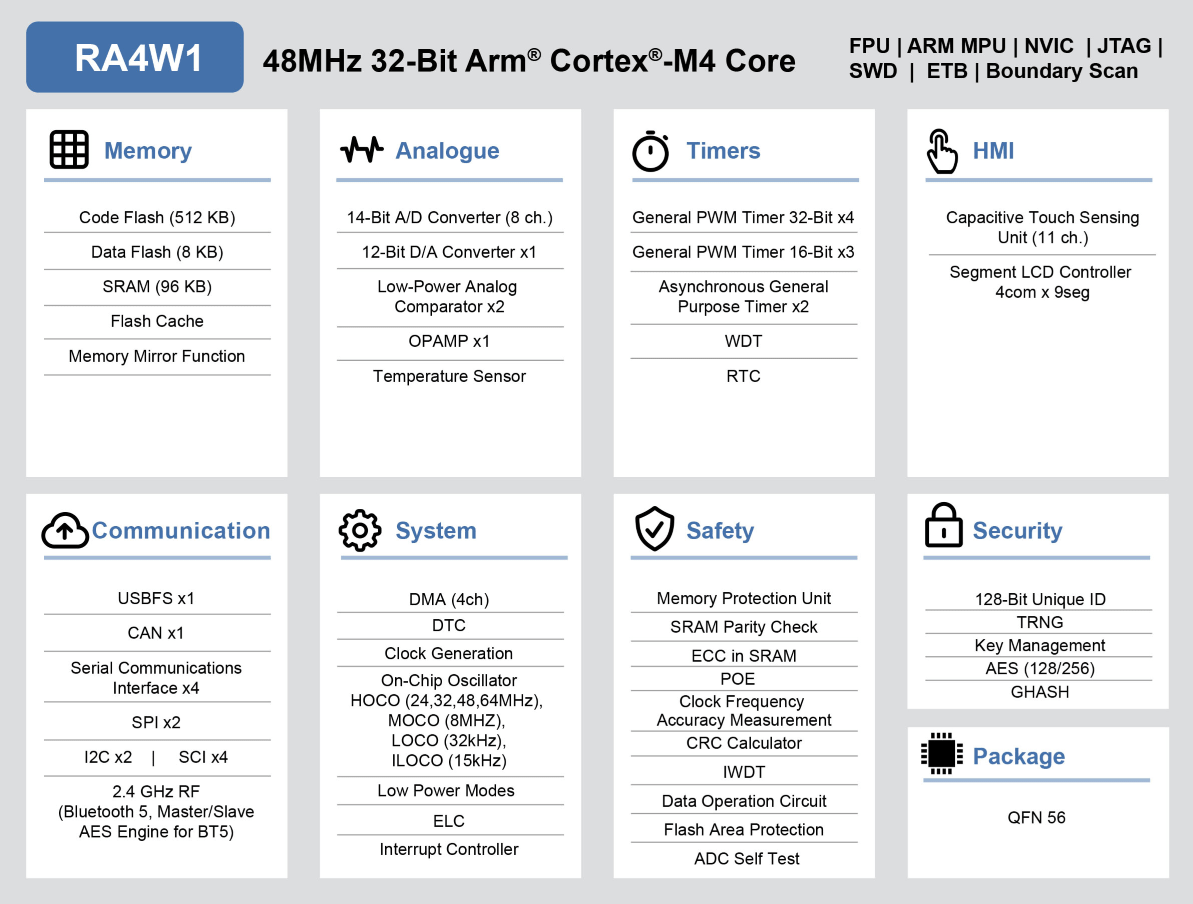

RA4W1 Block Diagram
RA4W1 Block Diagram
  • 48MHz Arm® Cortex®-M4
  • 512KB 闪存以及 96KB SRAM
  • 8KB 数据闪存，提供与 EEPROM 类似的存储数据功能
  • 7 mm x 7 mm QFN 56 引脚封装
  • 电容触摸单元
  • 段式 LCD 控制器
  • 全速 USB 2.0，支持主机模式和设备模式
  • CAN 2.0B
  • SCI（UART、简单 SPI、简单 I2C）
  • SPI/ I2C 多主机接口
  • 2.4 GHz 无线电，支持蓝牙5
  • LE 1M、2M、Coded PHY 及 LE 广播通信扩展

应用

  • 安全装置（火灾探测、防盗检测、面板控制）
  • 表计类产品（电力，自动抄表）
  • 工业应用（机器人、开门器、缝纫机、自动售货机、UPS）
  • 健康管理和可穿戴式人体传感器
  • 智能家居和遥控玩具

文档

设计和开发

软件与工具
QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors
In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
下载
Using QE and FSP to Develop Capacitive Touch Applications电容式传感器微单片机 CTSU 电容式触摸电极设计指南 Rev.2.00Capacitive Sensor MCU Capacitive Touch Noise Immunity GuideCapacitive Sensor MCU Capacitive Touch Software Filter Sample ProgramCapacitive Sensor MCU Capacitive Touch Software Filter Sample Program
Capacitive Sensor MCU QE for Capacitive Touch Advanced mode Parameter GuideCapacitive Sensor Microcontrollers CTSU Capacitive Touch Introduction Guide
 Solution Toolkit 瑞萨电子
RA 可扩展性强的配置软件包 (FSP)
FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
下载
Securing Data at Rest Utilizing the Renesas Security MPU保护 IP 和敏感数据如何解决嵌入式物联网设计的6大安全挑战互联世界的安全RA Azure IoT Cloud Connectivity Solution
Migrating Projects to New FSP VersionInjecting Plaintext User Keys – Application ProjectRA family BLE sample applicationConverting Applications from e² studio to IAR or Keil for RA – Application NoteSecuring Data at Rest Utilizing the Renesas Security MPU
 Software Package 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
下载
[Flyer] E2仿真器[RTE0T00020KCE00000R]
 Emulator 瑞萨电子
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator 瑞萨电子
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) 瑞萨电子
Renesas Flash Programmer (Programming GUI)
闪存编程软件 [支持 MCU/MPU 和器件：RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery Family、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0]
 Programmer (Unit/SW) 瑞萨电子
QE for BLE: Development Assistance Tool for Bluetooth® Low Energy
Debugging support tool that specializes in Bluetooth® Low Energy system development [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
下载
RA4W1 Group Bluetooth LE Profile API Document User's ManualRA4W1 Group Bluetooth LE Profile API Sample CodeBluetooth LE microprocessor / module Profile Developer's Guide Application Note Rev.1.10
 Solution Toolkit 瑞萨电子
Sensor Software Modules for Renesas MCU Platforms
Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
下载
HS300x Sample application - Sample Code
 Sensor 瑞萨电子
e² studio - information for RA Family
Eclipse-based Renesas integrated development environment (IDE). [Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
IDE and Coding Tool 瑞萨电子
EZ-CUBE3
EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
 Emulator 瑞萨电子
SEGGER emWin GUI Library for Renesas RA Products
SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
 Imaging SEGGER
SEGGER J-Link and J-Trace PRO
The J-Link debug probes offer full support for RA Family MCUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
 Emulator SEGGER
IAR Embedded Workbench for Arm
IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
 IDE and Coding Tool IAR Systems
Arm® Keil® MDK
Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
 IDE and Coding Tool Arm® Keil® MDK Arm®
Add 2 hidden items
14 items

开发板与套件

EK-RA4W1 Kit

EK-RA4W1

评估
了解更多

RA4W1 MCU 群组评估套件

EK-RA4W1 评估套件可通过瑞萨电子的灵活配置软件包 (FSP) 和各种 IDE，帮助用户对 RA4W1 MCU 群组的特性轻松进行评估，并对嵌入系统应用程序进行开发。

入门

运行快速入门示例项目

  1. 用户可使用连接至 5V 电源的 micro USB 设备电缆，通过 USB 调试端口 (J11) 启动...
特色文件:
EK-RA4W1 – Quick Start Guide
EK-RA4W1 User's Manual
EK-RA4W1v1 - Design Package

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块
Diagram of ECAD Models

产品选择

    Processing table
    PLP
    Carrier Type
    CPU
    Operating Freq (Max) (MHz)
    Program Memory (KB)
    Data Flash (KB)
    RAM (KB)
    ECC SRAM
    Lead Count (#)
    Pkg. Type
    Pkg. Dimensions (mm)
    Pitch (mm)
    I/O Ports
    Supply Voltage (V)
    Temp. Range
    External Memory Bus (bit)
    Floating Point Unit
    DMAC or DTC
    External Interrupt Pins (#)
    USBFS (host ch/device ch)
    USB2.0 (ch)
    Ethernet (ch)
    CAN (ch)
    CAN-FD (ch)
    SCI or UART (ch)
    SPI (ch)
    I2C (#)
    I3C (ch)
    LIN (#)
    SSI (ch)
    QSPI Interface (#)
    OSPI (ch)
    SDHI (ch)
    Capacitive Touch Sensing Unit (ch)
    Camera I/F (Parallel)
    Segment LCD Controller
    Wireless
    IrDA
    32-Bit Enhanced Timer (ch)
    32-Bit Timer (ch)
    16-bit High Res Timer (ch)
    16-bit Enhanced Timer (ch)
    16-Bit Timer (ch) (#)
    8-Bit Timer (ch)
    Asynchronous General Purpose Timer (ch)
    Watchdog Timer (ch)
    24-Bit Sigma-Delta A/D Converter (ch)
    16-Bit A/D Converter (ch)
    14-Bit A/D Converter (ch)
    12-Bit A/D Converter (ch)
    10-Bit A/D Converter (ch)
    12-Bit D/A Converter (ch)
    8-Bit D/A Converter (ch)
    High-Speed Analog Comparator (ch)
    Low-Power Analog Comparator (ch)
    PGA (ch)
    OPAMP (ch) (#)
    Temperature Sensor (ch) (#)
    RTC
    LVD
    Security & Encryption
    Power-On Reset
    Sub-clock (32.768 kHz)
    On-chip Oscillator
    Debug Interface
    Replacement Product
    Replacement Remark
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    购买 / 样片
    器件号
    R7FA4W1AD2CNG#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		探讨中 Bulk (Tray) Arm Cortex-M4 48 512 8 96 是 56 QFN 7 x 7 x 0.9 0.4 34 1.8 - 3.6 Ta=-40 to 85°C No Single 4/1 12 ( 1 / 1 ) ( 0 / 0 ) 0 1 0 4 2 2 0 0 0 0 0 0 11 No Yes 是 否 0 4 0 0 3 0 2 2 0 0 8 0 0 1 2 0 1 0 1 1 是 是 128-bit Unique ID, AES(128/256), GHASH, TRNG 是 是 是 JTAG/SWD 3 5.024 获取样片,
