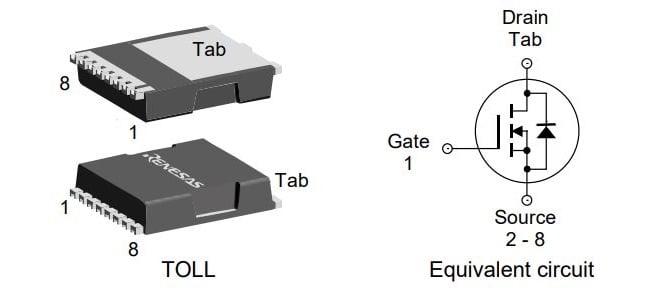

RBE039N15R1SZQ4

AI 生成的摘要: The TOLL 48V Power Line Evaluation Board enables precise control of 3-phase BLDC motors up to 4000 rpm, supporting input voltages from 12V to 48V and delivering up to 700W power with a maximum current of 70A. It integrates a power board with TOLL MOSFETs and a controller board based on the RL78/F14 microcontroller. Key features include overcurrent protection per phase, real-time temperature monitoring with overtemperature protection, and multiple error handling functions such as overvoltage, overspeed, motor timeout, and hall sensor errors. The board includes a heatsink for thermal management and supports testing motor control functions with detailed hardware specifications and firmware control methods. The package includes schematic diagrams, PCB layouts, bill of materials, and measurement results.

AI 生成的摘要: 48V automotive electrical systems enhance power capacity and efficiency by reducing current and cable size, enabling lighter and more compact vehicle designs. Renesas develops the REXFET-1 series MOSFETs with advanced wafer and package technologies, achieving ultra-low ON-resistance and high reliability for middle-voltage applications. The TOLL and TOLG packages optimize thermal performance, EMI behavior, and space, supporting up to 300A current. These MOSFETs meet automotive standards, improve switching efficiency, and reduce heat dissipation, facilitating the demands of electric and hybrid vehicles' powertrains and auxiliary systems.

AI 生成的摘要: Parallel connection of power MOSFETs requires careful management of current balance to prevent device damage. During conduction, differences in RDS(on) and wiring resistance cause current imbalance, which can be mitigated by selecting devices from the same lot and symmetrical layout design. During switching, variations in VGS(th) and inductance lead to transient current imbalance, necessitating similar countermeasures. Avalanche operation risks concentrating current on weaker devices. Parasitic oscillations occur more frequently in parallel configurations due to resonant circuits formed by gate and drain inductances and capacitances, which can be suppressed by adding gate resistors.

AI 生成的摘要: Absolute maximum ratings define safe operational limits for MOSFETs, including voltage, current, and temperature thresholds to prevent device damage. Electrical characteristics specify parameters like breakdown voltage, threshold voltage, on-resistance, capacitances, and switching times. Allowable channel dissipation decreases as case temperature rises, calculated by a specific formula. The safe operating area (SOA) outlines five limiting conditions: current rating, on-resistance, channel dissipation, secondary breakdown, and voltage rating, ensuring reliable MOSFET operation under various conditions.
