[Upgrade to Revision] Solution Toolkit QE for OTA V2.1.0: Development Assistance Tool for Cloud
(PDF | English, 日本語)
・RA Family RA6M4 and RA6M5 groups Support
-Added MCUboot Settings function
・Support FreeRTOS v202210.01-LTS-rx-1.3.1 (LTS #2)
・Support AzureRTOS 6.4.0_rel-rx-1.0.0
QE for OTA is a development assistance tool that enables easy trial of over-the-air (OTA) firmware updates with cloud services (AWS, Azure).
This product is a plug-in which extends the Renesas IDE "e² studio".
This product is available free of charge.
特性
- Enables easy introduction of RTOS projects
- Automates various cloud settings such as creating those for IoT devices
- Creating initial firmware required for OTA updates and support for the debugging and programming of devices
- Creating firmware updates, uploading the firmware to the cloud, and making settings required for OTA updates
发布信息
| Product Name | Latest Ver. | Released | Taget Device (Note1) | Details | Download(Note2) | Operating Environment |
|---|---|---|---|---|---|---|
| QE for OTA | V2.1.0 | Oct 31, 2024 | RX Family RL78 Family RA Family | See Release Note | Download | Operating Environment |
Notes
- For detailed support devices, refer to Target Devices
- Installing this Product >>
目标设备
设计和开发
相关评估板和套件
评估
RL78/G23-128p 快速原型开发板（RL78/G23-128p FPB）
RL78/G23-128p 快速原型开发板采用 RL78/G23 微控制器，是各种原型开发的理想选择。 它通过示例代码支持通过 Wi-Fi DA16600模块的 AWS 云连接、OTA 固件更新、LoRa 和基于 LoRaWAN 的无线通信等功能。 内置的仿真器电路相当于 E2 仿真器 Lite，无需额外工具即可进行编程和调试。 此外，它还具有 Arduino Mega、Pmod™ 和 Grove 接口，可连接所有微控制器引脚，并且具有高可扩展性。 它包括两个触摸按钮，使用 RL78/G23 独有的电容式传感器单元。 瑞萨电子还提供了一个 Arduino 库，支持在 Arduino...
开发
CK-RX65N
有效
Cloud Kit Based on RX65N MCU Group
The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services.
With multiple network connectivity options, the kit provides a seamless cloud connectivity experience to most of the global cloud...
入门
Renesas Starter Kit+ for RX65N-2MB
The Renesas Starter Kit+ for RX65N-2MB is the perfect starter kit for developers who are new to the RX65N (Code Flash 2MB, Pin Count 176-pin). The kit includes an LCD display module, on-chip debugging emulator, and integrated development environment so you can start evaluating the RX65N...
评估
Renesas RX65N Cloud Kit
The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers. You can easily provide Wi-Fi connectivity to Amazon Web Services (AWS) and Microsoft Azure (Azure) to help start developing IoT...
Recommended Documents:
开发
CK-RA6M5
有效
基于 RA6M5 MCU 系列的云套件
CK-RA6M5 云套件让用户安全地连接到云并且了解基于 Cortex-M33® 的 RA6M5 MCU 组 和云服务的功能。 该套件具有多种网络连接选项，可为大多数全球云服务提供商提供流畅的云连接体验。 该套件配备了用于以太网连接的板载以太网物理层器件（PHY），并包括用于无线连接的 DA16600 Wi-Fi-BLE combo Pmod 。 借助瑞萨电子可扩展性强的软件包（FSP），利用 FreeRTOS、Azure RTOS 等其他中间件堆栈，该套件拥有完整的软件堆栈支持，因此，它可极为高效地开发云，并可大大缩短上市时间。
查看瑞萨电子云解决方案 ，获取完整的云解决方案包。
Recommended Documents:
评估
EK-RA6M5
有效
RA6M5 MCU 群组评估套件
EK-RA6M5 评估套件可通过灵活配置软件包 (FSP) 和 e2 studio IDE，帮助用户对RA6M5 MCU 群组的特性进行无缝评估，并对嵌入系统应用程序进行开发。用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。
入门
运行快速入门示例项目
- EK-RA6M5 已经预先烧录了快速入门示例项目。 (在 EK-RA6M5 示例项目包中提供源代码)
- 用户可使用连接至 5V 电源的 micro USB 设备电缆，通过调试 USB 端口 (J10) 启动 EK-RA6M5 板。白色电源 LED 指示灯将会亮起...
Recommended Documents:
评估
EK-RA6M4
有效
RA6M4 MCU 群组评估套件
EK-RA6M4 评估套件可通过灵活配置软件包 (FSP) 和 e2 studio IDE，帮助用户对RA6M4 MCU 群组的特性进行无缝评估，并对嵌入系统应用程序进行开发。用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。
入门
运行快速入门示例项目
- EK-RA6M4 已经预先烧录了快速入门示例项目。 (在 EK-RA6M4 Example Project Bundle (ZIP)中提供源代码)
- 用户可使用连接至 5V 电源的 micro USB 设备电缆，通过调试 USB 端口 (J10) 启动 EK-RA6M4 板。白色电源 LED 指示灯将会亮起...
Recommended Documents:
视频和培训
QE for OTA Tutorial: Firmware Update Using MCUboot on RA6M5
This tutorial walks you through the steps to create a bootloader using MCUboot and update the firmware with the new version.
Chapter's Title
00:00 Opening
00:18 Preparing the projects
01:01 Configuring the MCUboot settings
02:31 Creating initial firmware
03:06 Creating updated firmware
03:15 Performing a firmware Update
Related Resources
Video List
Additional Details
Features
Simply proceed through the workflow to realize over-the-air (OTA) firmware updates via the AWS cloud.

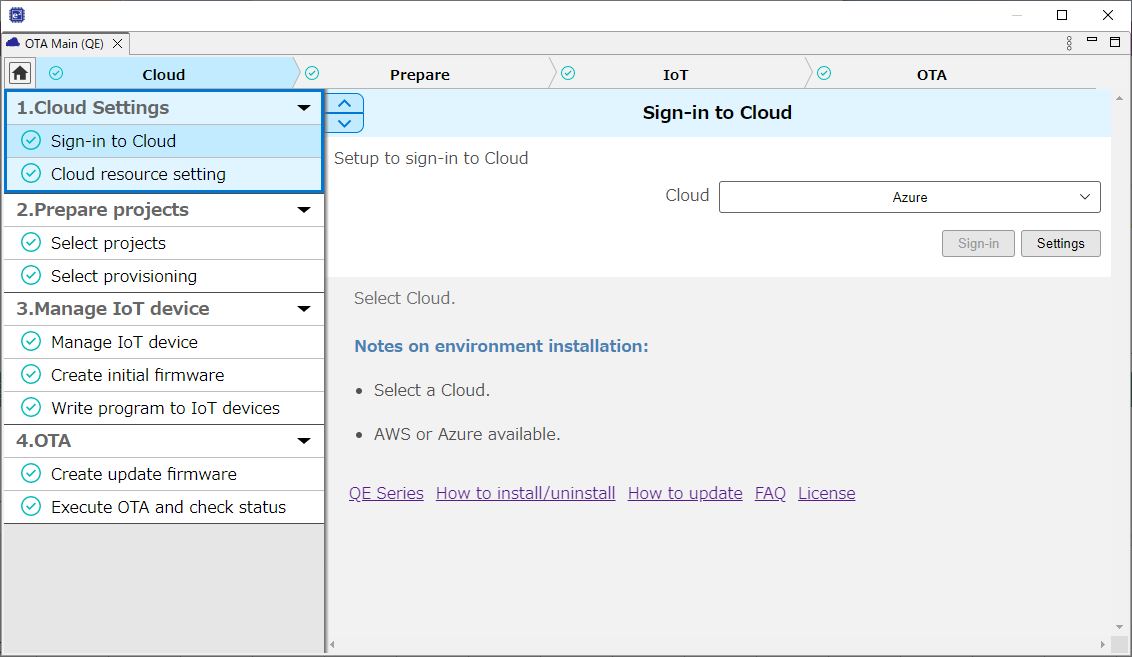

QE for OTA provides a graphical user interface that allows you to set up the cloud, import sample projects, manage IoT devices, create firmware, and start OTA updates.
图像

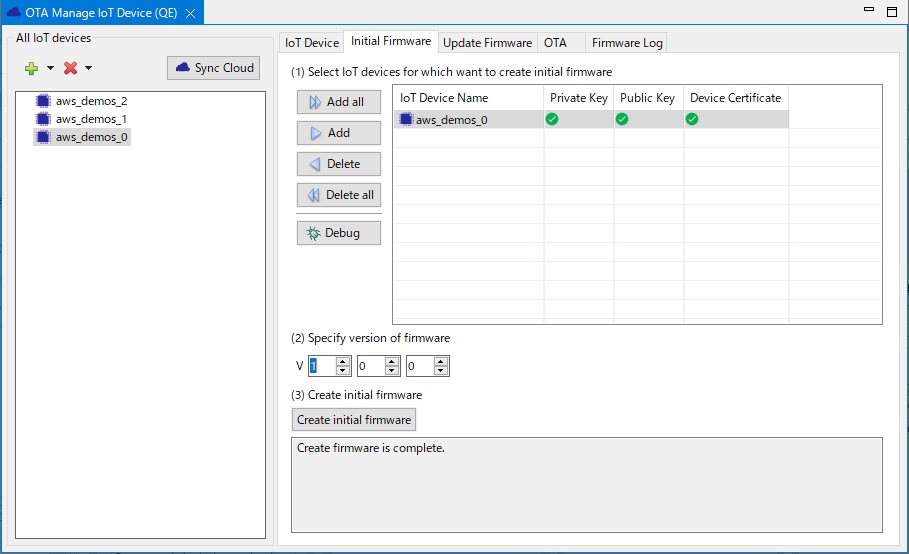

View for creating firmware for individual IoT devices and starting OTA updates
The [OTA Manage IoT Device (QE)] view, which is used to manage IoT devices, has the following features.
- Creating and downloading a device certificate and security key for each IoT device
- Creating an initial version of firmware (with the source code including IoT-device specific information)
- Support for programming boards with the initial firmware
- Creating firmware updates (with the source code including IoT-device specific information
- Uploading firmware updates to the cloud and starting OTA updates
图像
Supported Driver and Middleware
Releases - renesas/iot-reference-rx - GitHub
202210.01-LTS-rx-1.1.3, 202210.01-LTS-rx-1.2.1, FreeRTOS v202210.01-LTS-rx-1.3.1
Releases - renesas/amazon-freertos - GitHub
202107.00-rx-1.0.0, 202107.00-rx-1.0.1
Releases - renesas/azure-rtos - GitHub
6.2.1_rel-rx-1.0.0, 6.2.1_rel-rx-1.0.1, 6.4.0_rel-rx-1.0.0
Releases - renesas/iot-reference-rl78 - GitHub
v202210.01-LTS-rl78-1.0.0, v202210.01-LTS-rl78-1.1.0 (Supported LTE only, not Wi-Fi)
The combinations of the confirmed board and OTA sample program (including RTOS)
| Board or Kit | OTA sample projects(including RTOS) |
|---|---|
| CK-RX65N v1 | FreeRTOS v202107.00-rx-1.0.1, FreeRTOS v202210.01-LTS-rx-1.1.3(LTS #2), FreeRTOS v202210.01-LTS-rx-1.2.1 (LTS #2), FreeRTOS v202210.01-LTS-rx-1.3.1 (LTS #2) |
| AzureRTOS 6.2.1_rel-rx-1.0.0, AzureRTOS 6.2.1_rel-rx-1.0.1, AzureRTOS 6.4.0_rel-rx-1.0.0 | |
| CK-RX65N v2 (Wi-Fi) (Recommended) | FreeRTOS v202210.01-LTS-rx-1.2.1 (LTS #2), FreeRTOS v202210.01-LTS-rx-1.3.1 (LTS #2) |
| RX65N-Cloud-Kit (Note1) | FreeRTOS v202107.00-rx-1.0.0, FreeRTOS v202107.00-rx-1.0.1 |
| RX65N-2MB-Starter-Kit-Plus (Note1) | FreeRTOS v202107.00-rx-1.0.0, FreeRTOS v202107.00-rx-1.0.1 |
| RL78/G23-128p Fast Prototyping Board | FreeRTOS v202210.01-LTS-rl78-1.0.0,FreeRTOS v202210.01-LTS-rl78-1.1.0 (Supported LTE only, not Wi-Fi) |
| CK-RA6M5 v2 | Sample project included in the application note "RA AWS CloudConnectivity and Firmware Update OTA on CK RA6M5 v2 with Ethernet (R11AN0915)” |
| EK-RA6M5 | MCUboot function only |
| EK-RA6M4 | MCUboot function only |
Note
1. Although the operation has been confirmed, it is recommended to use the CK-RX65N.
