概览

瑞萨电子 RA4M2 32 位微控制器 (MCU) 产品群使用支持 TrustZone 的高性能 Arm® Cortex®-M33 内核。 与片内的 Secure Crypto Engine (SCE) 配合使用，可实现安全芯片的功能。 RA4M2 采用高效的 40nm 工艺，由灵活配置软件包 (FSP) 这个开放且灵活的生态系统概念提供支持，FSP 基于 FREERTOS 构建，并能够进行扩展，以使用其他实时操作系统 (RTOS) 和中间件。 RA4M2 适用于物联网应用的需求， 如多样化的通信功能、面向未来应用的安全功能、大容量嵌入式 RAM 和较低的运行功耗（从闪存运行 CoreMark® 算法时功耗低至 81µA/MHz）。

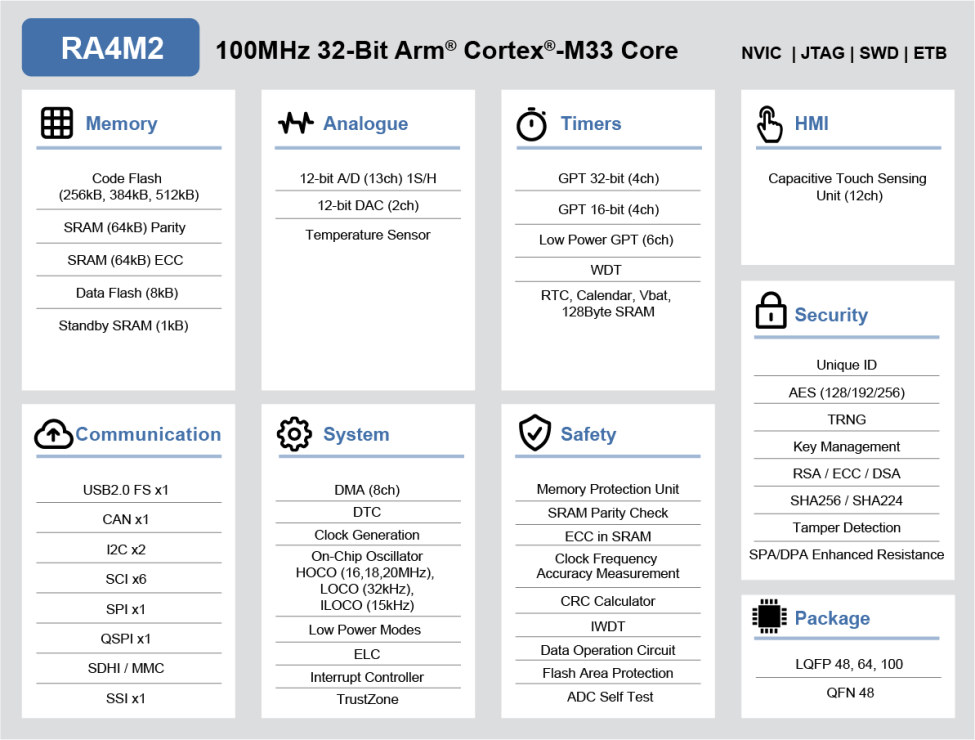

RA4M2 Block Diagram
RA4M2 Block Diagram
  • 支持 TrustZone 的 100MHz Arm Cortex-M33
  • 安全芯片的功能
  • 256kB - 512kB 闪存、64kB SRAM（支持奇偶校验）以及 64kB ECC SRAM
  • 8KB 数据闪存，提供与 EEPROM 类似的数据存储功能
  • 1kB 休眠用 SRAM
  • 从 48 引脚封装扩展至 100 引脚封装
  • 电容式触摸传感单元 (CTSU)
  • 全速 USB 2.0，支持主机模式和设备模式
  • CAN 2.0B
  • 四线 SPI
  • SCI（UART、简单 SPI、简单 I2C）
  • 独立SPI/I2C 多主接口
  • SDHI 和 MMC

应用

  • 需要强大安全功能的产品（火灾探测、防盗检测、面板控制）
  • 表计类产品（电力，自动抄表）
  • 工业应用（机器人、开门器、缝纫机、自动售货机、UPS）
  • HVAC（供暖、空调、锅炉控制）
  • 一般用途

文档

设计和开发

软件与工具
RA 可扩展性强的配置软件包 (FSP)
FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
下载
保护 IP 和敏感数据如何解决嵌入式物联网设计的6大安全挑战互联世界的安全在设计中使用 Arm® TrustZone® 的益处RA Azure IoT Cloud Connectivity Solution
瑞萨 RA 产品家族器件生命周期管理密钥安装RA Arm® TrustZone® Tooling PrimerMigrating Projects to New FSP VersionInjecting Plaintext User KeysEstablishing and Protecting Device Identity using SCE9 and Arm® TrustZone®EK-RA4M2 Example Project BundleConverting Applications from e² studio to IAR or Keil for RA – Application NoteRA6 Basic Secure Bootloader Using MCUboot and Internal Code FlashEK-RA4M2 Example Project BundleEstablishing and Protecting Device Identity using SCE9 and Arm® TrustZone® - Sample CodeRenesas RA Securing Data at Rest Using the Arm® TrustZone®RYZ012 and RA MCU Firmware Update from Host MCURYZ012 and RA MCU Firmware Update from Host MCURYZ012 and RA MCU Firmware Update from BLE Radio OTARYZ012 and RA MCU Firmware Update from BLE Radio OTAInjecting Plaintext User Keys
 Software Package 瑞萨电子
QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors
In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
下载
Using QE and FSP to Develop Capacitive Touch Applications电容式传感器微单片机 CTSU 电容式触摸电极设计指南 Rev.2.00Capacitive Sensor MCU Capacitive Touch Noise Immunity GuideCapacitive Sensor MCU Capacitive Touch Software Filter Sample ProgramCapacitive Sensor MCU Capacitive Touch Software Filter Sample Program
电容传感器微控制器 QE for Capacitive Touch “ 高级模式"调整的参数设置指南电容传感微控制器触摸入门指南
 Solution Toolkit 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
下载
[Flyer] E2仿真器[RTE0T00020KCE00000R]
 Emulator 瑞萨电子
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator 瑞萨电子
RA Smart Configurator
The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
 Solution Toolkit 瑞萨电子
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) 瑞萨电子
瑞萨闪存编程器（编程图形用户界面）
闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
 Programmer (Unit/SW) 瑞萨电子
Sensor Software Modules for Renesas MCU Platforms
Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
下载
HS300x Sample application - Sample Code
 Sensor 瑞萨电子
Security Key Management Tool
Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
Solution Toolkit 瑞萨电子
e² studio - RA 家族信息
基于 Eclipse 的瑞萨集成开发环境（IDE）。 【支持 MCU/MPU：RA、RE、RX、RL78、RH850、Renesas Synergy、RZ】
IDE and Coding Tool 瑞萨电子
EZ-CUBE3
EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
 Emulator 瑞萨电子
SEGGER emWin GUI Library for Renesas RA Products
SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
 Imaging SEGGER
SEGGER J-Link and J-Trace PRO
The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
 Emulator SEGGER
IAR Embedded Workbench for Arm
IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
 IDE and Coding Tool IAR Systems
Arm® Keil® MDK
Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
 IDE and Coding Tool Arm® Keil® MDK Arm®
添加 2 个隐藏项目
15 items
EK-RA4M2 Kit

EK-RA4M2

评估
了解更多

RA4M2 MCU 群组评估套件

EK-RA4M2 评估套件可通过瑞萨电子的灵活软件包 (FSP) 和 e2 studio IDE，帮助用户轻松评估 RA4M2 MCU 产品组的特性，并开发嵌入式系统应用程序。 用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。

入门

运行快速入门示例项目

  1. EK-RA4M2...
特色文件:
EK-RA4M2 – Quick Start Guide
EK-RA4M2 v1 – User's Manual
EK-RA4M2 v1 Design Package
CCE4503-EVAL-V3 Evaluation Board

CCE4503-EVAL-V3

评估
了解更多

具备成本优化功能集的 IO-Link 设备收发器评估板

CCE4503-EVAL-V3 评估板的设计用于评估和演示 CCE4503 IO-Link 设备收发器。

CCE4503 是一款易于使用的 IO-Link 兼容收发器。 它符合 IO-Link 标准的通信功能结合了高级保护电路和其他附加功能，并且整个设备简易又小巧。

特色文件:
CCE4503 Evaluation Board V3 User Manual
CCE4502-EVAL-V4 Evaluation Board

CCE4502-EVAL-V4

评估
了解更多

具有集成帧处理器的 IO-Link 物理层设备评估板

CCE4502-EVAL-V4 评估板的设计可用于评估 CCE4502 这款具有集成帧处理器的 IO-Link 物理层设备。

CCE4502 是一款高度集成的 IO-Link 设备类兼容收发器 IC。 内置的基于硬件的 IO-Link 帧处理器提供完整的 IO-Link 通信协议处理功能，让 UART...

特色文件:
CCE4502 Evaluation Board V4

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块
Diagram of ECAD Models

产品选择

    Processing table
    PLP
    Carrier Type
    CPU
    Operating Freq (Max) (MHz)
    Program Memory (KB)
    Data Flash (KB)
    RAM (KB)
    ECC SRAM
    Lead Count (#)
    Pkg. Type
    Pkg. Dimensions (mm)
    Pitch (mm)
    I/O Ports
    Supply Voltage (V)
    Temp. Range
    External Memory Bus (bit)
    Floating Point Unit
    DMAC or DTC
    External Interrupt Pins (#)
    USB FS (host ch/device ch)
    USB HS (host ch/device ch)
    Ethernet (ch)
    CAN-FD (ch)
    CAN (ch)
    SCI or UART (ch)
    SPI (ch)
    I2C (#)
    I3C (ch)
    LIN (#)
    SSI (ch)
    QSPI Interface (#)
    OSPI (ch)
    SDHI (ch)
    Capacitive Touch Sensing Unit (ch)
    Graphics LCD Controller
    16-bit High Res Timer (ch)
    16-bit Enhanced Timer (ch)
    16-Bit Timer (ch) (#)
    8-Bit Timer (ch)
    Asynchronous General Purpose Timer (ch)
    Watchdog Timer (ch)
    24-Bit Sigma-Delta A/D Converter (ch)
    16-Bit A/D Converter (ch)
    14-Bit A/D Converter (ch)
    12-Bit A/D Converter (ch)
    10-Bit A/D Converter (ch)
    12-Bit D/A Converter (ch)
    8-Bit D/A Converter (ch)
    High-Speed Analog Comparator (ch)
    Low-Power Analog Comparator (ch)
    PGA (ch)
    OPAMP (ch) (#)
    Temperature Sensor (ch) (#)
    RTC
    LVD or PVD
    Security & Encryption
    Power-On Reset
    Sub-clock (32.768 kHz)
    On-chip Oscillator
    Replacement Product
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    购买 / 样片
    器件号
    R7FA4M2AD3CFP#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2037 12月 Bulk (Tray) Arm Cortex-M33 100 512 8 128 是 100 LFQFP 14 x 14 x 1.7 0.5 78 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 1 1 0 1 12 No 0 0 4 0 6 2 0 0 0 13 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 3.392 获取样片,
    R7FA4M2AD3CFM#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2037 12月 Bulk (Tray) Arm Cortex-M33 100 512 8 128 是 64 LFQFP 10 x 10 x 1.7 0.5 44 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 0 1 0 0 7 No 0 0 4 0 6 2 0 0 0 9 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 2.857 获取样片,
    R7FA4M2AD3CFL#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2037 12月 Bulk (Tray) Arm Cortex-M33 100 512 8 128 是 48 LFQFP 7 x 7 x 1.7 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 2.807 获取样片,
    R7FA4M2AD3CNE#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Bulk (Tray) Arm Cortex-M33 100 512 8 128 是 48 HWQFN 7 x 7 x 0.8 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AC3CFP#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2037 12月 Bulk (Tray) Arm Cortex-M33 100 384 8 128 是 100 LFQFP 14 x 14 x 1.7 0.5 78 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 1 1 0 1 12 No 0 0 4 0 6 2 0 0 0 13 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AC3CFM#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2037 12月 Bulk (Tray) Arm Cortex-M33 100 384 8 128 是 64 LFQFP 10 x 10 x 1.7 0.5 44 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 0 1 0 0 7 No 0 0 4 0 6 2 0 0 0 9 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AC3CFL#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2037 12月 Bulk (Tray) Arm Cortex-M33 100 384 8 128 是 48 LFQFP 7 x 7 x 1.7 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 2.711 获取样片,
    R7FA4M2AC3CNE#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		探讨中 Bulk (Tray) Arm Cortex-M33 100 384 8 128 是 48 HWQFN 7 x 7 x 0.8 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 2 获取样片,
    R7FA4M2AB3CFP#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2037 12月 Bulk (Tray) Arm Cortex-M33 100 256 8 128 是 100 LFQFP 14 x 14 x 1.7 0.5 78 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 1 1 0 1 12 No 0 0 4 0 6 2 0 0 0 13 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 3.387 获取样片,
    R7FA4M2AB3CFM#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2037 12月 Bulk (Tray) Arm Cortex-M33 100 256 8 128 是 64 LFQFP 10 x 10 x 1.7 0.5 44 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 0 1 0 0 7 No 0 0 4 0 6 2 0 0 0 9 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 2.5 获取样片,
    R7FA4M2AB3CFL#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2037 12月 Bulk (Tray) Arm Cortex-M33 100 256 8 128 是 48 LFQFP 7 x 7 x 1.7 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AB3CNE#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		探讨中 Bulk (Tray) Arm Cortex-M33 100 256 8 128 是 48 HWQFN 7 x 7 x 0.8 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 2.504 获取样片,
    R7FA4M2AD3CFM#HA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Tape & Reel Arm Cortex-M33 100 512 8 128 是 64 LFQFP 10 x 10 x 1.7 0.5 44 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 0 1 0 0 7 No 0 0 4 0 6 2 0 0 0 9 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AD3CFP#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2039 3月 Full Carton (Tray) Arm Cortex-M33 100 512 8 128 是 100 LFQFP 14 x 14 x 1.7 0.5 78 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 1 1 0 1 12 No 0 0 4 0 6 2 0 0 0 13 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 3.431 获取样片,
    R7FA4M2AD3CFM#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2039 3月 Full Carton (Tray) Arm Cortex-M33 100 512 8 128 是 64 LFQFP 10 x 10 x 1.7 0.5 44 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 0 1 0 0 7 No 0 0 4 0 6 2 0 0 0 9 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AD3CFL#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2039 3月 Full Carton (Tray) Arm Cortex-M33 100 512 8 128 是 48 LFQFP 7 x 7 x 1.7 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AD3CNE#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2034 3月 Full Carton (Tray) Arm Cortex-M33 100 512 8 128 是 48 HWQFN 7 x 7 x 0.8 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AC3CFP#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2039 3月 Full Carton (Tray) Arm Cortex-M33 100 384 8 128 是 100 LFQFP 14 x 14 x 1.7 0.5 78 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 1 1 0 1 12 No 0 0 4 0 6 2 0 0 0 13 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 3.321 获取样片,
    R7FA4M2AC3CFM#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2039 3月 Full Carton (Tray) Arm Cortex-M33 100 384 8 128 是 64 LFQFP 10 x 10 x 1.7 0.5 44 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 0 1 0 0 7 No 0 0 4 0 6 2 0 0 0 9 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AC3CNE#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2034 3月 Full Carton (Tray) Arm Cortex-M33 100 384 8 128 是 48 HWQFN 7 x 7 x 0.8 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AC3CFL#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2039 3月 Full Carton (Tray) Arm Cortex-M33 100 384 8 128 是 48 LFQFP 7 x 7 x 1.7 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AB3CFP#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2039 3月 Full Carton (Tray) Arm Cortex-M33 100 256 8 128 是 100 LFQFP 14 x 14 x 1.7 0.5 78 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 1 1 0 1 12 No 0 0 4 0 6 2 0 0 0 13 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 3.239 获取样片,
    R7FA4M2AB3CFM#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2039 3月 Full Carton (Tray) Arm Cortex-M33 100 256 8 128 是 64 LFQFP 10 x 10 x 1.7 0.5 44 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 0 1 0 0 7 No 0 0 4 0 6 2 0 0 0 9 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AB3CFL#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2039 3月 Full Carton (Tray) Arm Cortex-M33 100 256 8 128 是 48 LFQFP 7 x 7 x 1.7 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AB3CNE#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2034 3月 Full Carton (Tray) Arm Cortex-M33 100 256 8 128 是 48 HWQFN 7 x 7 x 0.8 0.5 30 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AB3CFM#HA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Tape & Reel Arm Cortex-M33 100 256 8 128 是 64 LFQFP 10 x 10 x 1.7 0.5 44 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 0 1 0 0 7 No 0 0 4 0 6 2 0 0 0 9 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AB3CFP#HA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Tape & Reel Arm Cortex-M33 100 256 8 128 是 100 LFQFP 14 x 14 x 1.7 0.5 78 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 3.201 获取样片,
    R7FA4M2AC3CFM#HA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Tape & Reel Arm Cortex-M33 100 384 8 128 是 64 LFQFP 10 x 10 x 1.7 0.5 44 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 0 1 0 0 7 No 0 0 4 0 6 2 0 0 0 9 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 获取样片,
    R7FA4M2AC3CFP#HA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Tape & Reel Arm Cortex-M33 100 384 8 128 是 100 LFQFP 14 x 14 x 1.7 0.5 78 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 1 0 0 0 1 0 0 4 No 0 0 4 0 6 2 0 0 0 7 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 3.282 获取样片,
    R7FA4M2AD3CFP#HA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Tape & Reel Arm Cortex-M33 100 512 8 128 是 100 LFQFP 14 x 14 x 1.7 0.5 78 2.7 - 3.6 Ta=-40 to 105°C No Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 0 0 1 6 1 2 0 0 1 1 0 1 12 No 0 0 4 0 6 2 0 0 0 13 0 2 0 0 0 0 0 1 是 是 128-bit Unique ID, AES(128/192/256), Arm TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection 是 是 是 3 3.39 获取样片,
