瑞萨 RA6T2 群组是第二款针对电机和逆变器控制解决方案的 RA ASSP 产品。 RA6T2 将 Arm® Cortex®-M33 与用于电机控制的硬件加速器以及用于实现 240MHz 高速实时性能的高速闪存相结合。 它还可以实现下一代高速、高响应电机算法,并提高其他通信处理等并行处理性能。 我们总共有 20 种不同的型号,使用 5 种不同的封装类型。 灵活配置软件包 (FSP) 和 Arm 合作伙伴生态系统确保通过易用解决方案来实现高效精准的电机和逆变器控制。

特性

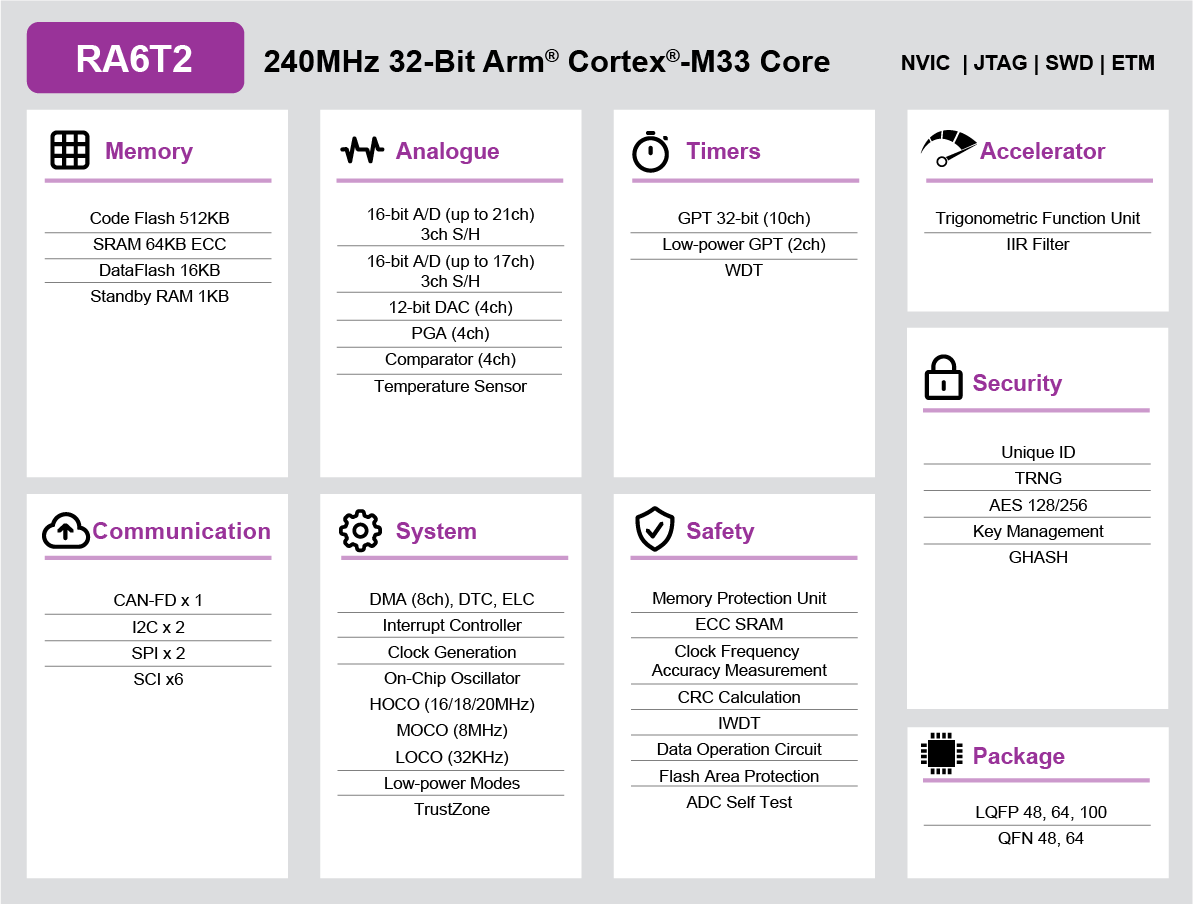

  • 搭载 TrustZone® 的 240MHz Arm Cortex-M33
  • 256KB -512KB 闪存和具有 ECC 的 64KB SRAM
  • 16KB 数据闪存,提供与 EEPROM 类似的数据存储功能
  • 从 48 引脚至 100 引脚的多种封装
  • 用于电机控制计算的硬件加速器
  • 12 位 ADC
  • 12 位 DAC
  • 可编程增益放大器
  • 高速比较器
  • PWM 定时器
  • CAN FD(可选)
  • SCI 多功能串口(UART、简单 SPI、简单 I2C)
  • 独立的 SPI 接口/I2C 多主接口

产品对比

应用

应用

  • 家电(洗衣机、电磁炉、电动工具)
  • 工业(AC 驱动器、AC 伺服电机、机器人)
  • HVAC(供暖设备、空调)

文档

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
RA 可扩展性强的配置软件包 (FSP)
FSP 是一款增强型软件包,旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
Software Package 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
RA Smart Configurator
The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
Solution Toolkit 瑞萨电子
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
Programmer (Unit/SW) 瑞萨电子
Renesas Flash Programmer (Programming GUI)
闪存编程软件 [支持 MCU/MPU 和器件:RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery Family、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0]
Programmer (Unit/SW) 瑞萨电子
QE for Motor: Development Assistance Tool for Motor Applications
The development assistance tool that supports the development of motor software for MCUs. It allows to configure motor middleware and drivers easily, and tune and analyze motors with Renesas Motor Workbench. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
Solution Toolkit 瑞萨电子
RA Web Simulator
This revolutionary cloud-based tools called MCU simulator online takes care of the setting up of an evaluation environment, which are necessary for initial evaluation of RA Family. Users can try the initial evaluation without running MCU on the board.
Simulator 瑞萨电子
Security Key Management Tool
Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
Solution Toolkit 瑞萨电子
e² studio - RA 家族信息
基于 Eclipse 的瑞萨集成开发环境(IDE)。 【支持 MCU/MPU:RA、RE、RX、RL78、RH850、Renesas Synergy、RZ】
IDE and Coding Tool 瑞萨电子
EZ-CUBE3
EZ-CUBE3(CYRCNEZCUBE03)是具有Flash存储器编程功能的片上调试仿真器,可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
Emulator 瑞萨电子
SEGGER emWin GUI Library for Renesas RA Products
SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
Imaging SEGGER
Renesas Motor Workbench
Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
Solution Toolkit 瑞萨电子
SEGGER J-Link and J-Trace PRO
The J-Link debug probes offer full support for RA Family MCUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
Emulator SEGGER
IAR Embedded Workbench for Arm
IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
IDE and Coding Tool IAR Systems
Arm® Keil® MDK
Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
IDE and Coding Tool Arm® Keil® MDK Arm®
