概览

瑞萨电子 RA6M3 微控制器 (MCU) 群组使用高性能 Arm® Cortex®-M4 内核，提供具备 2D 加速器和 JPEG 解码器的 TFT 控制器。此外，RA6M3 MCU 提供具有单独 DMA 和 USB 高速接口的以太网 MAC，可确保大的数据吞吐量。RA6M3 MCU 采用高效的 40nm 工艺，由开放且灵活的生态系统概念提供支持，即基于 FreeRTOS 的灵活配置软件包 (FSP)，能够扩展以使用其他 RTOSes 和中间件。RA6M3 适用于需要 TFT、以太网、安全性、大型嵌入式 RAM 和 USB 高速 (HS) 的物联网应用。

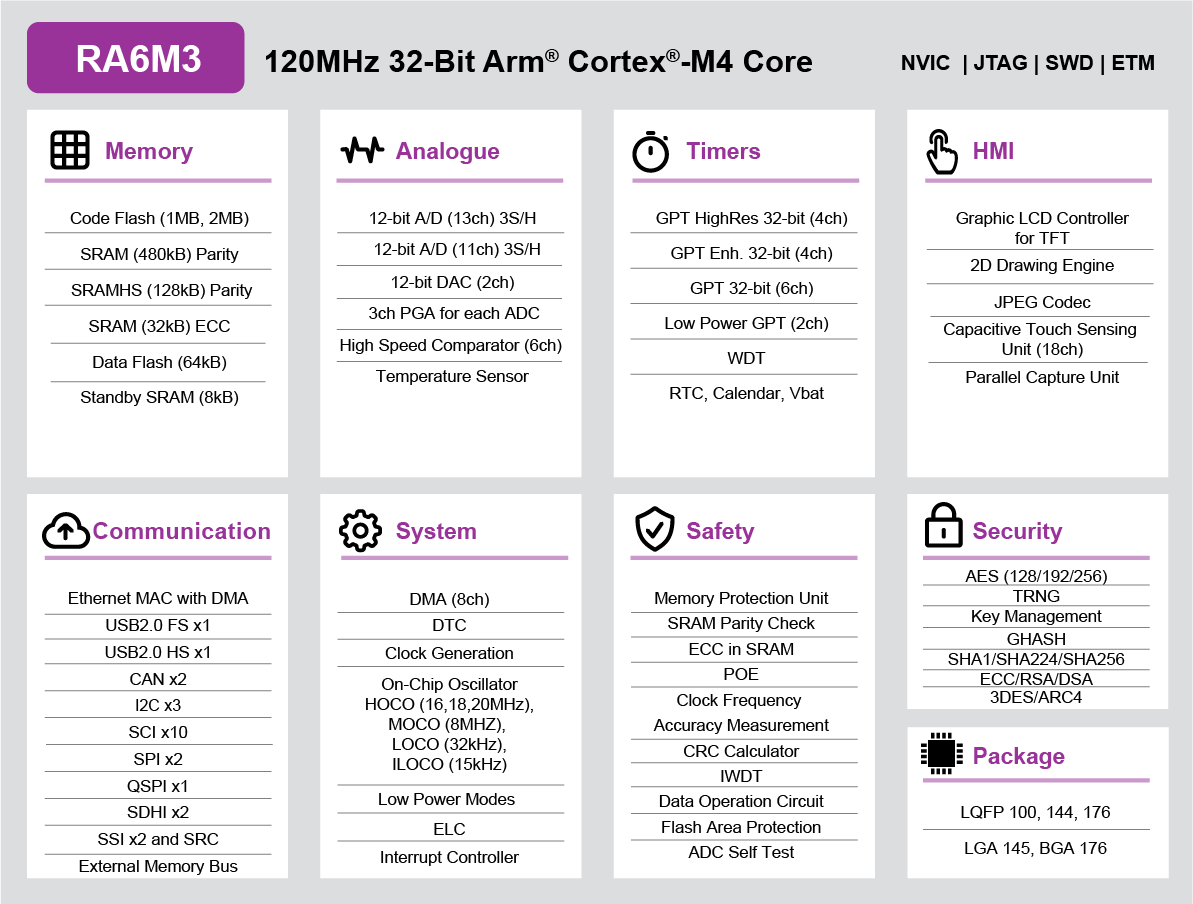

RA6M3 Block Diagram
RA6M3 Block Diagram
  • 120MHz Arm® Cortex®-M4
  • 1MB - 2MB 闪存以及 640kB SRAM
  • 与 EEPROM 存储数据功能类似的 64kB 数据闪存
  • 可从 100 引脚封装扩展至 176 引脚封装
  • 具备 DMA 的以太网控制器
  • TFT 控制器/2D 加速器/JPEG 解码器
  • 电容式触摸传感单元
  • USB 2.0 全速/USB 高速
  • CAN 2.0B
  • SCI（UART、简单 SPI、简单 I2C）
  • SPI/ I2C 多主机接口/SDHI

应用

  • 120MHz Arm® Cortex®-M4
  • 1MB - 2MB 闪存以及 640kB SRAM
  • 与 EEPROM 存储数据功能类似的 64kB 数据闪存
  • 可从 100 引脚封装扩展至 176 引脚封装
  • 具备 DMA 的以太网控制器
  • TFT 控制器/2D 加速器/JPEG 解码器
  • 电容式触摸传感单元
  • USB 2.0 全速/USB 高速
  • CAN 2.0B
  • SCI（UART、简单 SPI、简单 I2C）
  • SPI/ I2C 多主机接口/SDHI

文档

设计和开发

软件与工具
QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors
In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
下载
Using QE and FSP to Develop Capacitive Touch Applications电容式传感器微单片机 CTSU 电容式触摸电极设计指南 Rev.2.00Capacitive Sensor MCU Capacitive Touch Noise Immunity GuideCapacitive Sensor MCU Capacitive Touch Software Filter Sample ProgramCapacitive Sensor MCU Capacitive Touch Software Filter Sample Program
电容传感器微控制器 QE for Capacitive Touch “ 高级模式"调整的参数设置指南电容传感微控制器触摸入门指南
 Solution Toolkit 瑞萨电子
RA 可扩展性强的配置软件包 (FSP)
FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
下载
Renesas RA Family Establishing and Protecting Device Identity using SCE7 and FAWSecuring Data at Rest Utilizing the Renesas Security MPU保护 IP 和敏感数据互联世界的安全用于物联网的安全互联通信
EK-RA6M3 Example Project BundleRA Azure IoT Cloud Connectivity SolutionMigrating Projects to New FSP VersionGetting Started with the Graphics Application – Application ProjectGetting Started with Low Power Applications PackageInjecting Plaintext User KeysGetting Started with Wi-Fi Modules on FSPRA FSP MQTT/TLS Azure Cloud Connectivity Solution Application NoteRA AWS MQTT/TLS Cloud Connectivity Solution Application ProjectGetting Started with Low Power Applications for RA6 and RA4 GroupsGUIX "Hello World" for EK-RA6M3G - Application ProjectConverting Applications from e² studio to IAR or Keil for RA – Application NoteInjecting and Updating Secure User Keys for RA Family – Application ProjectRA6 Basic Secure Bootloader Using MCUboot and Internal Code FlashGetting Started with PWM Output with Sub Nanosecond Delay Application for RA Family - Application ProjectRenesas RA Family Exception HandlingEK-RA6M3 Example Project BundleLPM ApplicationQuick Start Guide for EK-RA6M3 Modbus TCP - Sample CodeGetting Started with GUIX Thermostat Application - Sample CodeGetting Started with GUIX Thermostat ApplicationGetting Started with PWM Output with Sub Nanosecond Delay Application for RA Family - Application ProjectGetting Started with Wi-Fi Modules on FSPRenesas RA Family Exception HandlingSecuring Data at Rest Utilizing the Renesas Security MPUGetting Started with the Graphics Application – Application Project - Sample CodeRenesas RA Family Establishing and Protecting Device Identity using SCE7 and FAWInjecting Plaintext User Keys
 Software Package 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
下载
[Flyer] E2仿真器[RTE0T00020KCE00000R]
 Emulator 瑞萨电子
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator 瑞萨电子
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) 瑞萨电子
瑞萨闪存编程器（编程图形用户界面）
闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
 Programmer (Unit/SW) 瑞萨电子
RA Smart Configurator
The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
 Solution Toolkit 瑞萨电子
Sensor Software Modules for Renesas MCU Platforms
Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
下载
HS300x Sample application - Sample Code
 Sensor 瑞萨电子
QE for Display: Development Assistance Tool for Display Applications
This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
Solution Toolkit 瑞萨电子
Security Key Management Tool
Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
Solution Toolkit 瑞萨电子
e² studio - RA 家族信息
基于 Eclipse 的瑞萨集成开发环境（IDE）。 【支持 MCU/MPU：RA、RE、RX、RL78、RH850、Renesas Synergy、RZ】
IDE and Coding Tool 瑞萨电子
EZ-CUBE3
EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
 Emulator 瑞萨电子
SEGGER emWin GUI Library for Renesas RA Products
SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
 Imaging SEGGER
SEGGER J-Link and J-Trace PRO
The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
 Emulator SEGGER
IAR Embedded Workbench for Arm
IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
 IDE and Coding Tool IAR Systems
Arm® Keil® MDK
Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
 IDE and Coding Tool Arm® Keil® MDK Arm®
添加 2 个隐藏项目
16 items
EK-RA6M3 Evaluation Board

EK-RA6M3

评估
了解更多

RA6M3 MCU 群组评估套件

EK-RA6M3 评估套件可通过灵活配置软件包 (FSP) 和 e2 studio IDE，帮助用户对 RA6M3 MCU 群组的特性进行无缝评估，并对嵌入系统应用程序进行开发。用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。

入门

运行快速入门示例项目

  1. EK-RA6M3...
特色文件:
EK-RA6M3 – Quick Start Guide
EK-RA6M3 v1 – User's Manual
EK-RA6M3v1 - Design Package
EK-RA6M3G Evaluation Board

EK-RA6M3G

评估
了解更多

RA6M3 MCU 群组的图形评估套件

EK-RA6M3G 评估套件可通过灵活配置软件包 (FSP) 和 e2 studio 开发环境，帮助用户对RA6M3 MCU 群组的特性进行无缝评估，并对嵌入系统应用程序进行开发。用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实...

特色文件:
EK-RA6M3G – Quick Start Guide
EK-RA6M3G v1 – User's Manual
EK-RA6M3Gv1 - Design Package
Avnet Silica HoriZone RA powered by Renesas

AVSHORIZONE

开发
了解更多

Avnet Silica HoriZone RA Powered by Renesas

The Avnet Silica HoriZone is a cloud-ready Renesas RA board with a multi-sensor Arduino Shield and a secure element. It allows you to explore Renesas RA...

可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
启动云上实验室
EBV-IOT-SMARTCTHERM

EBV-IOT-SMARTCTHERM

开发
了解更多

RA6M3 + SmartCTherm Smart IoT Sensor Node Solution for Monitoring Indoor Climate Conditions

The EBV IoT SmartCTherm solution is powered by the Renesas RA6M3 MCU and Sequans GM01Q. SmartCTherm is a smart IoT sensor node solution that can monitor indoor climate...

AIK-RA6M3 Board

AIK-RA6M3

开发
了解更多

RA6M3 AI 套件开发平台

连接功能多种多样，并且可重新配置，助力 AI/ML 系统提速。 硬件平台便捷易用，适用于以 RA 系列 32 位 MCU 中 RA6M3 MCU 为基础的多模态 AI/ML 解决方案。

该硬件平台旨在用于支持实时分析（Realtime Analytics） 的各种 AI/ML 单/多模态使用场景。...

特色文件:
AIK-RA6M3 – Quick Start Guide
Aspinity AB2 AML100 Application Board

AB2-AML100

开发
了解更多

Aspinity AB2 AML100 Application Board

Aspinity's AB2 AML100 Application Board is a fully integrated analog event detection front end for power-constrained always-on products. The onboard AML100 analog...

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块
Diagram of ECAD Models

产品选择

    Processing table
    PLP
    Carrier Type
    CPU
    Operating Freq (Max) (MHz)
    Program Memory (KB)
    Data Flash (KB)
    RAM (KB)
    ECC SRAM
    Lead Count (#)
    Pkg. Type
    Pkg. Dimensions (mm)
    Pitch (mm)
    I/O Ports
    Supply Voltage (V)
    Temp. Range
    External Memory Bus (bit)
    Floating Point Unit
    DMAC or DTC
    External Interrupt Pins (#)
    USB FS (host ch/device ch)
    USB HS (host ch/device ch)
    Ethernet (ch)
    CAN (ch)
    CAN-FD (ch)
    SCI or UART (ch)
    SPI (ch)
    I2C (#)
    I3C (ch)
    LIN (#)
    SSI (ch)
    QSPI Interface (#)
    OSPI (ch)
    SDHI (ch)
    Capacitive Touch Sensing Unit (ch)
    Camera I/F (Parallel)
    Segment LCD Controller
    Wireless
    IrDA
    PWM Output (pin#)
    32-Bit Timer (ch)
    16-bit Enhanced Timer (ch)
    16-Bit Timer (ch) (#)
    8-Bit Timer (ch)
    Asynchronous General Purpose Timer (ch)
    Watchdog Timer (ch)
    24-Bit Sigma-Delta A/D Converter (ch)
    16-Bit A/D Converter (ch)
    14-Bit A/D Converter (ch)
    12-Bit A/D Converter (ch)
    10-Bit A/D Converter (ch)
    12-Bit D/A Converter (ch)
    8-Bit D/A Converter (ch)
    High-Speed Analog Comparator (ch)
    Low-Power Analog Comparator (ch)
    PGA (ch)
    OPAMP (ch) (#)
    Temperature Sensor (ch) (#)
    RTC
    LVD or PVD
    Security & Encryption
    Power-On Reset
    Sub-clock (32.768 kHz)
    On-chip Oscillator
    Debug Interface
    Replacement Product
    Replacement Remark
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    购买 / 样片
    器件号
    R7FA6M3AF3CFP#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		N/A Bulk (Tray) Arm Cortex-M4 120 1024 64 640 是 100 LFQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 2 0 0 1 1 0 2 12 8-bit No No 是 26 13 0 0 0 2 2 0 0 0 17 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 7.437 获取样片,
    R7FA6M3AF2CBG#AC0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2033 10月 Bulk (Tray) Arm Cortex-M4 120 1024 64 640 是 176 BGA 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 22 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 获取样片,
    R7FA6M3AH2CBG#AC0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2033 10月 Bulk (Tray) Arm Cortex-M4 120 2048 64 640 是 176 BGA 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 22 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 7.112 获取样片,
    R7FA6M3AH3CFC#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2038 12月 Bulk (Tray) Arm Cortex-M4 120 2048 64 640 是 176 LQFP 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 22 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 9.287 获取样片,
    R7FA6M3AH3CFP#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		N/A Bulk (Tray) Arm Cortex-M4 120 2048 64 640 是 100 LFQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 2 0 0 1 1 0 2 12 8-bit No No 是 26 13 0 0 0 2 2 0 0 0 17 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 7.512 获取样片,
    R7FA6M3AF3CFC#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2038 12月 Bulk (Tray) Arm Cortex-M4 120 1024 64 640 是 176 LQFP 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 22 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 8.511 获取样片,
    R7FA6M3AH2CLK#AC0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2033 10月 Bulk (Tray) Arm Cortex-M4 120 2048 64 640 是 145 TFLGA 7 x 7 x 1.05 0.5 110 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 2 1 0 2 18 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 6.562 获取样片,
    R7FA6M3AF3CFB#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		N/A Bulk (Tray) Arm Cortex-M4 120 1024 64 640 是 144 LFQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 2 1 0 2 18 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 7.275 获取样片,
    R7FA6M3AH3CFB#AA0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		N/A Bulk (Tray) Arm Cortex-M4 120 2048 64 640 是 144 LFQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 2 1 0 2 18 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 7.975 获取样片,
    R7FA6M3AF2CLK#AC0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		2033 10月 Bulk (Tray) Arm Cortex-M4 120 1024 64 640 是 145 TFLGA 7 x 7 x 1.05 0.5 110 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 2 1 0 2 18 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 7.972 获取样片,
    R7FA6M3AF3CBG#AC0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		探讨中 Bulk (Tray) Arm Cortex-M4 120 1024 64 640 是 176 BGA 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 22 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 8.162 获取样片,
    R7FA6M3AF3CLK#AC0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		探讨中 Bulk (Tray) Arm Cortex-M4 120 1024 64 640 是 145 TFLGA 7 x 7 x 1.05 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 2 1 0 2 18 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 获取样片,
    R7FA6M3AH3CBG#AC0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		探讨中 Bulk (Tray) Arm Cortex-M4 120 2048 64 640 是 176 BGA 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 22 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 8.9 获取样片,
    R7FA6M3AH3CLK#AC0
    circle有效
    memory
    view_in_ar
    可提供样片
    立即购买
    		探讨中 Bulk (Tray) Arm Cortex-M4 120 2048 64 640 是 145 TFLGA 7 x 7 x 1.05 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 2 1 0 2 18 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 8.537 获取样片,
    R7FA6M3AF3CFB#HA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Tape & Reel Arm Cortex-M4 120 1024 64 640 是 144 LFQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 2 1 0 2 18 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 7.982 获取样片,
    R7FA6M3AF3CFP#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2038 12月 Full Carton (Tray) Arm Cortex-M4 120 1024 64 640 是 100 LFQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 2 0 0 1 1 0 2 12 8-bit No No 是 26 13 0 0 0 2 2 0 0 0 17 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 7.511 获取样片,
    R7FA6M3AH3CFP#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2038 12月 Full Carton (Tray) Arm Cortex-M4 120 2048 64 640 是 100 LFQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 2 0 0 1 1 0 2 12 8-bit No No 是 26 13 0 0 0 2 2 0 0 0 17 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 8.264 获取样片,
    R7FA6M3AF3CFB#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2038 12月 Full Carton (Tray) Arm Cortex-M4 120 1024 64 640 是 144 LFQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 2 1 0 2 18 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 8.118 获取样片,
    R7FA6M3AH3CFB#BA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 2038 12月 Full Carton (Tray) Arm Cortex-M4 120 2048 64 640 是 144 LFQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 2 1 0 2 18 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 8.879 获取样片,
    R7FA6M3AF3CFC#BA0
    circle有效
    memory
    view_in_ar
    		探讨中 Full Carton (Tray) Arm Cortex-M4 120 1024 64 640 是 176 LQFP 24 x 24 x 1.7 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 8.612
    R7FA6M3AF3CFC#BA1
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Full Carton (Tray) Arm Cortex-M4 120 1024 64 640 是 176 LQFP 24 x 24 x 1.7 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 获取样片,
    R7FA6M3AH3CFC#BA0
    circle有效
    memory
    view_in_ar
    		探讨中 Full Carton (Tray) Arm Cortex-M4 120 2048 64 640 是 176 LQFP 24 x 24 x 1.7 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 9.395
    R7FA6M3AH3CFC#BA1
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Full Carton (Tray) Arm Cortex-M4 120 2048 64 640 是 176 LQFP 24 x 24 x 1.7 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single DMAC&DTC 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 2 1 0 2 13 8-bit No No 是 28 14 0 0 0 2 2 0 0 0 20 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 获取样片,
    R7FA6M3AF3CFP#HA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Tape & Reel Arm Cortex-M4 120 1024 64 640 是 100 LFQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 2 0 0 1 1 0 2 12 8-bit No No 是 26 13 0 0 0 2 2 0 0 0 17 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 7.435 获取样片,
    R7FA6M3AH3CFP#HA0
    circle有效
    memory
    view_in_ar
    可提供样片
    		 探讨中 Tape & Reel Arm Cortex-M4 120 2048 64 640 是 100 LFQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single DMAC&DTC 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 2 0 0 1 1 0 2 12 8-bit No No 是 26 13 0 0 0 2 2 0 0 0 17 0 2 0 6 0 6 0 1 是 是 128-bit Unique ID, AES(128/192/256), ECC/RSA, GHASH, SHA224/SHA256, TRNG 是 是 是 JTAG/SWD 3 8.182 获取样片,
