概览

描述

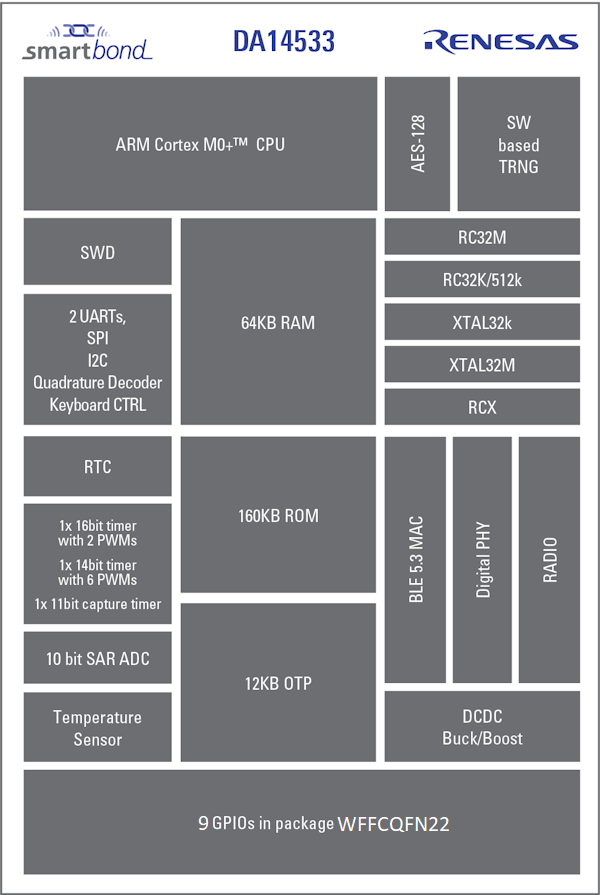

DA14533 是一款符合 AEC-Q100 2 级标准的超低功耗片上系统 (SoC),集成了一个 2.4GHz 收发器和 Arm® Cortex®-M0+ MCU,并配备 64kB RAM 和 12kB 一次性可编程 (OTP) 存储器。 这款 SoC 不仅可用作独立的应用处理器,还可作为主机系统中的数据泵。 使用集成式低 IQ 降压/升压 DC/DC 转换器可实现超低功耗,该转换器在降压模式下休眠时仍处于工作状态。

无线电收发器、基带处理器和经认证的 Bluetooth® Low Energy (LE) 堆栈符合 Bluetooth Core 5.3 标准。

特性

  • 16 MHz 32 位 Arm® Cortex® M0+,带 SWD 接口
  • 符合蓝牙核心 5.3 标准
  • AEC-Q100 2 级车规资格认证
  • 存储器:
    • 64KB RAM
    • 160KB ROM
    • 12KB OTP
  • 电流消耗:
    • 接收器:3.5mA
    • 发射器:2.1mA
    • 休眠电流:1.7μA(保留全部 64KB RAM)
  • 无线电可编程射频传输功率:-19dBm 至 +4dBm
  • 接收器灵敏度:-94.5dBm
  • 封装:可湿润侧翼 FCQFN 22 引脚,3.5mm x 3.5mm x 0.55mm,0.5mm 间距
  • 工作温度:-40 °C 至 105 °C

产品对比

应用

  • 轮胎压力监测系统 (TPMS)
  • 汽车门禁/无钥匙进入系统/无源启动 (PEPS)
  • 板载诊断系统 (OBD)
  • 电池管理系统 (BMS)

文档

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
SmartBond™ Development Tools
SmartSnippets™ Studio is a royalty-free software development platform for SmartBond™ devices.
Software Package 瑞萨电子
SmartBond™ Flash Programmer
The Renesas SmartBond™ Flash Programmer tool lets the user program a flash device for the DA1453x, DA1458x, DA1469x, and DA14592 SoCs.
Software Package 瑞萨电子
Renesas Bluetooth® Low Energy Mobile Application Suite
Renesas’ comprehensive collection of Bluetooth® Low Energy mobile applications: SmartBond, SmartConfig, SmartConsole, SmartTags, and SUOTA
Software Package 瑞萨电子
e² studio
基于 Eclipse 的瑞萨集成开发环境(IDE)。 【支持 MCU/MPU:RA、RE、RX、RL78、RH850、Renesas Synergy、RZ】
IDE and Coding Tool 瑞萨电子
4 items

软件下载

类型 文档标题 日期
软件和工具 - 其他 登录后下载 ZIP 15.70 MB
1 item

开发板与套件

模型

ECAD 模块

点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品,查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。


Diagram of ECAD Models

产品选项

当前筛选条件

视频和培训

Introducing the DA14533 – Renesas’ first automotive grade Bluetooth® LE SoC

Renesas introduces the DA14533, an automotive AEC-Q100 grade 2 qualified Bluetooth® Low Energy System-on-Chip (SoC). The DA14533 is the latest addition to the successful SmartBond™ TINY family of products, providing ultra-low power Bluetooth functionality in the smallest footprint and integrating a 2.4GHz transceiver and an Arm® Cortex®-M0+ MCU with 64kB of RAM and 12kB of one-time programmable (OTP) memory.
