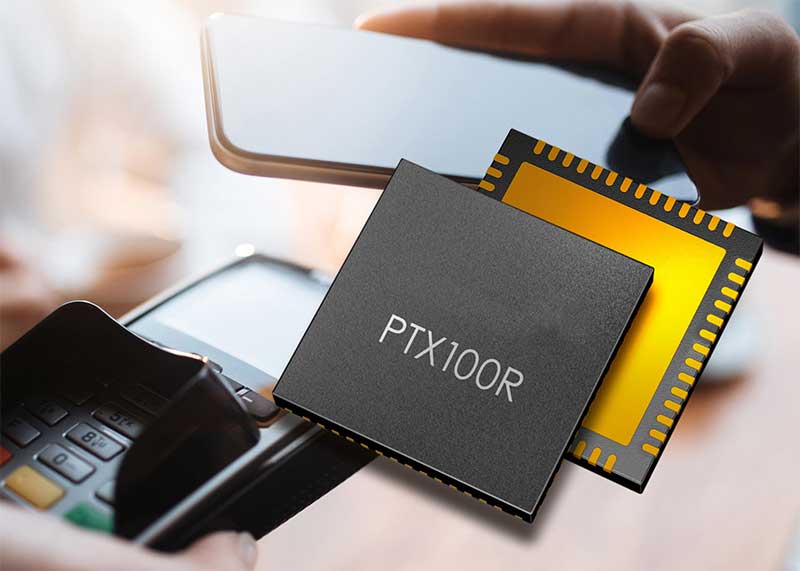

High-performance, High-power Multi-protocol NFC Forum Reader
跳转至页面部分：
概览
简介
The PTX100R NFC reader serves IoT and Point-of-Sale (PoS) applications, implementing a unique sine wave hardware transceiver architecture and offering a winning combination of superior transmit power and sensitivity, accurate wave shaping, and a reduced bill-of-materials compared to conventional square-wave NFC controllers – products which have changed little over the past decade.
The PTX100R marks a breakthrough in NFC system performance, power and integration simplicity.
This NFC reader IC is fully compliant with the specifications of the latest EMVCo 3.0/3.1 standard for contactless payments. It is supplied with an application-ready EMVCo 3.0/3.1 L1 interface and includes a set of facilities that makes the integration of a third-party EMV L2 stack fast and easy. It also provides rich debugging capabilities allowing for rapid prototyping.
Benefit from our patented Direct Antenna Connection (DiRAC™) technology which enables the NFC to drive output power of up to 2W directly to the antenna while achieving a sensitivity of -80dB.
特性
- High output power up to 2W @5.5V
- Very high Receiver sensitivity (-80dBc)
- DiRAC: Direct antenna connection for Tx and Rx
- Sine Wave output Accurate Digital Wave Shaping
- Removal of second resonating structure introduced by EMI
- Xtal-less design using reference clock
应用
应用
- EMVCo 3.0/3.1 Point-of-Sale (PoS) systems
- High-end IoT applications
文档
| Document title | Document type
|
日期 日期 | |
|---|---|---|---|
| PDF 899 KB | 数据手册 | ||
| PDF 515 KB | 产品简述 | ||
| PDF 1.78 MB | 应用文档 | ||
| PDF 289 KB | 应用文档 | ||
| PDF 4.47 MB | 应用文档 | ||
| PDF 793 KB | 应用文档 | ||
| PDF 310 KB | 应用文档 | ||
| PDF 1.21 MB | 应用文档 | ||
| PDF 995 KB | 应用文档 | ||
| PDF 260 KB | 应用文档 | ||
| PDF 215 KB | 应用文档 | ||
| PDF 540 KB | 应用文档 | ||
| PDF 535 KB | 应用文档 | ||
| PDF 644 KB | 应用文档 | ||
| PDF 1.33 MB | 应用文档 | ||
| PDF 726 KB | 应用文档 | ||
| PDF 1.24 MB | 应用文档 | ||
| PDF 1.23 MB | 手册 - 开发工具 | ||
| PDF 1.06 MB | 手册 - 开发工具 | ||
| PDF 367 KB | 概览 | ||
| PDF 4.07 MB | 原理图 | ||
| PDF 460 KB | 白皮书 | ||
22 items
|
|||
设计和开发
开发板与套件
开发板与套件
PTX100R POS/IoT NFC Reader Demonstration Kit
The Demokit PTX100R enables quick evaluation of the PTX100R NFC reader IC for Internet of Things (IoT), Point-of-Sale (PoS), Mobile Point-of-Sale (mPoS), and Smart...
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
产品选择
Processing table
| Box | 获取样片, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filled视频和培训
Innovative NFC Solution for IoT
The IoT market has been booming over the last few years, to say the least. By 2030 there will be approximately half a trillion IoT devices shipped to the market, and already by the end of 2021, almost 7 billion IoT devices shipped will be NFC enabled.
NFC contributes a big deal to the growth and development of IoT applications, enabling a variety of different features in different setups. Ranging from consumer devices to industry 4.0, electric vehicles, and smart home ecosystems – NFC is an integral part of any application design. Our products at Renesas are designed with the end application in mind.
In this video, we present to you the benefits that PTX100R brings to the IoT arena and what can be achieved by using our industry's best NFC IC.
Read more about the innovative PTX100R and the demo kit solution for Internet of Things applications.
