Synchronous Buck Demo Board with 7V to 40V Input Range, 5V 2.5A Output
The ISL85403DEMO1Z demonstration board allows for quick evaluation of the ISL85403 synchronous buck or boost-buck controller in the synchronous buck configuration. It...

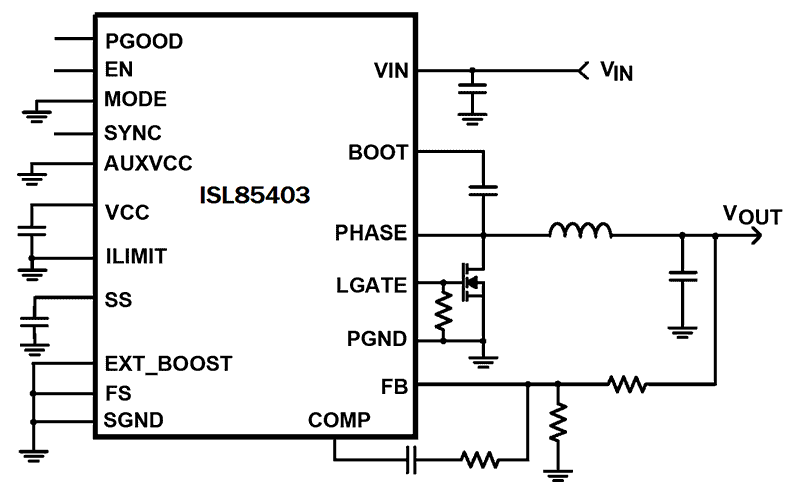

ISL85403 是 40V 2.5A 同步降压或升压降压控制器,集成了高压侧 MOSFET 和低压侧驱动器。 在降压模式下,ISL85403 支持 3V 至 40V 的宽输入范围。 在升压降压模式下,输入范围可扩展至 2。当 VIN 降至 VOUT 以下时,可以保持 5V 和输出调节,从而使敏感的电子设备能够在低输入电压条件下保持导通。 ISL85403 可灵活选择强制 PWM 模式和 PFM 模式。 在 PFM 模式下,静态输入电流低至 180μA(AUXVCC 连接到 VOUT)。 PFM 和 PWM 之间的负载边界可以进行编程,以涵盖广泛的应用。 低侧压驱动器可用于驱动外部低侧 MOSFET,以实现同步降压,或者不用于标准非同步降压。 低侧驱动器还可用于驱动升压转换器作为前置稳压器,然后由同一 IC 控制降压转换器,从而大大扩展了工作输入电压范围,可降至 2.5V 以下。 ISL85403 提供强大的电流保护。 它使用峰值电流模式控制,具有逐周期电流限制功能。 限流时,它具有频率折返功能;此外,打嗝过流模式可确保在恶劣的短路条件下可靠运行。 ISL85403 具有针对各种故障的全面保护功能,包括过压和过温保护。
Software title
|
Software type
|
公司
|
---|---|---|
iSim:PE 离线模拟工具 iSim Personal Edition(iSim:PE )可加快设计周期并降低项目早期风险,确定可用于当前和下一代设计的部件。
|
Simulator | 瑞萨电子 |
1 item
|
The ISL85403DEMO1Z demonstration board allows for quick evaluation of the ISL85403 synchronous buck or boost-buck controller in the synchronous buck configuration. It...
The ISL85403EVAL2Z board allows for quick evaluation of the ISL85403 synchronous buck or boost-buck controller in the non-inverting buck-boost configuration. It is a...
此参考设计将超级电容器用作备用电源。该板可快速评估两级升压降压配置中的 ISL85403 降压/升压控制器和 ISL9001A 低压差线性稳压器。这是一种经济高效的设计,适用于需要升压和降压能力的低功耗、宽输入电压范围负载点应用。
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
