概览
描述
The RH4Z2501 is a line driver / level shifter IC for IO-link communication with integrated protection. It addresses the IO-Link device physical layer for sensors and actuator systems. Furthermore, the IC can also be used as single channel master. For device configuration and status reading, an OWI communication interface is available. The output drivers allow push-pull operation, with a maximum RDSon of less than 2.5Ω for all operational temperatures. The RH4Z2501 is fabricated in a powerful CMOS mixed-signal technology that allows short supply voltage peaks up to 60V.

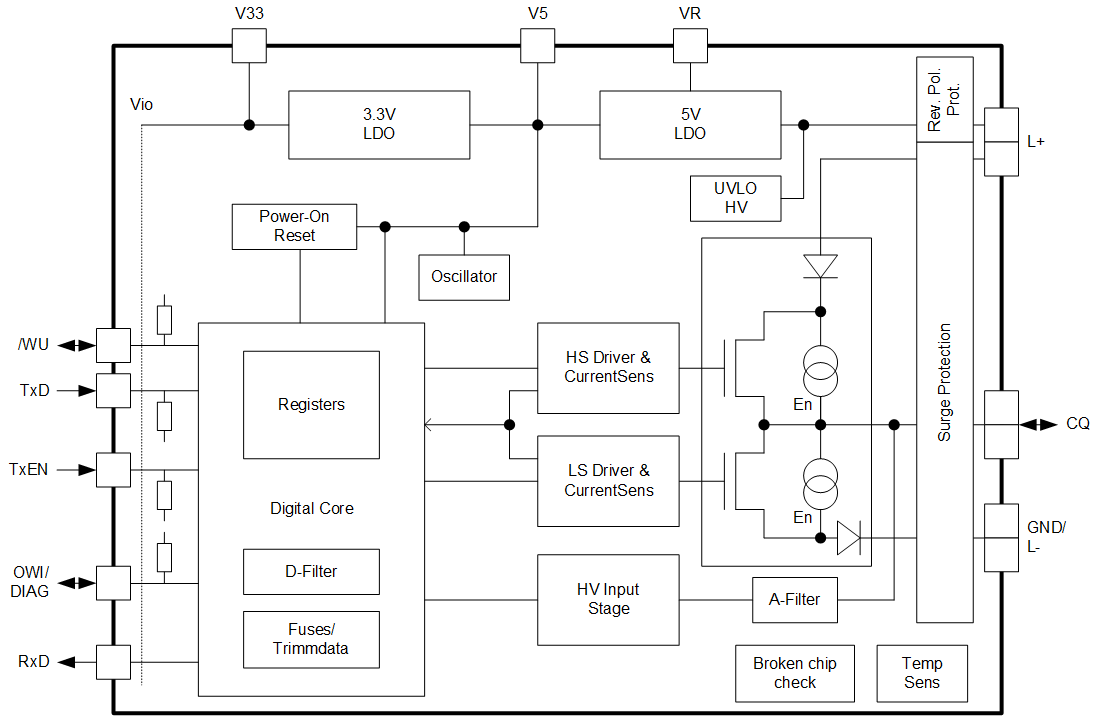

特性
- Voltage supply range from 9V to 36V
- Over-voltage peak robustness of ±60V
- Ambient Temperature range -40°C to 125°C
- Configurable driver output current 50mADC to 400mADC
- RDSON of less than 2.5Ω
- Adjustable driver slew rate
- Integrated Wake-up detection
- MCU assisted Wake-up generation (typ. 700mA)
- OWI digital communication and calibration interface
- Integrated Linear Voltage Regulators 3.3V and 5V
- Glitch filter for receiver
- Integrated protection:
- ±1.25kV/2.5A (peak) surge protection for L+, CQ, GND/L- (8/20 μs pulse acc. IEC 61000-4- 5)
- Reverse polarity protection for L+, CQ, GND/L-
- On-chip diagnostics:
- Over temperature detection
- Supply voltage monitor
- Broken chip detection
产品对比

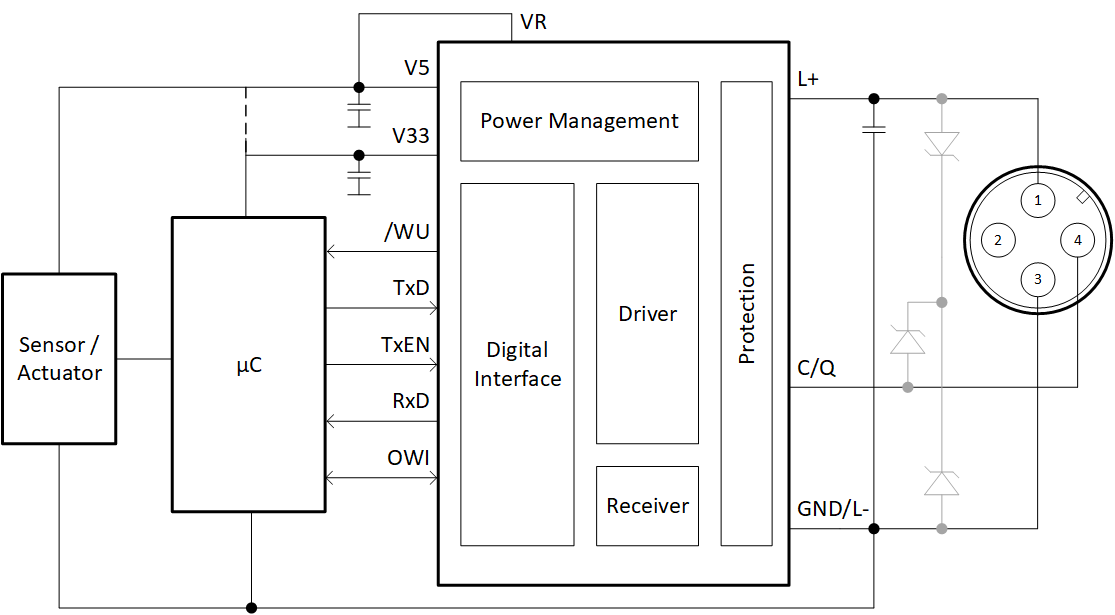

应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 1.29 MB | |
| 应用说明 | PDF 2.25 MB | |
| 应用说明 | PDF 446 KB | |
| 应用说明 | PDF 9.88 MB 日本語 | |
4 items
|
||
设计和开发
样例程序
开发板与套件
评估
RH4Z2501-KIT
有效
Evaluation Kit for RH4Z2501
The RH4Z2501 evaluation kit can be used for a detailed evaluation and configuration of the Renesas RH4Z2501 family. The kit contains two boards, the RH4Z2501 evaluation board and a communication board. The communication board provides a USB interface to the user's computer running the evaluation...
Recommended Documents:
评估
IO-Link Pmod Module for the RH4Z2501 Physical Layer Transceiver
The RH4Z2501-PMOD Board is a Pmod™ module for the RH4Z2501 Renesas silicon evaluation. The purpose of the module is to be used with a standard MCU evaluation board with a compatible Pmod interface to implement an IO-Link device.
Recommended Documents:
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
视频和培训
RH4Z2501 Single Channel IO-Link Line Driver Overview
See how the robust RH4Z2501 combines flexible configurations and embedded diagnostics to simplify IO-Link integration and achieve best-in-class performance.
