ISL9120

有效
产品长期供货

Compact High Efficiency Low Power Buck-Boost Regulator

立即订购

特性

  • Accepts input voltages above or below regulated output voltage
  • Automatic bypass mode functionality
  • Automatic and seamless transitions between buck and boost modes
  • Input voltage range: 1.8V to 5.5V
  • Selectable forced bypass power-saving mode
  • Adaptive multilevel current limit scheme to optimize efficiency at low and high currents
  • Output current: up to 800mA (VIN = 2.5V, VOUT = 3.3V)
  • High efficiency: up to 98%
  • 41μA quiescent current maximizes light-load efficiency
  • Fully protected for over-temperature and undervoltage
  • Small packages
    • ISL9120 - 1.41mm x 1.41mm WLCSP
    • ISL9120IR - 3mm x 3mm 12 Ld TQFN
查找升降压稳定器（集成式 FET） 的其他产品

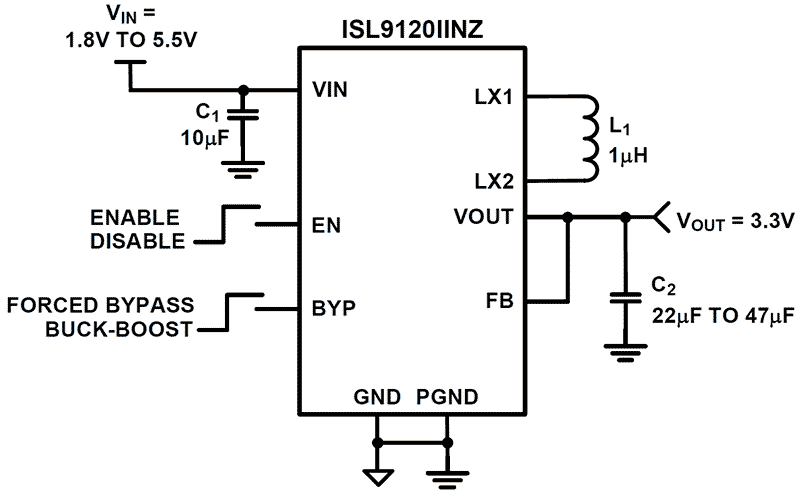

ISL9120 Functional Diagram
ISL9120 High Efficiency Buck-Boost Regulator
ISL9120 Functional Diagram
ISL9120 High Efficiency Buck-Boost Regulator

描述

The ISL9120 and ISL9120IR are highly integrated buck-boost switching regulators that accept input voltages either above or below the regulated output voltage. The regulator automatically transitions between buck and boost modes without significant output disturbance. They also have automatic bypass functionality. When the input voltage is generally within 1% to 2% of the output voltage, there will be a direct bypass connection between the VIN and VOUT pins.

In addition to the automatic bypass functionality, the ISL9120 and ISL9120IR also have forced bypass functionality with the use of the BYP pin. The device is capable of delivering up to 800mA of output current (VIN = 2.5V, VOUT = 3.3V) and provides excellent efficiency due to its adaptive current limit Pulse Frequency Modulation (PFM) control architecture.

The ISL9120 and ISL9120IR are designed for stand-alone applications and support a 3.3V fixed output voltage or variable output voltages with an external resistor divider. The forced bypass power saving mode can be chosen if voltage regulation is not required. The device consumes less than 3.5µA of current over the operating temperature range in forced bypass mode.

The ISL9120 and ISL9120IR require only a single inductor and very few external components. Power supply solution size is minimized by the ISL9120 1.41mm x 1.41mm WLCSP package and the ISL9120IR 3mm x 3mm 12 Ld TQFN package.

产品参数

属性 值
Topology [Rail 1] Buck-Boost
Outputs (#) 1
Input Voltage (Min) [Rail 1] (V) 1.8
Input Voltage (Max) [Rail 1] (V) -
Output Voltage (Min) [Rail 1] (V) 1
Output Voltage (Max) [Rail 1] (V) 5.2
Output Current (Max) [Rail 1] (A) 0.8
IQ [Rail 1] (µA) 41
Control Type Hysteretic Mode
POR Yes
SYNCH Capability No
Peak Efficiency (%) 98
Qualification Level Standard

封装选项

Pkg. Type Pkg. Dimensions (mm) Lead Count (#) Pitch (mm)
TQFN 3.0 x 3.0 x 0.75 12 0.5
WLCSP-BP 1.5 x 1.5 x 0.00 9 0.4

应用方框图

Health Monitor Band Block Diagram
健康监测手环
一款可穿戴的健康手环，它使用压电传感器读取用户的心率和呼吸。
Smart Ring Block Diagram
用于健康监测的可穿戴智能联网戒指
智能戒指将健康追踪与 NFC 充电和支付以及低功耗 LE 蓝牙功能相结合，可发挥高效性能。
Solar-Powered Location Tracker Block Diagram
太阳能定位跟踪器
太阳能定位跟踪器提供模块化设计、多功能连接和光伏能量收集。
Interactive block diagram of the AMR retrofit module featuring flexible low-power MCU options and a buck-boost DC/DC converter.
自动抄表器（AMR）改装模块
AMR 改装模块提供了经济高效的计量方案、灵活的 MCU 设计以及更长的电池使用寿命。
PC Water Cooling System with Wireless Control Block Diagram
带无线控制的 PC 水冷系统
先进的 PC 水冷器，具有无线控制、散热高效和配置灵活等特点。
Wireless Headphones Block Diagram
具有超长电池寿命的蓝牙无线耳机
该款无线耳机具有超长的电池寿命、高级安全性和紧凑小型的设计。

其他应用

  • Smartphones and tablets
  • Portable consumer and wearable devices

当前筛选条件

加载中
加载中

The ISL9120 offers designers the flexibility to cover a variety of design needs by operating from a Vin of 1.8V to 5.5V and an adjustable output voltage from 1V to 5.2V. Its adaptive PFM operation with forced bypass mode and 2A switches support both low load and high load currents with high efficiency, ensuring longer battery life and less heat buildup. The regulator also delivers 800mA current with 2.5V input and 3.3V output.

Transcript

Hi, my name is Gaurav Mital. I'm an applications engineer for the Intersil's mobile power product line. Today I'm gonna be talking about a new power product solution which is going to be a good fit for wearables and mobile systems.

Wearables are becoming very popular and system designers are being constantly challenged to create solutions which are smaller, more efficient and cost effective, and Intersil is committed to be a leader in providing solutions for these products.

A typical power solution for a wearable device uses three DC/DC regulators and three to five LDOs depending on the number of applications. As you can see, Intersil's existing power solutions caters to all blocks but we identified a couple of opportunities where using a buck-boost can be more efficient.

How does the buck-boost add value to the system? A lithium-ion battery voltage varies from 4.2V down to 2.7V. For a system which requires 3.3V, a buck-boost regulator helps in utilizing broader range of the battery.

Also, multiple applications in the mobile are powered by the LDOs like the Wi-Fi and the LCD module which gives buck-boost an edge as it provides better efficiency in these conditions.

When the VBAT is near 3.3V, a burst current can cause local node voltage to droop to 2.7V which may shut down the application and this can also be avoided by using a buck-boost regulator.

I'm excited to share that Intersil has developed a new compact, highly efficient, low powered buck-boost regulator ideal for wearable and hand-held applications, the ISL9120.

The ISL9120 operates from 1.8V to 5.5V. The output voltage is adjustable from 1V to 5.2V which provides flexibility to cover a variety of design needs. The adaptive PFM operation helps in getting excellent efficiency and low output ripple. This part is capable of delivering 800mA current with 2.5V in and 3.3V out. It is offered in a 1.4mm x 1.4mm chip scale package.

The ISL9120 offers excellent efficiency for both low load and high load conditions. The adaptive PFM operation helps in attaining up to 98% efficiency at higher loads and more than 86% at lower load conditions. This ensures less power drain and less heat build up which extends the battery life and saves board space by eliminating the need for external heat sinks.

During a systems stay alive condition where regulation is not a must, the power can be put in force bypass mode in which the power consumption reduces to ultra-low quiescent current of less than 0.5μA. As the part is only 1.4mm x 1.4mm, the overall solution size is very small. This helps in getting a very competitive price solution.

The 98% efficiency, low power consumption and ultra-small PCB footprint, the ISL9120 simplifies design and extends battery life. The wide input and output voltage range provides flexibility to cover a variety of design needs.

To order samples, eval boards or download a datasheet, please visit the ISL9120 product page. Thank you for watching.
