The RAA211320 is an integrated 30V, 2A synchronous buck regulator with current mode constant on-time (COT) control. The RAA211320 features comprehensive protection including input undervoltage lockout (UVLO), overcurrent protection (OCP), output undervoltage protection (OUVP), and over-temperature protection (OTP).

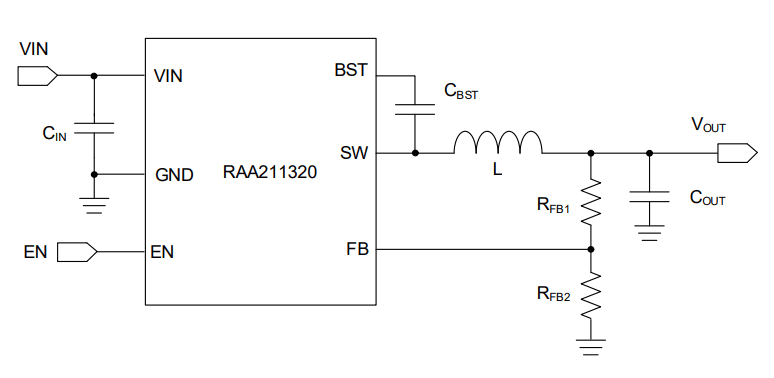

RAA211320 Typical Application Circuit Diagram

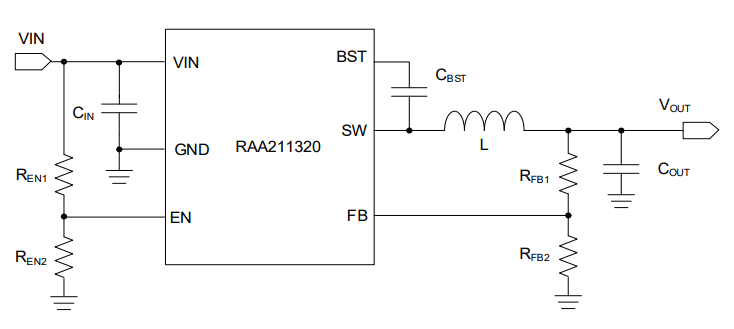

RAA211320 Diagram with VIN UVLO Programming by ENABLE
RAA211320 Typical Application Circuit Diagram
RAA211320 Diagram with VIN UVLO Programming by ENABLE
  • 4.5V to 30V input supply range
  • Up to 2A output current
  • Integrated high-side (125mΩ) and low-side (75mΩ) MOSFETs
  • 400μA quiescent current
  • Minimum on-time of 70ns & Minimum off-time of 225ns
  • 0.765V reference voltage with 2% accuracy
  • PFM mode under light load condition
  • Current mode Constant On-Time (COT) control with internal compensation
  • Internal 0.8ms soft start time
  • Protection: Low-Side Overcurrent (LSOC) limit, input Undervoltage Lockout (UVLO), Over-Temperature Protection (OTP), Output Undervoltage Protection (OUVP) with Hiccup Mode
  • Accurate EN threshold
  • 6 LD TSOT23 package

应用

  • General purpose
  • Industrial power supplies
  • Embedded systems and I/O supplies

文档

文档标题
类型 日期
RAA211320 Datasheet
PDF 5.23 MB 		数据手册
Industrial Power Management Brochure
PDF 5.51 MB 日文 		手册
RAA211320 Design Spreadsheet
XLSX 142 KB 		其他
3 items

设计和开发

软件与工具
iSim:PE Offline Simulation Tool
iSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.
下载
RAA211320 Startup iSim:PE ModelRAA211320 AC Analysis iSim:PE Model
 Simulator 瑞萨电子
1 item

开发板与套件

RTKA211320DE0030BU Evaluation Board

RTKA211320DE0030BU

评估
立即订购

RAA211320 Synchronous Buck Evaluation Board with 4.5V to 30V Input Range, 3.3V 2A Output

The RTKA211320DE0030BU board evaluates the RAA211320, a DC/DC synchronous step-down regulator with current mode Constant On Time (COT) control. The RAA211320 supports a...

特色文件:
RTKA211320DE0030BU Evaluation Board Manual

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块
Diagram of ECAD Models

模型

文档标题
类型 日期
RAA211320 AC Analysis iSim:PE Model
WXSCH 95 KB 		模型 - iSim
RAA211320 Startup iSim:PE Model
WXSCH 77 KB 		模型 - iSim
2 items

产品选择

    Processing table
    PLP
    Pkg. Type
    Carrier Type
    MOQ
    购买 / 样片
    器件号
    RAA2113204GP3#JA0
    play_circle有效
    memory
    view_in_ar
    可提供样品
    		 2033 12月 TSOT Reel 3000 获取样片,
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
