概览

除了具有低电流消耗（CPU工作时：37.5μA/MHz；STOP时：200nA）外，RL78/G22微控制器还配备了丰富的电容触摸通道。完备的16-48引脚封装和32KB-64KB闪存，扩充了新一代RL78通用微控制器的产品线。

除了最大工作频率32MHz、广泛的工作电压范围（1.6V-5.5V） 和增强的模拟和安全功能之外，SNOOZE模式可编程控制器还可大幅降低间歇工作的功耗。此外，还可为RL78/G22提供丰富的开发环境，评估板（Fast Prototyping Board）只需连接USB线而无需额外工具即可编写和调试程序，智能配置器（Smart Configurator）可通过GUI简化设计。它与现有的RL78系列兼容，可无缝切换，适用于从家电、消费类电子产品到工业设备的广泛用途。

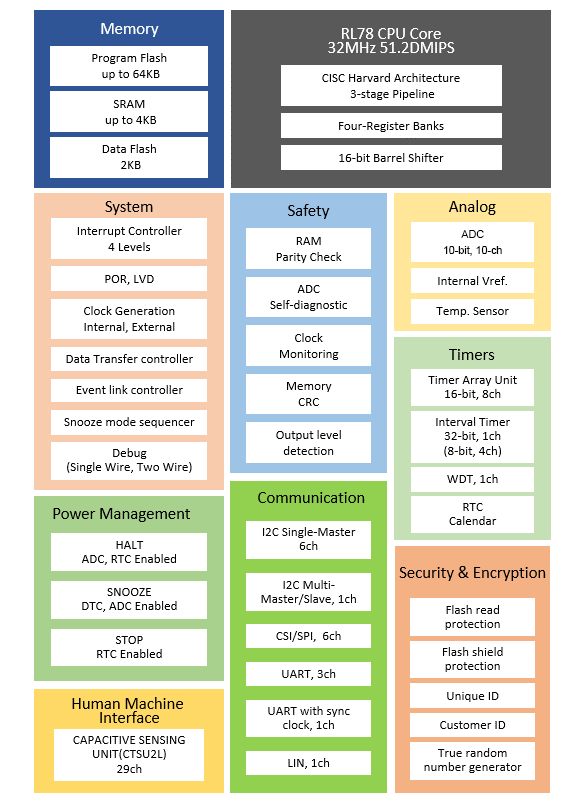

RL78/G22 Block Diagram
RL78/G22 Block Diagram
  • CPU：RL78核心，最高32MHz
  • 电压：1.6V至5.5V
  • 封装：16引脚至48引脚
  • 闪存：程序闪存：32-64KB，SRAM 4KB，数据闪存2KB
  • 工作温度范围：可达105°C
  • 增强型电容式感应单元（CTSU2L）
  • 定时器：8路16位定时器、1路看门狗定时器、1路32位间隔定时器
  • PWM：7路PWM输出
  • 模拟功能：10路10位A/D转换器
  • 片上振荡器频率（MHz）：高速：最高32MHz
  • 中速：最高4MHz
  • 低速：32.768kHz
  • 贪睡模式排序器
  • 事件链路控制器
  • 其他：RTC、上电复位、低电压检测
  • 封装：SSOP、LQFP、HWQFN、WFLGA
