特性
- Cortex-A55 (1.8GHz) x 4 核
- Cortex-M33 (200MHz) x 1 核
- AI 加速器 DRP-AI
- Arm Mali™-C55 ISP（可选）
- 1.5MB 片上 SRAM
- LPDDR4/LPDDR4X 内存接口
- 千兆以太网接口 × 2
- USB 2.0 接口 x 1（主机/功能）
- USB 3.2（Gen2）接口 x 1（仅限主机）
- PCIe 接口（Gen3 /2 线）x 1
- MIPI CSI-2 摄像头接口 x 2
- CAN 接口 (CAN FD) x 6
- AD 转换器 × 24
- BGA 封装（15x15mm 840 引脚，0.5mm 间距）
- 探索瑞萨验证的 DRAM 兼容性列表

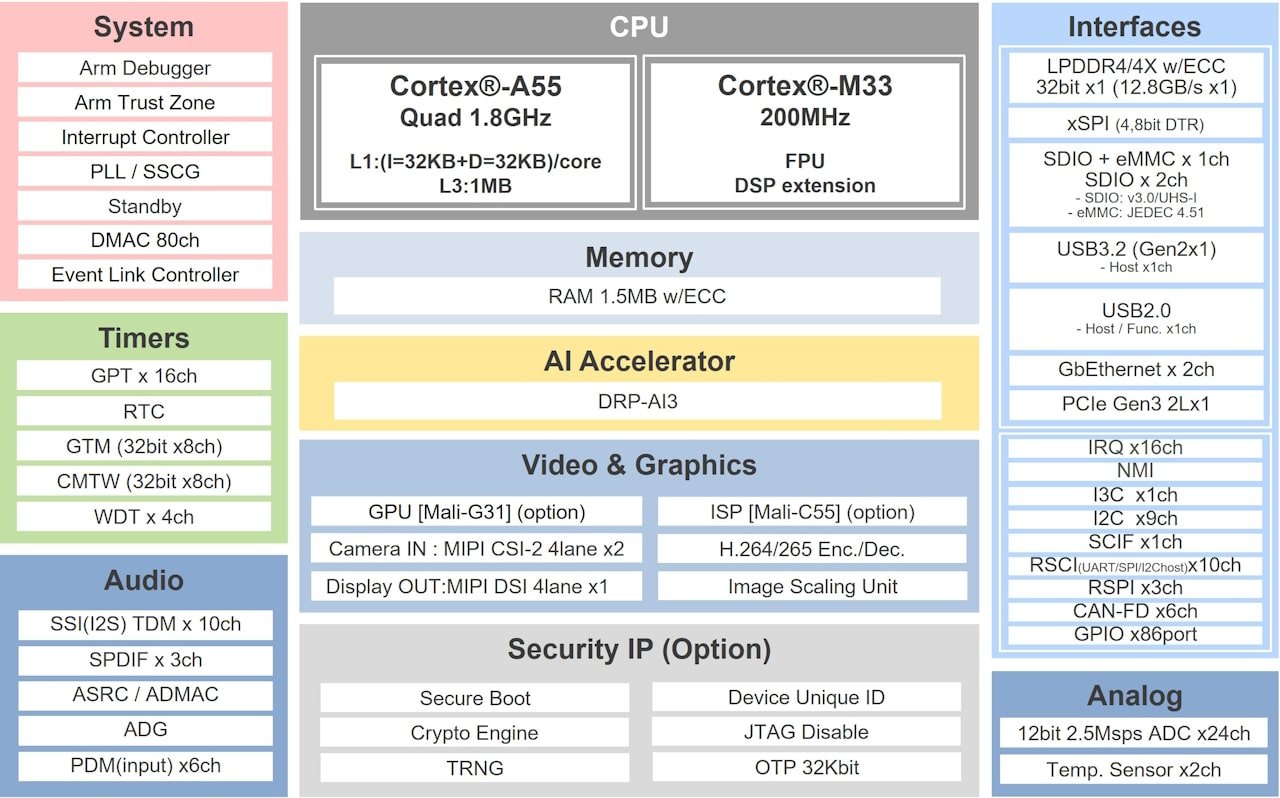

RZ/V2N Block Diagram
描述
RZ/V2N 是一款视觉 AI 微处理器 (MPU)，配备瑞萨电子专有的 AI 加速器 (DRP-AI3)，支持高达 15TOPS 的 AI 性能。 其 CPU 为四核 Arm® Cortex®-A55 (1.8GHz) 和 Arm Cortex-M33 (200MHz)。 RZ/V2N 配备了 ISP（图像信号处理器）和双通道 MIPI® CSI-2® 摄像头接口，可支持双摄像头信号处理，这对实现视觉系统至关重要。 它还配备了 PCIe® 和 USB 3.2 等高速接口，可扩展外部设备。 RZ/V2N 是一款理想的微处理器，适用于需要低功耗和高级人工智能推理的应用，如 DMS（驾驶员监控系统）、监控摄像头、移动机器人等。
产品参数
| 属性 | 值 |
|---|---|
| CPU Architecture | Arm |
| Main CPU | Cortex-A55 x 4 |
| Program Memory (KB) | 0 |
| RAM (KB) | 1536 |
| Carrier Type | Bulk (Tray), Full Carton (Tray) |
| Supply Voltage (V) | 3.135 - 3.465 |
| I/O Ports | 86 |
| NPU | Yes |
| DRAM I/F | LPDDR4-3200, LPDDR4X-3200 (32-bit) |
| 3D GPU | Mali-G31, No |
| Temp. Range (°C) | Tj = -40 to +125 |
| Operating Freq (Max) (MHz) | 1800 |
| Ethernet speed | 10M/100M/1G |
| Ethernet (ch) | 2 |
| EtherCat (ch) (#) | 0 |
| USB FS (host ch/device ch) | ( 2 / 1 ) |
| USB HS (host ch/device ch) | ( 2 / 1 ) |
| USB SS (host ch/device ch) | ( 1 / 0 ) |
| PCI Express (generation and ch) | PCIe (Gen.3.0 2Lane) x 1 ch |
| SCI or UART (ch) | 10 |
| SPI (ch) | 3 |
| I2C (#) | 9 |
| CAN (ch) | 0 |
| CAN-FD (ch) | 6 |
| Wireless | No |
| SDHI (ch) | 3 |
| High Resolution Output Timer | No |
| PWM Output (pin#) | 0 |
| 32-Bit Timer (ch) | 32 |
| 16-Bit Timer (ch) (#) | 0 |
| 8-Bit Timer (ch) | 0 |
| Standby operable timer | No |
| Asynchronous General Purpose Timer / Interval Timer (ch) | 0 |
| 16-Bit A/D Converter (ch) | 0 |
| 14-Bit A/D Converter (ch) | 0 |
| 12-Bit A/D Converter (ch) | 24 |
| 10-Bit A/D Converter (ch) | 0 |
| 24-Bit Sigma-Delta A/D Converter (ch) | 0 |
| 16-Bit D/A Converter (ch) | 0 |
| 12-Bit D/A Converter (ch) | 0 |
| 10-Bit D/A Converter (ch) (#) | 0 |
| 8-Bit D/A Converter (ch) | 0 |
| Capacitive Touch Sensing Unit (ch) | 0 |
| Graphics LCD Controller | No |
| MIPI Interfaces (DSI) (ch) | 1 |
| MIPI Interfaces (CSI) (ch) | 2 |
| Image Codec | H.264/H.265 |
| Segment LCD Controller | No |
| Security & Encryption | AES, RSA, ECC, SHA-1, SHA-224, SHA-256, GHASH, TRNG, No |
封装选项
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| FCBGA | 15 x 15 x 2.3 | 840 | 0.5 |
应用方框图
 | 协作机器人（Cobot） 基于 ROS 2 构建并具备视觉、语音和实时控制能力的 AI 驱动协作机器人系统。 |
 | AI 行车记录仪 采用 AI 技术的行车记录仪，具备高性能视觉处理、ADAS 和实时智能分析功能。 |
 | 基于 RZ/V2N 的 Raspberry Pi 单板计算机 高性能视觉 AI 系统，支持 4K 摄像头、高效的 AI 处理和紧凑的 SBC 设计。 |
 | 人工智能监控摄像机 具有 DRP-AI 功能的 AI 监控摄像机可通过 4K 成像和低功耗提高安全性。 |
其他应用
- 仪表盘摄像头/驾驶员监控系统
- AI 监控摄像头
- AI 人员计数摄像头
- AI 可视化检测摄像头
- 扫地机器人
- 割草机器人
- 智能门铃
- 访问控制
完成您的设计
寻找相关的产品，完善您的设计
Renesas Boards & Kits
RZ/V2N-EVK
有效
RZ/V2N 四核视觉 AI MPU 评测套件
RZ/V2N AI MPU 评测套件 V2.0 (RTK0EF0186C03001BJ) 用于评测我们的 RZ/V2N 四核 视觉 AI MPU。 该套件包括一个 CPU 板和一个扩展板（EXP 板）。 V2.0 增加了 DDR Suspend to RAM （内存挂起）支持，并对电源供电电路进行了相应的配置调整。 我们提供了 AI 软件开发包（AI SDK）作为该评测套件的软件开发环境。 它支持对低功耗 AI 推理、视频流和其他内置功能进行评测。 如果您使用的是较早版本的 EVK，请参考 V1.0 文档。
与上一版本产品（V1.0）的差异
- DDR Suspend to RAM 功能
