RA2L2 产品组是 RA 系列的入门级单芯片微控制器,基于 48MHz Arm® Cortex-M23® 内核,具有高达 128KB 的代码闪存以及 16KB SRAM 存储器。 这款产品采用优化的制程和瑞萨电子的低功耗工艺技术,达到业界一流水平的超低功耗 MCU。 RA2L2 产品组支持 1.6 V 至 5.5 V 的宽工作电压范围,具有丰富的串行通信功能,例如 I3C、SSI、低功耗 UART、CAN、无晶振 USB FS 以及 USB Type-C 接口。 RA2L2 可与 RA2L1 产品组、RA2E1 产品组和 RA2A1 产品组引脚和外围设备兼容,特别适用于电池供电应用以及空间有限的应用,以及其他需要高性能和低功耗的系统。

特性

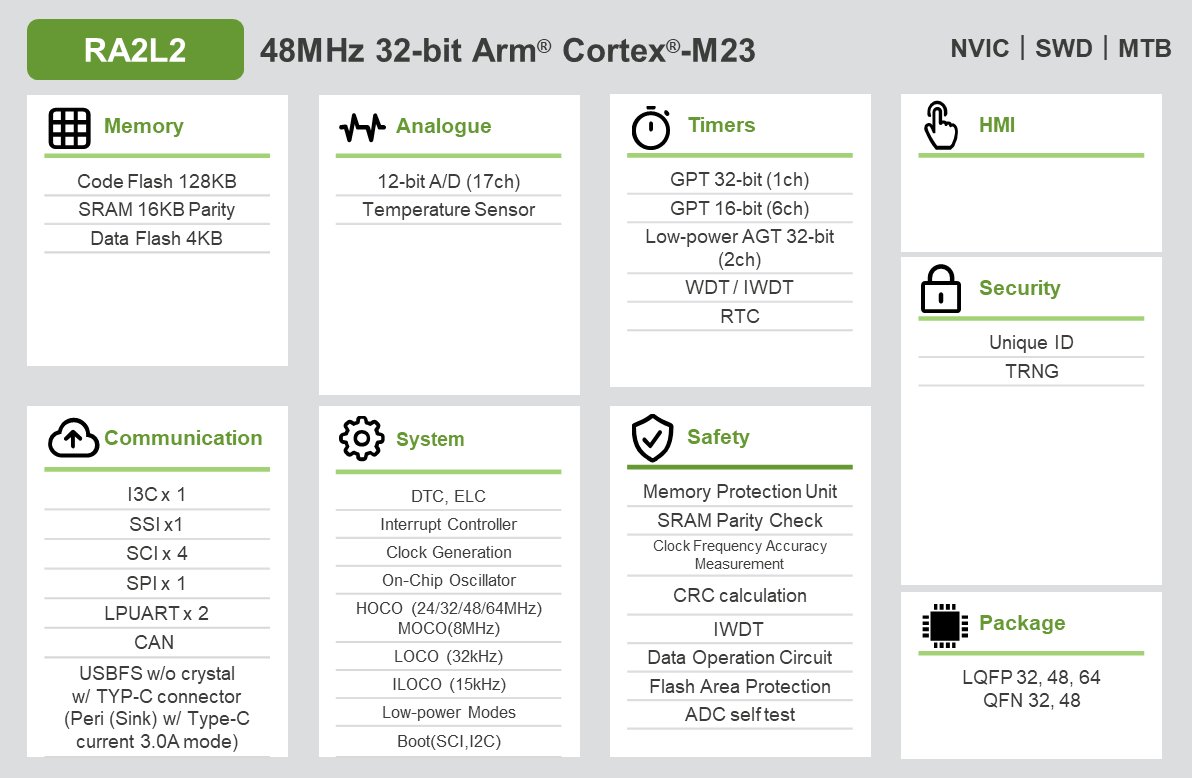

  • 48MHz Arm Cortex-M23 内核
  • 高达 128KB 闪存和 16KB SRAM
  • 4KB 数据闪存(数据存储方式类似于 EEPROM)
  • 可从 32 引脚封装扩展至 64 引脚封装
  • -40 至 125°C的宽工作温度范围
  • 1.6V 至 5.5V 的宽电压范围
  • +-1% 高精度、高速片上振荡器
  • 32 位通用 PWM 定时器,低功耗异步通用定时器
  • 16 位通用 PWM 定时器
  • 实时时钟
  • 12 位模数转换器
  • 温度传感器
  • 无晶振 USB FS,USB Type-C 接口
  • SCI(UART、简化 SPI、简化 I2C、智能卡接口)
  • 低功耗 UART
  • I3C 总线
  • CAN
  • SPI
  • SSI(串行音频接口)
  • 随机数生成器
  • 安全功能

产品对比

应用

文档

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
RA 可扩展性强的配置软件包 (FSP)
FSP 是一款增强型软件包,旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
Software Package 瑞萨电子
e² studio - RA 产品家族信息
基于 Eclipse 的瑞萨集成开发环境(IDE)。
IDE and Coding Tool 瑞萨电子
QE for USB: A Dedicated Tool for USB [Technical Preview Edition]
Debugging assistance tool for developing systems which use the USB [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RX, RL78]
Solution Toolkit 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
Programmer (Unit/SW) 瑞萨电子
RA Smart Configurator
The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
Solution Toolkit 瑞萨电子
Renesas Flash Programmer (Programming GUI)
闪存编程软件【支持 MCU/MPU 和设备:RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
Programmer (Unit/SW) 瑞萨电子
SEGGER emWin GUI Library for Renesas RA Products
SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
Imaging SEGGER
SEGGER J-Link and J-Trace PRO
The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
Emulator SEGGER
IAR Embedded Workbench for Arm
IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
IDE and Coding Tool IAR Systems
Arm® Keil® MDK
Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
IDE and Coding Tool Arm® Keil® MDK Arm®
Reality AI Utilities
用于 AI 开发和性能验证的往返工作流程,允许收集数据、优化模型并直接部署到 Renesas 硬件
Solution Toolkit 瑞萨电子
13 items

开发板与套件

模型

ECAD 模块

点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

Diagram of ECAD Models

模型

类型 文档标题 日期
模型 - IBIS ZIP 1.12 MB
1 item

产品选项

当前筛选条件

视频和培训

RA2L2 48MHz Ultra-Low-Power Arm Cortex-M23 MCU

This video introduces the RA2L2 MCU, supporting USB Type-C® standard Rev2.4 and USB FS for advanced connectivity. Learn how it enhances power efficiency, simplifies designs, and accelerates time to market for USB-powered applications.
