概览
描述

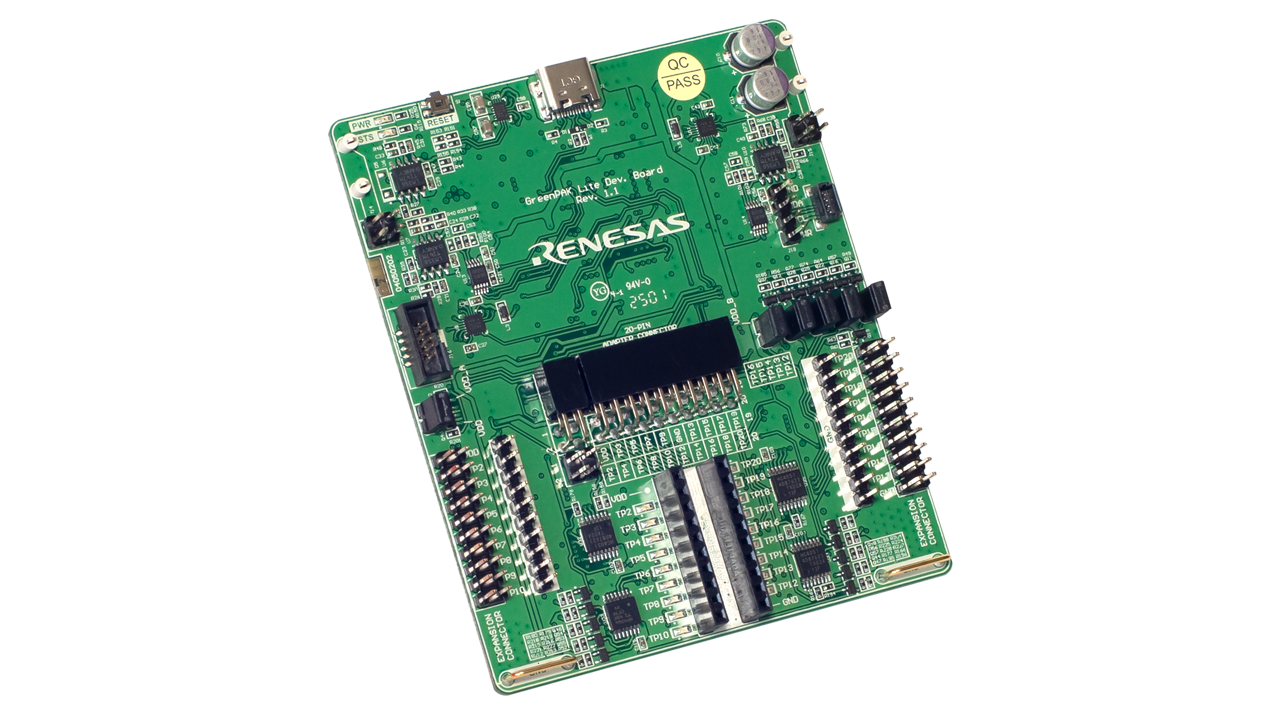

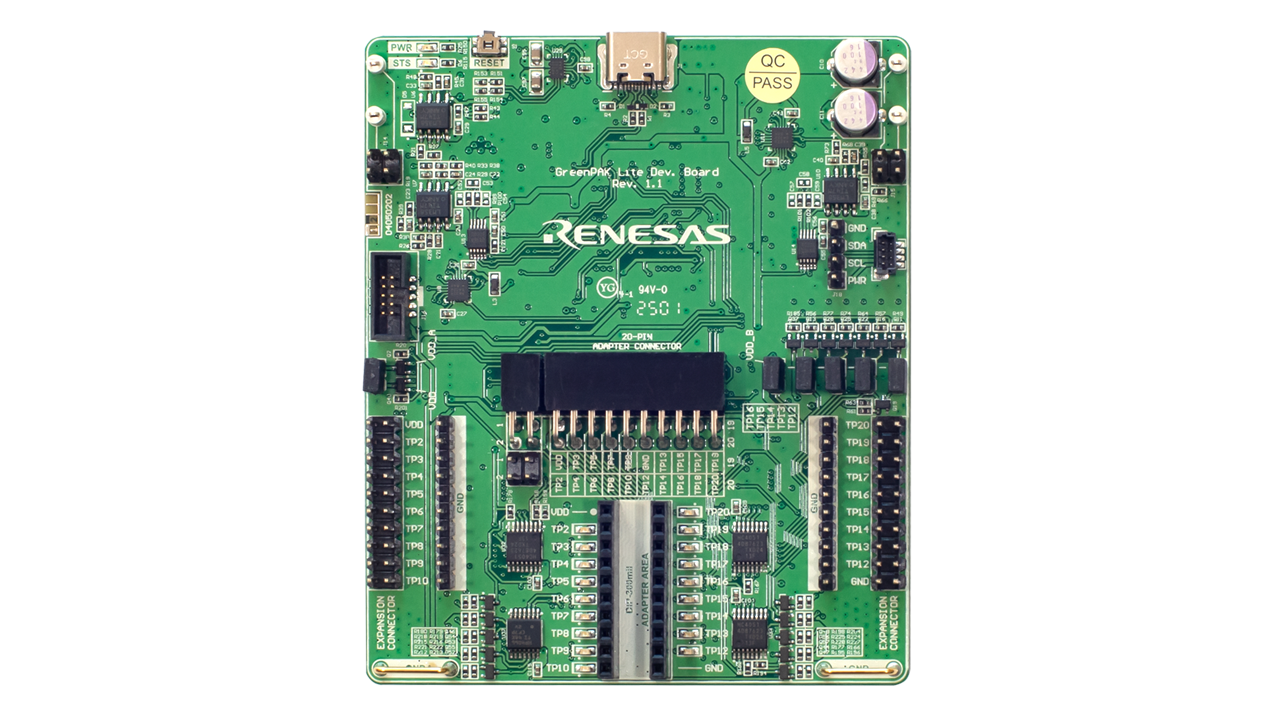

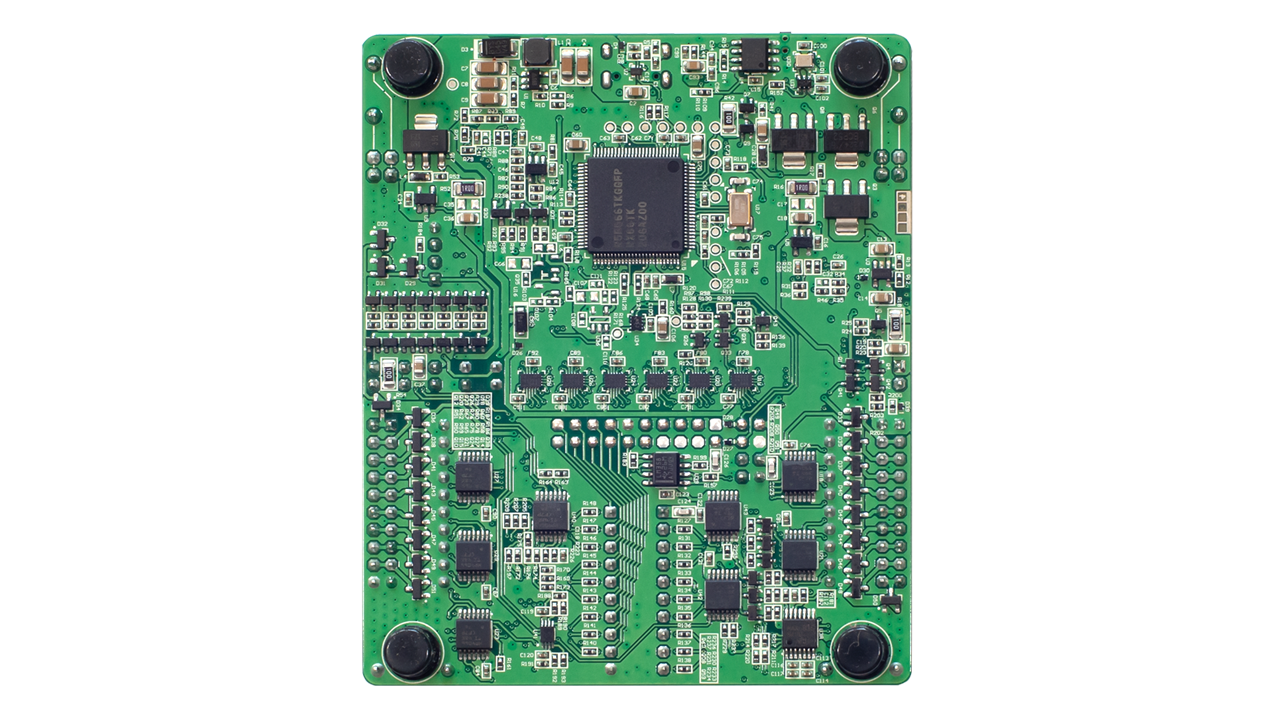

GreenPAK Lite 开发板为 GreenPAK 设备提供完整的编程、仿真和测试功能，与 Go Configure™ 软件中心配对工作。 板卡功能由瑞萨电子的 RX66T MCU 提供。
特性
- USB 2.0 板电源和通信
- DIP 和插座适配器支持
- 双 VDD IC 支持
- 内置电流计給两个 IC 的 VDD 源
- USB-I2C 桥接器功能
- 18 个可单独配置的测试点（TP）：
- 板载 LED 状态指示
- 上拉、下拉、GND、VDD、Hi-Z、VDD2
- 可编程软件按钮
- 可配置的双引脚接头，給用户原理图集成和信号监控使用（扩展连接器）
- 四个测试端子，用于连接示波器
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| Go Configure Software Hub Go Configure Software Hub 为各种产品提供开发支持，包括 GreenPAK 可配置混合信号矩阵和 ForgeFPGA™ 器件。
|
Software Package | 瑞萨电子 |
1 item
|
||
相关评估板和套件
开发
SLG4AB2
有效
32-Pin to 20-Pin Adapter for GreenPAK SLG468x
The SLG4AB2 is a 32-pin to 20-pin adapter for SLG468x development on the SLG4DVKADV Advanced Development Board.
Recommended Documents:
评估
Training Adapter Board for SLG46826
The SLG4TA20SP-SLG46826 is a training adapter board for the SLG46826 programmable mixed-signal matrix with in-system programmability.
开发
GreenPAK Logic Level Adapter Board
The Logic Level Adapter Board is designed to provide the full functionality of the Advanced Development Board when working with the SLG475x2V/SLG475x3M.
Recommended Documents:
开发
SLG4SA-DIP
有效
GreenPAK DIP Adapter for GreenPAK Advanced Development Board
The GreenPAK™ DIP Adapter for the GreenPAK Advanced Development Board allows for using the SLG46xxxV-DIP and SLG47xxxV-DIP prototyping boards with the GreenPAK Advanced Development Board. It acts as the bridge between the advanced and DIP development platforms.
Recommended Documents:
