Renesas Starter Kit+ for RX65N-1MB (Discontinued product)
The Renesas Starter Kit+ for RX65N is the perfect starter kit for developers who are new to the RX65N. The kit includes an LCD display module, on-chip debugging...
概览
简介

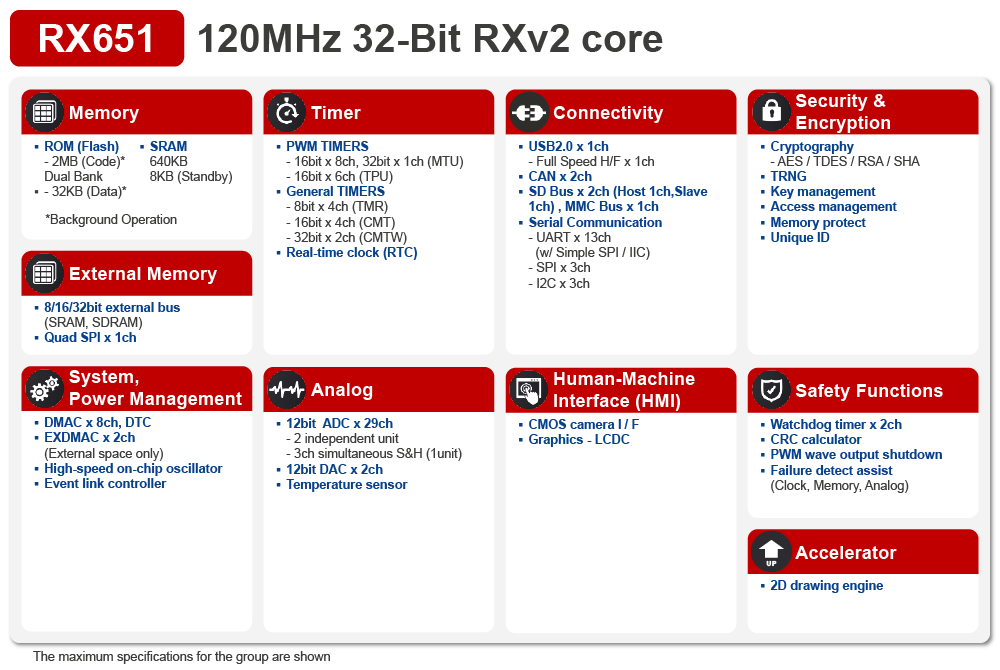

RX651 系列 32 位通用微控制器非常适用于需要增强安全性、连接功能和 HMI 的物联网设备。RX651 系列微控制器内置大容量闪存和 RAM，具有多种封装，可用于各种应用。
特性
- RXv2 内核 120 MHz 工作频率 (34 CoreMark/mA)
- 2.7 至 3.6 V 工作电压
- 多种封装类型：64引脚（4.5mm x 4.5mm,BGA）至176引脚
- 配备各种通信接口，USB、CAN、SD 主机接口和四通道 SPI。
- 最大2MB程序闪存，640KB SRAM
- DualBank Flash 使得固件更新更方便 *1
- HMI
- TFT-LCD 控制器和 2D 图形引擎可以减少 LCD 显示时的 CPU 负载。*1
安全
- 配备内存保护功能，可以防止非法访问闪存
- 配备TSIP，防止关键数据泄露 *1
- 配备各种加密引擎：AES、TRNG、TDES *1、RSA*1、SHA*1
*1：仅限代码闪存大小为 1.5 MB 或以上的产品

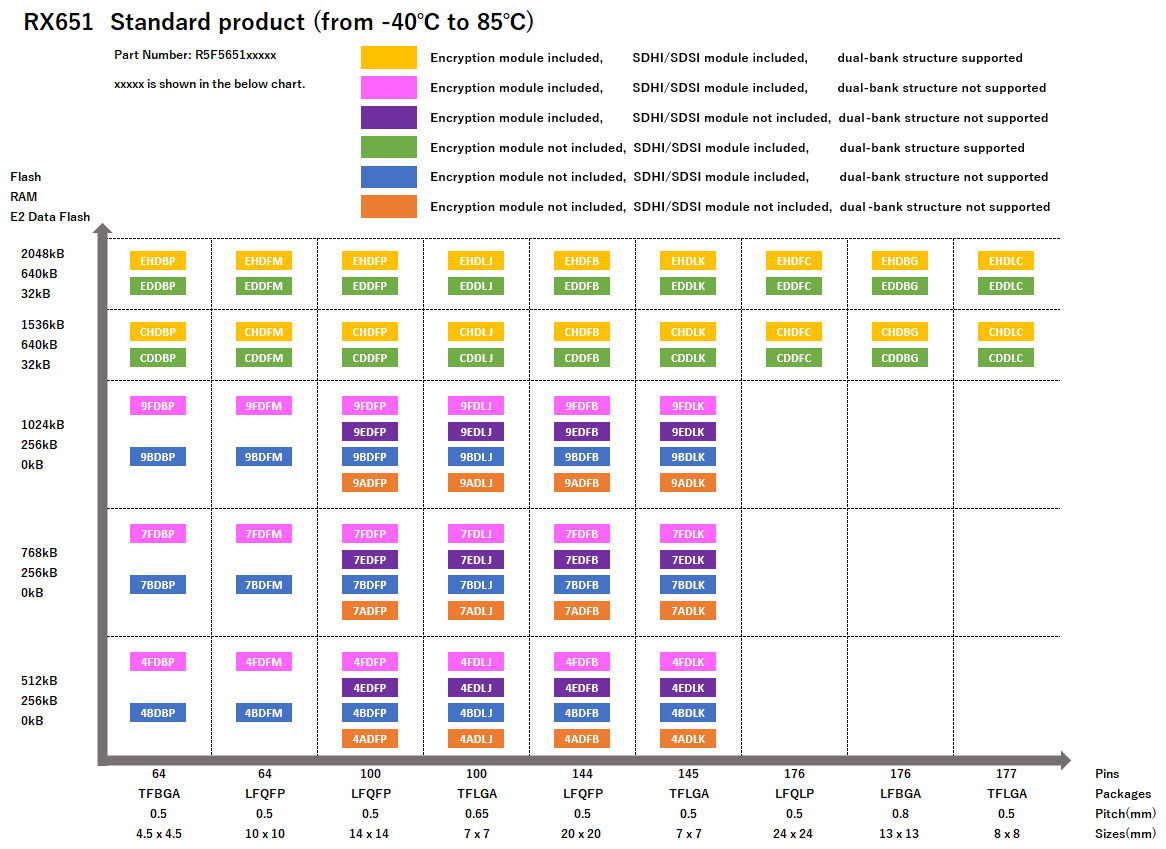

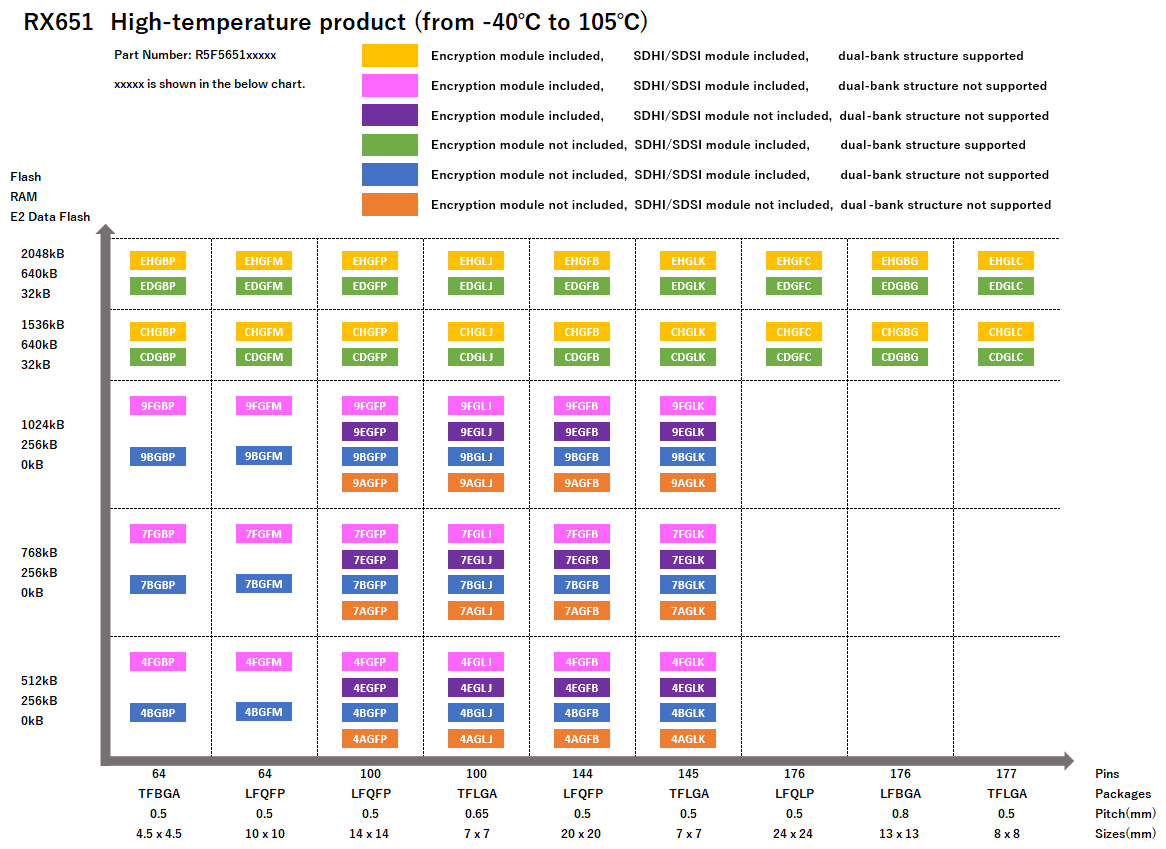

产品对比
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| Sub-GHz/Wi-SUN Protocol Stack Software stack for Sub-GHz/Wi-SUN wireless network applications
|
Protocol Stack | 瑞萨电子 |
| DALI Master Controller GUI The DALI Master Controller GUI controls an RL78/I1A lighting communication master evaluation board
|
Code Generator | 瑞萨电子 |
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | 瑞萨电子 |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | 瑞萨电子 |
| FAT File System [M3S-TFAT-Tiny] for the RX Family FAT file system for RX Family
|
File System | 瑞萨电子 |
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| MultiMediaCard / eMMC Driver for RX Family Device driver for controlling MultimediaCard using MultimediaCard Interface (MMCIF) built-in the MCU
|
eMMC | 瑞萨电子 |
| TCP/IP protocol stack [M3S-T4-Tiny] for RX Family Ultracompact TCP/IP protocol stack (high-speed version) for RX
|
Protocol Stack | 瑞萨电子 |
| SD Card Driver for RX Family SD Card Driver for RX Family (SDHI)
|
SD Card | 瑞萨电子 |
| Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
|
Security / Crypto | 瑞萨电子 |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | 瑞萨电子 |
| Sound Playback/Compression System [M3S-S2-Tiny] for RX Family Sound playback system for RX Family
|
Sound / Voice | 瑞萨电子 |
| USB Drivers Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP
|
USB | 瑞萨电子 |
| Code Generator Plug-in Automatic driver generation tool for internal peripheral I/O modules through GUI settings [Standard features for Renesas IDE "e² studio" and CS+] [Support MCU/MPU: RL78, V850, 78K, RX]
|
Code Generator | 瑞萨电子 |
| RX Family Renesas FreeRTOS FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
|
FreeRTOS | 瑞萨电子 |
| Renesas Flash Programmer (Programming GUI) 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| QE for TCP/IP: A Dedicated Tool for TCP/IP Development [Technical Preview Edition] Debugging assistance tool for developing systems which use the TCP/IP. For use in developing embedded systems which use the M3S-T4-Tiny communications protocol software library for the RX family. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| QE for UART: A Dedicated Tool for UART [Technical Preview Edition] Debugging assistance tool for developing systems which use the UART communication function. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| QE for USB: A Dedicated Tool for USB [Technical Preview Edition] Debugging assistance tool for developing systems which use the USB [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | 瑞萨电子 |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | 瑞萨电子 |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| EZ-CUBE3 EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
|
Emulator | 瑞萨电子 |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | 瑞萨电子 |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | 瑞萨电子 |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | 瑞萨电子 |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | 瑞萨电子 |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
| I²C Serial EEPROM Driver Device Drivers for I²C Bus Serial EEPROM R1EX24xxx Series, R1EV24xxx Series and HN58X24xxx Series
|
Serial Memory | 瑞萨电子 |
| SPI Serial EEPROM Driver Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series
|
Serial Memory | 瑞萨电子 |
| Firmware Update module By using the firmware update module, users can easily incorporate firmware update functionality and secure boot functionality into their applications.
|
Security / Crypto | 瑞萨电子 |
| JPEG Encode/Decode Library All-Software JPEG Software Library All-Software JPEG Software Library that comprises the JPEG Decoder and the JPEG Encoder
|
Imaging | 瑞萨电子 |
|
39 items
|
||
样例程序
开发板与套件
Renesas Starter Kit+ for RX65N-2MB
The Renesas Starter Kit+ for RX65N-2MB is the perfect starter kit for developers who are new to the RX65N (Code Flash 2MB, Pin Count 176-pin). The kit includes an LCD...
Renesas RX65N Cloud Kit
The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers....
RX65N Envision Kit
The Envision Kit allows quick and easy evaluation of the RX65N microcontrollers group, which is an excellent choice for your next low cost HMI (Human Machine Interface)...
Target Board for RX65N
The Target Board for RX65N provides an entry point to evaluation, prototyping and developing for the RX65N MCU. Moreover, since this board incorporates an emulator...
CPX3 Evaluation Kit for DC under 48V (J80D1 with RX651+Audio circuit)
The Renesas CPX3 Evaluation Kit J80D1 is a power line communication (PLC) evaluation kit for direct current (DC) power lines that can be used to carry out software...
Cloud Kit Based on RX65N MCU Group
The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services.
With...
Hybrid PLC and Sub-GHz Communication Evaluation Kit
This product is an evaluation kit for developing software and evaluating systems compatible with Renesas' PLC modem IC R9A06G037 and Renesas’ Sub-GHz wireless IC...
工业自动化功能安全参考板 - 采用 RX MCU 的参考评估板
工业自动化功能安全参考板可对瑞萨电子的安全软件进行评估，并根据瑞萨电子在安全系统规范和应用方面的经验，进行详细的设计和安全分析。该参考板可用作模板，从而缩短系统开发时间。
特色文件:
CPX4 DC-PLC 评估套件 M01D1
该产品是一个基于 DC 电力线通信的评估套件，用于开发和评估与瑞萨 PLC 调制解调器 IC R9A06G061 兼容的系统。 该产品是一个由模拟前端和 DC 电力线通信所需的控制 MCU 组成。
为了使用该产品评估 PLC 通信，则需要 PHY 性能评估工具 SimpleMAC GUI。 请从此页的下载部分下载...
CPX4 AC-PLC 评估套件 M01D1
该产品是一个 AC 电力线通信评估套件，用于开发和评估与瑞萨 PLC 调制解调器 IC R9A06G061 兼容的系统。 该产品是一个由模拟前端和 AC 电力线通信所需的控制 MCU 组成。
为了使用该产品评估 PLC 通信，则需要 PHY 性能评估工具 SimpleMAC GUI。 请从此页的下载部分下载 SimpleMAC...
智能锁解决方案开发套件
家居和建筑自动化行业对智能锁的需求正在快速增长。 这款智能门锁解决方案具有指纹控制和低功耗 Wi-Fi 功能，可提供方便的指纹识别，以及现场和远程开关锁功能。 该解决方案使用亚马逊网络服务（AWS）IoT 来操作并监控门的状态，例如开门或关门。 用户可以使用移动应用程序控制这些操作。
可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Longevity |
Carrier Type |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Pitch (mm) |
Pkg. Dimensions (mm) |
I/O Ports |
External Memory Bus (bit) |
DRAM I/F |
Temp. Range |
USB FS (host ch/device ch) |
SCI or UART (ch) |
SPI (ch) |
I2C (#) |
CAN (ch) |
SDHI (ch) |
PWM Output (pin#) |
12-Bit A/D Converter (ch) |
12-Bit D/A Converter (ch) |
Graphics LCD Controller |
Camera I/F (Parallel) |
2D Drawing Engine |
Security & Encryption |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
购买 / 样片 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | |||||||||||||||||||||||||||||
| N/A | Tray | 512 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.05192 | ||
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | 4.33819 | ||
| 2034 Dec | Tray | 512 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | 3.925 | ||
| N/A | Tray | 768 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | 4.50001 | ||
| 2034 Dec | Tray | 768 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | |||
| N/A | Tray | 1024 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.11085 | ||
| N/A | Tray | 1024 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | 4.6617 | ||
| 2034 Dec | Tray | 1024 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | |||
| N/A | Tray | 1024 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.23196 | ||
| N/A | Tray | 1024 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 5.02522 | ||
| 2034 Dec | Tray | 1024 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | |||
| 2034 Dec | Tray | 1024 | 0 | 256 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 4.75 | Get Samples, | |
| N/A | Tray | 1024 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | AES, TRNG | 3 | 5.94995 | ||
| N/A | Tray | 1536 | 32 | 640 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 16 | 2 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 6.65501 | ||
| 探讨中 | Tray | 2048 | 32 | 640 | 176 | LFQFP | 0.5 | 24 x 24 x 1.7 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 16 | 2 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 7.61736 | ||
| N/A | Tray | 1536 | 32 | 640 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 16 | 2 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 6.92218 | ||
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 5.69622 | ||
| N/A | Tray | 768 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | 5.77378 | ||
| N/A | Tray | 1024 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 6.43317 | ||
| N/A | Tray | 768 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 5.20637 | ||
| N/A | Tray | 2048 | 32 | 640 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | Yes | No | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.49311 | Get Samples, | |
| N/A | Tray | 1024 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | 5.975 | ||
| N/A | Tray | 2048 | 32 | 640 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 16 | 2 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.50225 | ||
| N/A | Tray | 2048 | 32 | 640 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | Yes | No | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 6.68834 | ||
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 5.09703 | ||
| N/A | Tray | 768 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.70559 | ||
| N/A | Tray | 768 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 5.27463 | ||
| 2039 Dec | Tray | 1536 | 32 | 640 | 176 | LFQFP | 0.5 | 24 x 24 x 1.7 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 16 | 2 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.48833 | ||
| N/A | Tray | 768 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 6.22092 | ||
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | |||
| N/A | Tray | 1536 | 32 | 640 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | Yes | No | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | |||
| 2034 Dec | Tray | 1536 | 32 | 640 | 176 | LFBGA | 0.8 | 13 x 13 x 1.4 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 16 | 2 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 7.13754 | Get Samples, | |
| N/A | Tray | 512 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.52868 | ||
| N/A | Tray | 1024 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.88213 | ||
| N/A | Tray | 512 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | AES, TRNG | 3 | 5.70559 | ||
| N/A | Tray | 1024 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 6.19122 | ||
| N/A | Tray | 1536 | 32 | 640 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 16 | 2 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 6.80174 | ||
| 2033 Dec | Tray | 2048 | 32 | 640 | 176 | LFBGA | 0.8 | 13 x 13 x 1.4 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 16 | 2 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | |||
| N/A | Tray | 1024 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | AES, TRNG | 3 | 6.05833 | ||
| N/A | Tray | 1024 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 6.114 | ||
| 2033 Dec | Tray | 2048 | 32 | 640 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 14 | 2 | 1 | 38 | 22 | 1 | Yes | No | 是 | No | 3 | 5.8 | ||
| 2033 Dec | Tray | 1536 | 32 | 640 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 14 | 2 | 1 | 38 | 22 | 1 | Yes | No | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 6.54505 | ||
| N/A | Tray | 1536 | 32 | 640 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | Yes | No | 是 | No | 3 | |||
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 4.075 | ||
| 2033 Dec | Tray | 512 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 0 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 4.52619 | ||
| 2034 Dec | Tray | 512 | 0 | 256 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | AES, TRNG | 3 | 4.97273 | ||
| N/A | Tray | 768 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.07049 | Get Samples, | |
| N/A | Tray | 768 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 4.62129 | ||
| 2033 Dec | Tray | 768 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | ( 1 / 1 ) | 11 | 14 | 13 | 2 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 4.64805 | ||
| 2033 Dec | Tray | 768 | 0 | 256 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | ( 1 / 1 ) | 13 | 16 | 15 | 2 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.09434 |
