MCK-RX26T 瑞萨适用于RX26T MCU产品群的灵活电机控制套件
MCK-RX26T 是一款便于评估使用永磁同步电机（无刷直流电机）的电机控制的开发套件。
通过使用本产品以及可从网站下载的样例程序和QE for Motor，即刻开始使用RX26T进行电机控制评估。
概览
描述

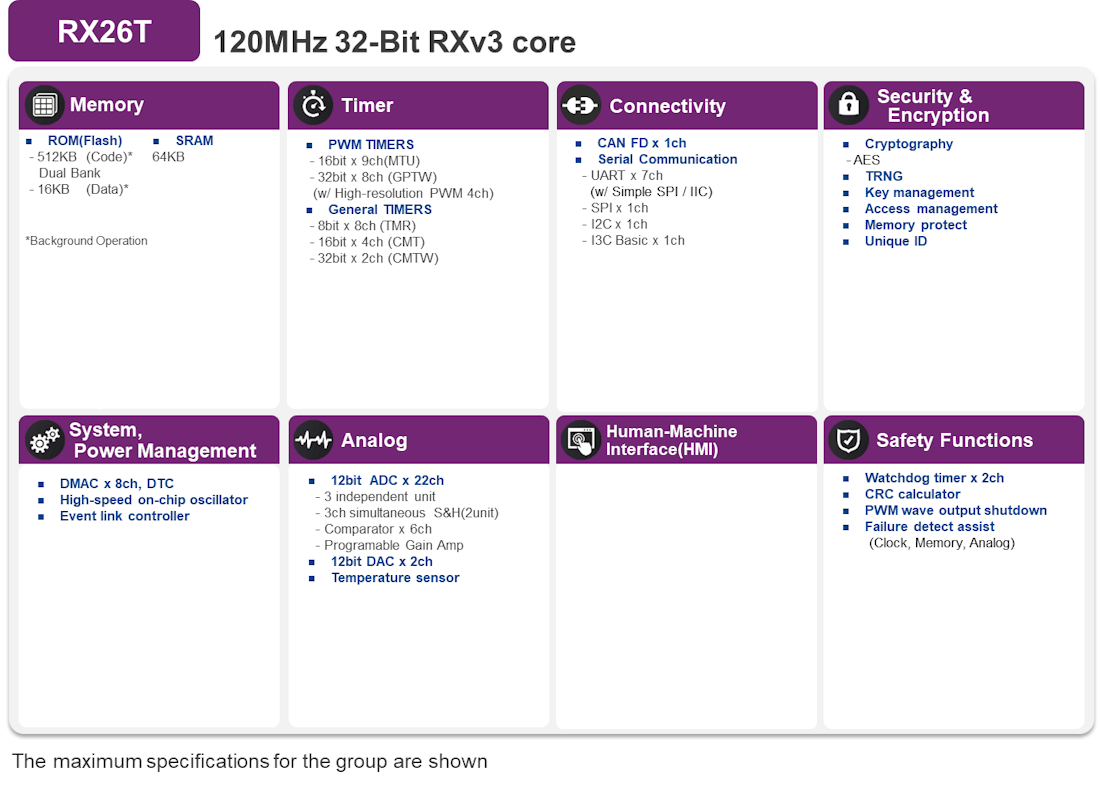

RX26T微控制器产品群是可在单芯片上实现磁场定向控制 (FOC)双电机控制和功率因数校正 (PFC) 控制的5V兼容产品。它搭载工作频率为120MHz的RX第三代CPU内核“RXv3内核”，通过可实现120MHz读取操作的高速闪存和三角函数运算单元（TFUv2）实现超高计算性能。定时器功能支持120MHz PWM（三相互补2ch+单相互补2ch），模拟功能配备3单元12位A/D转换器（2单元3通道同步采样和保持电路）。此外，它还搭载了保证振荡精度为±1.0%(–20℃≦Ta)的HOCO、数据闪存、单端PGA和比较器等，充实了小型QFN封装，有助于减少元件数量并节省空间。还有，它还配备了用于设备之间高速通信的CAN FD和用于与传感器实现高速通信的I3C Basic，从而可以在更短的时间内传输更多的数据。闪存采用双区配置，BGO/SWAP功能可在不中断系统的情况下进行固件更新。配备集成密钥管理功能和加密引擎的Trusted Secure IP-Lite，可降低系统中信息泄露的风险。
特性
- 搭载120MHz的CPU RXv3 内核 (721CoreMark)
- 单精度 FPU、可加速中断响应的寄存器批量保存功能、三角运算加速器 (TFUv2)
- 工作温度 -40-105°C
- 最大512KB闪存（120MHz读取访问，双区功能）、SRAM最大64KB
- 可以像EEPROM那样存储数据的16KB数据闪存
- 12 位A/D转换器×3单元、12位D/A转换器×2ch
- 比较器×6ch、单端PGA×6ch
- 120 MHz PWM
- 3相互补×2ch、5相互补×1ch、单相互补×8ch
- 高分辨率PWM×4ch，最小可以260ps（皮秒）进行调整
- 精度为+/-1.0%的高速片上振荡器
- Trusted Secure IP-Lite (AES/TRNG)
- CAN FD (符合ISO 11898-1:2015 、最大5Mbps）
- I3C Basic（最大10Mbps）

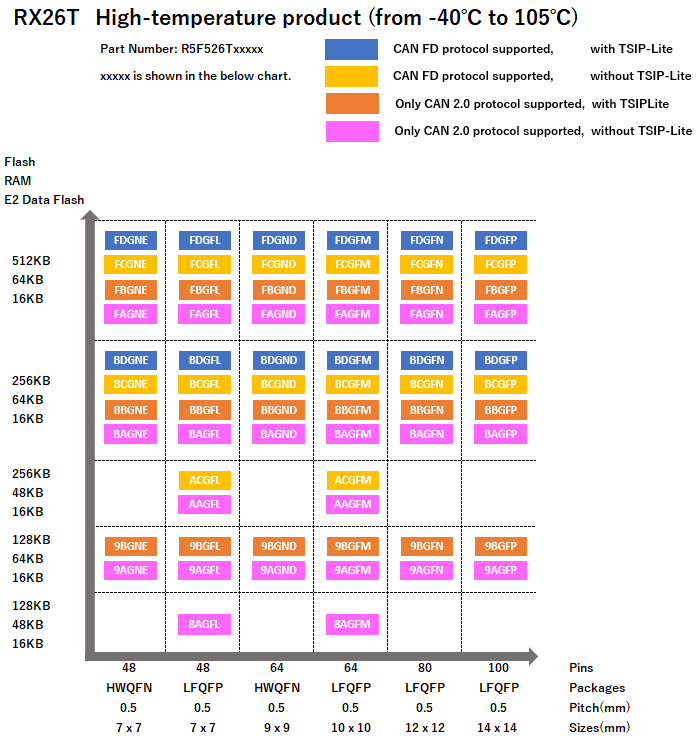

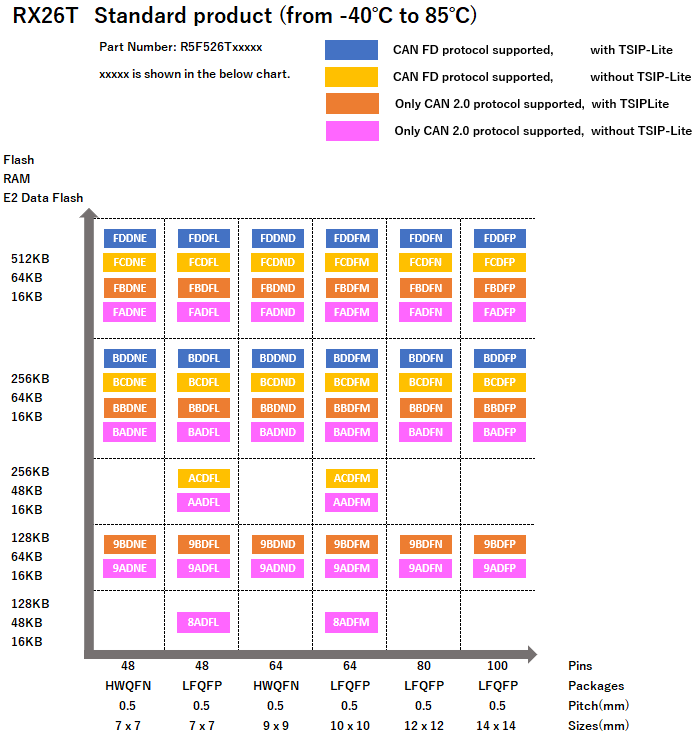

产品对比
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| e² studio Partner OS Aware Debugging Standard debugger in e2 studio for supporting task level debugging of real-time OS applications.
|
Plug-in, OS Aware Debugging, Etc. | 瑞萨电子 |
| Simulator for CS+ of RX Family Simulator for CS+ of RX Family [Support IDE : CS+] (Note: This product is included in Compiler Package and is not available separately.)
|
Simulator | 瑞萨电子 |
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| CS+ Partner OS Aware Debugging Plug-in Features for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78]
|
Plug-in, OS Aware Debugging, Etc. | 瑞萨电子 |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | 瑞萨电子 |
| External Flash Definition Editor Utility for downloading data to external flash memory (for emulators)
|
Other Emulators and Options | 瑞萨电子 |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| Renesas Flash Programmer (Programming GUI) 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| QE for Motor: Development Assistance Tool for Motor Applications The development assistance tool that supports the development of motor software for MCUs. It allows to configure motor middleware and drivers easily, and tune and analyze motors with Renesas Motor Workbench. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
| Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
|
Security / Crypto | 瑞萨电子 |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | 瑞萨电子 |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | 瑞萨电子 |
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | 瑞萨电子 |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | 瑞萨电子 |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | 瑞萨电子 |
| Simulator for e² studio of RX Family Simulator for e² studio of RX Family [Support IDE : e² studio] (Note: This product is included in the Renesas IDE "e² studio" and is not available separately.)
|
Simulator | 瑞萨电子 |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | 瑞萨电子 |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | 瑞萨电子 |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | 瑞萨电子 |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
| I²C Serial EEPROM Driver Device Drivers for I²C Bus Serial EEPROM R1EX24xxx Series, R1EV24xxx Series and HN58X24xxx Series
|
Serial Memory | 瑞萨电子 |
| SPI Serial EEPROM Driver Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series
|
Serial Memory | 瑞萨电子 |
| Firmware Update module By using the firmware update module, users can easily incorporate firmware update functionality and secure boot functionality into their applications.
|
Security / Crypto | 瑞萨电子 |
| RX Family Renesas FreeRTOS FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
|
FreeRTOS | 瑞萨电子 |
| JPEG Encode/Decode Software Library for RX Family JPEG Encode/Decode Software Library that comprises the JPEG Decoder and the JPEG Encoder
|
Imaging | 瑞萨电子 |
|
32 items
|
||
样例程序
开发板与套件
MCB-RX26T Type A / RX26T MCU产品群的CPU板
本产品是配备RX26T 的电机控制CPU板。 通过与对应的逆变板组合使用，可以简单地实现使用RX26T的电机控制。
通过将 PC 和 CPU 板进行电气隔离的通信板，实现安全的电机控制评估和调试工作。
- 支持的逆变板（套件）
MCI-LV-1 (P/N: RTK0EM0000S04020BJ) - 支持的通信板
MCB-RX26T Type B / CPU Board for RX26T MCU Group with Trusted Secure IP (TSIP-Lite)
本产品是配备RX26T 的电机控制CPU板。 通过与对应的逆变板组合使用，可以简单地实现使用RX26T的电机控制。
通过将 PC 和 CPU 板进行电气隔离的通信板，实现安全的电机控制评估和调试工作。
- 支持的逆变板（套件）
MCI-LV-1 (P/N: RTK0EM0000S04020BJ) - 支持的通信板
MCB-RX26T Type C / CPU Board for RX26T MCU Group
This product is a CPU board for motor control equipped with RX26T (P/N:R5F526TACDFM). Motor control using RX26T can be easily realized by using it in combination with a supported inverter board.
MC-COM 瑞萨灵活电机控制通信板
特色文件:
Dual Motor Control with Interleaved PFC for Air Conditioner Outdoor Unit Reference Design
Renesas' Air Conditioner Outdoor Unit (ODU) reference design is a total solution for controlling outdoor air conditioning units. It is used in combination with the...
